Work Procedure

Starter Operation Counter Clear is a function of ECM to erase the starter motor operation counter. it must be performed when starter motor is replaced.

1. ERASE STARTER OPERATION COUNTER

   With CONSULT

   1. Turn ignition switch ON.
   2. Select "STRT OPRTN CNTR CLEAR" in "WORK SUPPORT" mode of "ENGINE" using CONSULT.
   3. Touch "CLEAR" and erase starter operation counter.

   Without CONSULT

   NOTE:

   • It is better to count the time accurately with a clock.
   • It is impossible to switch the diagnostic mode when an accelerator pedal position sensor circuit has a malfunction.

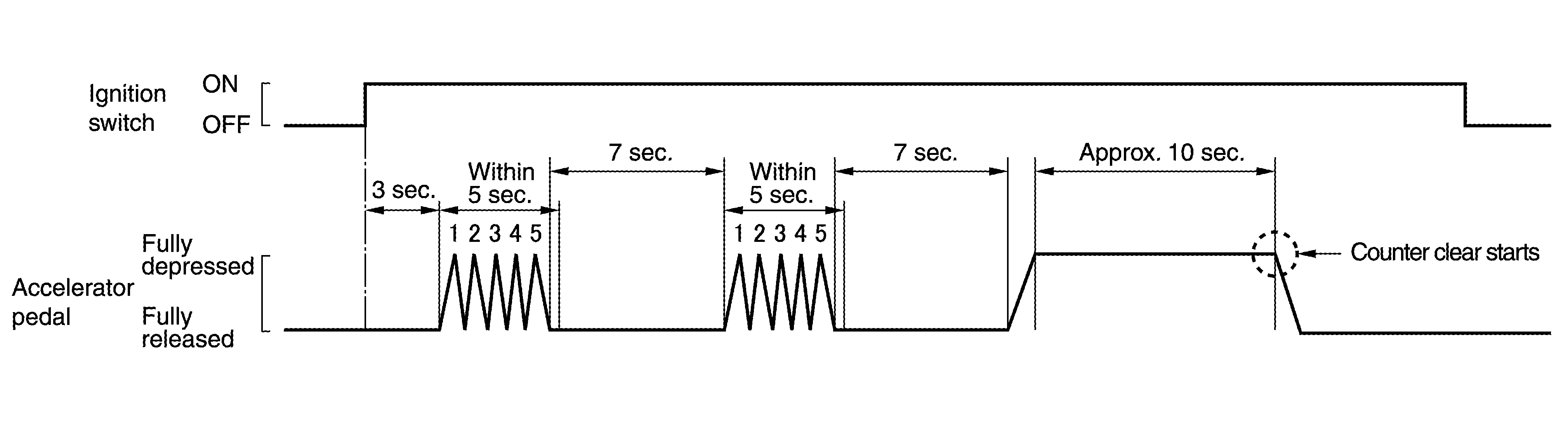

   1. Turn ignition switch OFF and wait at least 10 seconds.
   2. Confirm that accelerator pedal is fully released, turn ignition switch ON and wait 3 seconds.
   3. Repeat the following procedure quickly five times within 5 seconds.
      • Fully depress the accelerator pedal.
      • Fully release the accelerator pedal.
   4. Wait 7 seconds, repeat the following procedure quickly five times within 5 seconds.
      • Fully depress the accelerator pedal.
      • Fully release the accelerator pedal.
   5. Wait 7 seconds, fully depress the accelerator pedal and keep it for approx. 10 seconds.
   6. Fully release the accelerator pedal and turn the ignition switch OFF.

      Courtesy of NISSAN NORTH AMERICA, INC.

   INSPECTION END
