Individual Operation

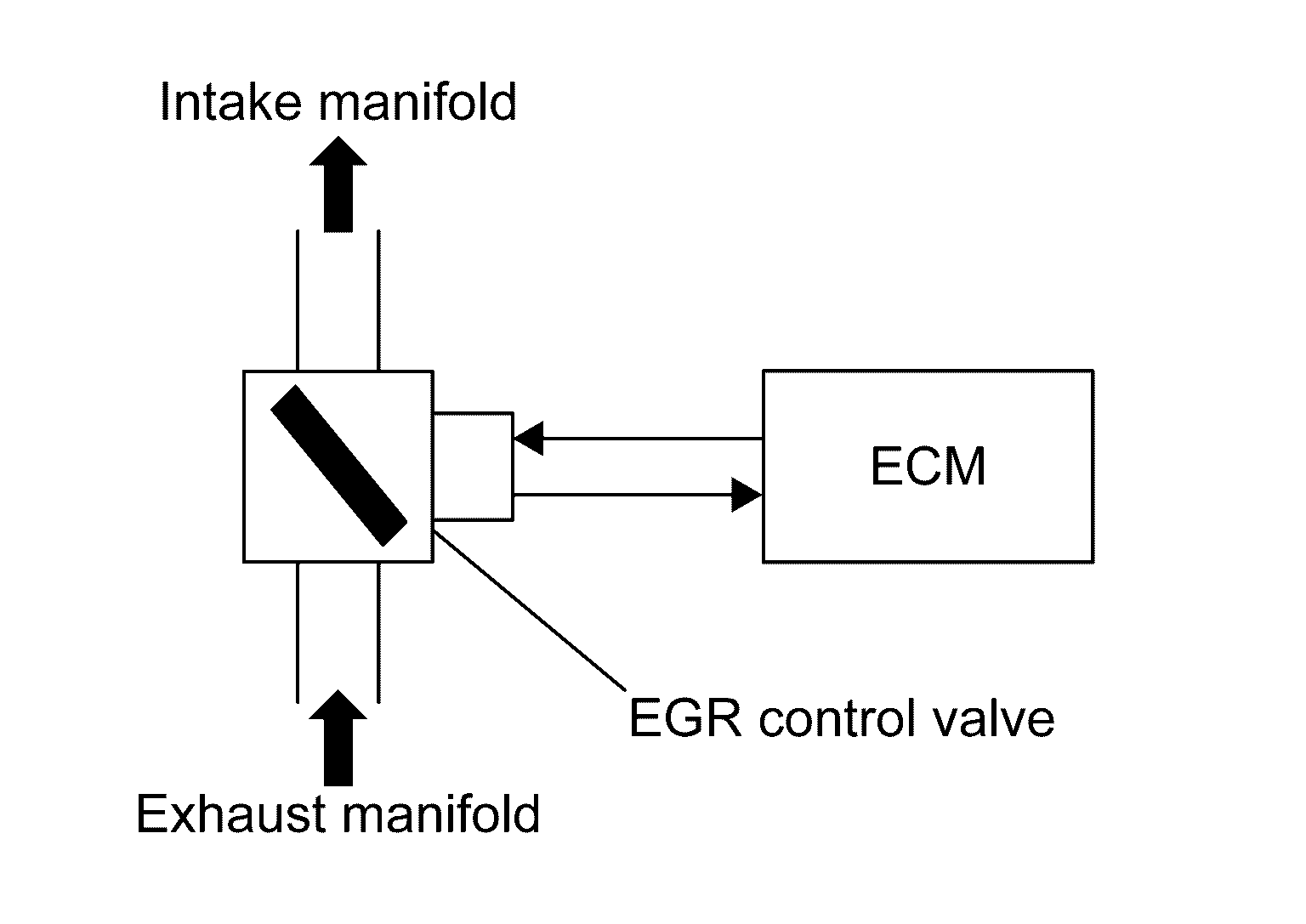

EGR Volume Control Position Sensor
The control position sensor uses a permanent magnet and semiconductor element to detect the valve shaft angle and transmit a signal to the ECM. In this way, the ECM transmits a signal for controlling the valve position to the DC motor according to the driving conditions.
