Component Description

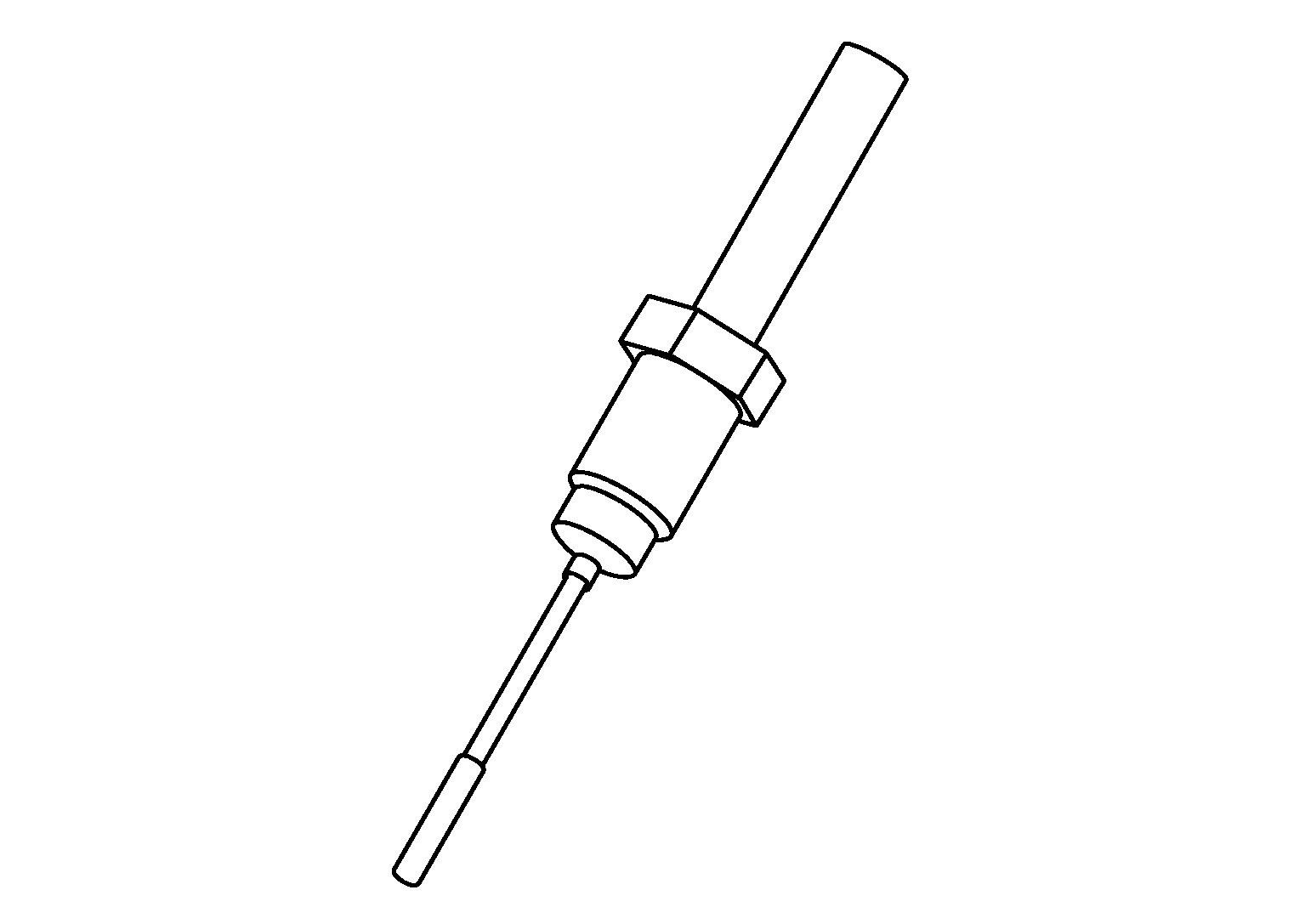

Exhaust gas temperature sensor (EGT sensor) is installed exhaust manifold. The sensor uses a thermistor which is sensitive to the change in temperature. Electrical resistance of the thermistor decreases in response to the temperature rises.
|
Exhaust gas temperature [ deg. C (deg. F)] |
Voltage* (V) |
Resistance (kOhms) |
|
100 (212) |
4.74 |
18.25 |
|
200 (392) |
4.00 |
4.00 |
|
400 (752) |
1.97 |
0.65 |
|
600 (1112) |
0.86 |
0.21 |
*: These data are reference values on the diagnosis tool.
