Component Inspection

1. Turn ignition switch OFF.
2. Disconnect EOT sensor harness connector.
3. Remove EOT sensor. Refer to Exploded View .

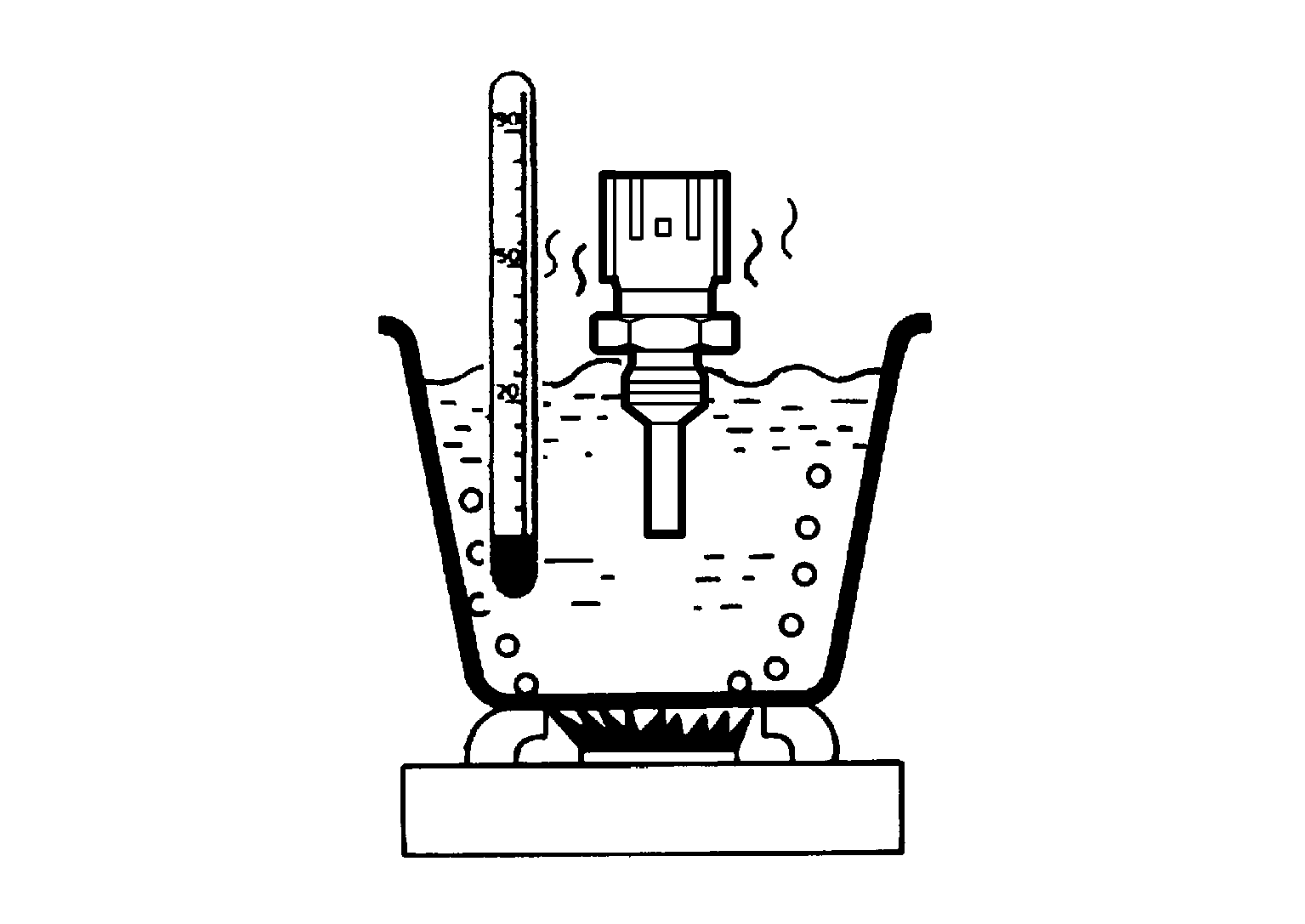

4. Check the resistance between EOT sensor terminals by heating with hot water as shown in the figure, below.

   Courtesy of NISSAN NORTH AMERICA, INC.

   EOT sensor		Condition		Resistance
   Terminal
   1	2	Temperature [ deg. C (deg. F)]	20 (68)	2.37 - 2.63 kOhms
   			50 (122)	0.68 - 1.00 kOhms
   			90 (194)	0.236 - 0.260 kOhms

Is the inspection result normal?

YES

INSPECTION END

NO

Replace EOT sensor. Refer to Exploded View .
