Component Inspection

1. Turn ignition switch OFF.
2. Remove fuel injector relays. Refer to Component Location .
3. Check the continuity between fuel injector relay terminals as per the following conditions.

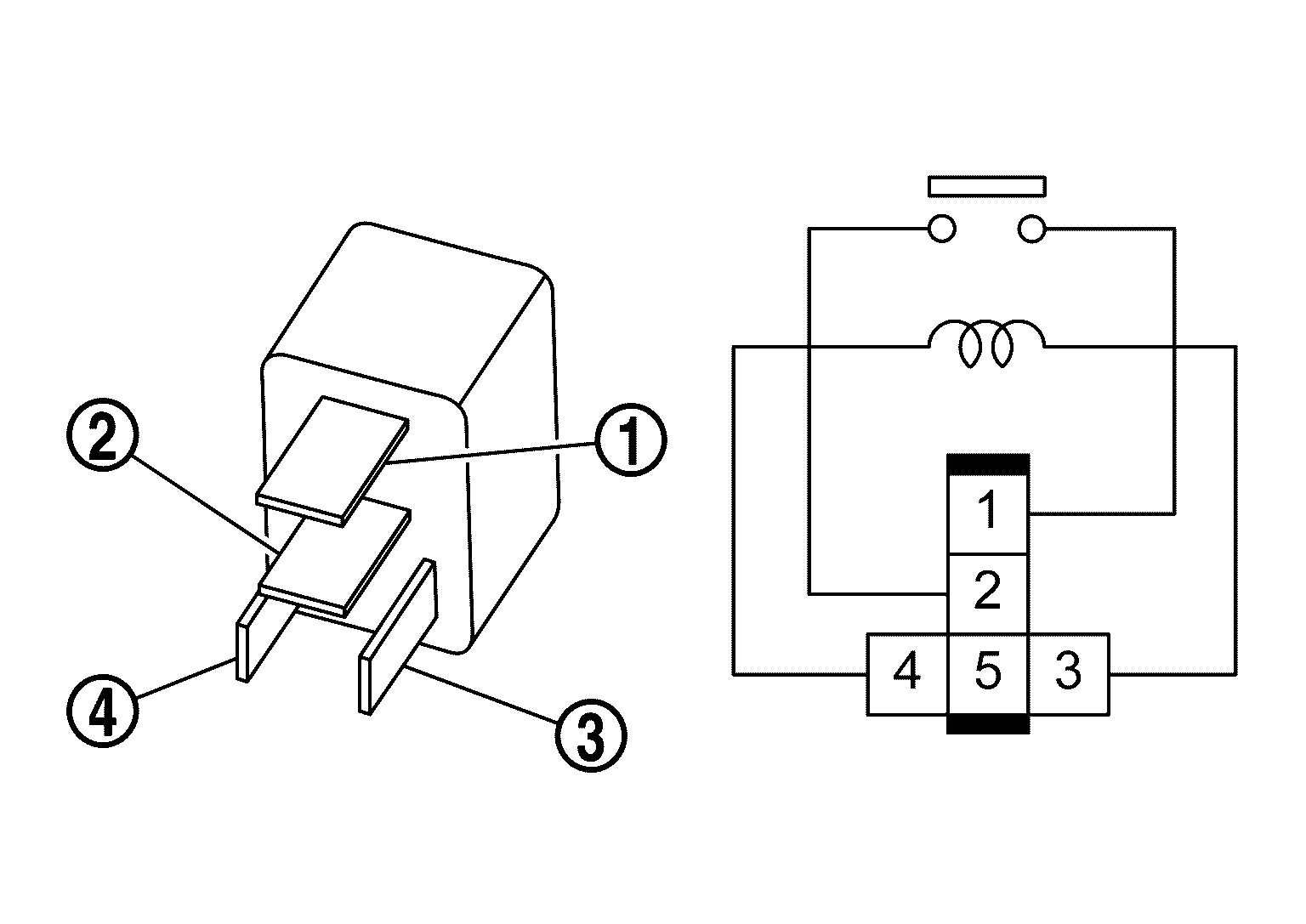

   Direct Fuel Injector Relay 1

   Courtesy of NISSAN NORTH AMERICA, INC.

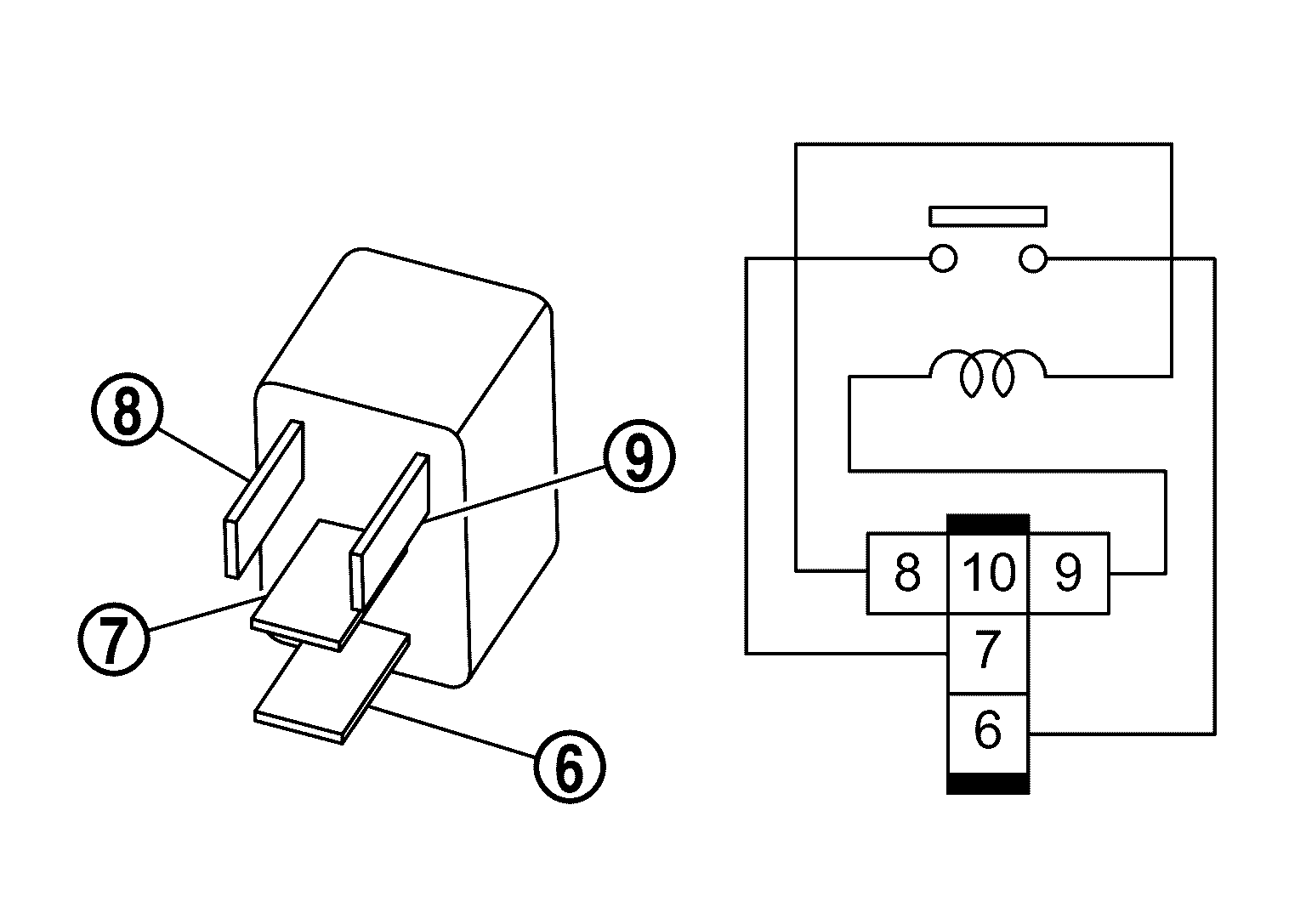

   Direct Fuel Injector Relay 2

   Courtesy of NISSAN NORTH AMERICA, INC.

   Fuel injector relay		Condition	Continuity
   +	-
   Terminal
   1	2	12 V direct current supply between terminals 3 and 4	Existed
   		No current supply	Not existed
   6	7	12 V direct current supply between terminals 8 and 9	Existed
   		No current supply	Not existed

Is the inspection result normal?

YES

INSPECTION END

NO

Replace fuel injector relay. Refer to Component Location .
