Component Function Check

With CONSULT

1. Start engine.
2. Select "FUEL PRES SEN V" in "DATA MONITOR" mode of "ENGINE" using CONSULT and check the indication as per the following conditions.

   Monitor item	Condition	Indication
   FUEL PRES SEN V	At idle	0.820 - 1, 140 V
   	Revving engine up to 4, 000 RPM quickly.	0.820 - 2, 900 V

Without CONSULT

1. Start engine.
2. Check the voltage between ECM terminals as per the following conditions.

   ECM			Condition	Voltage
   Connector	+	-
   	Terminal

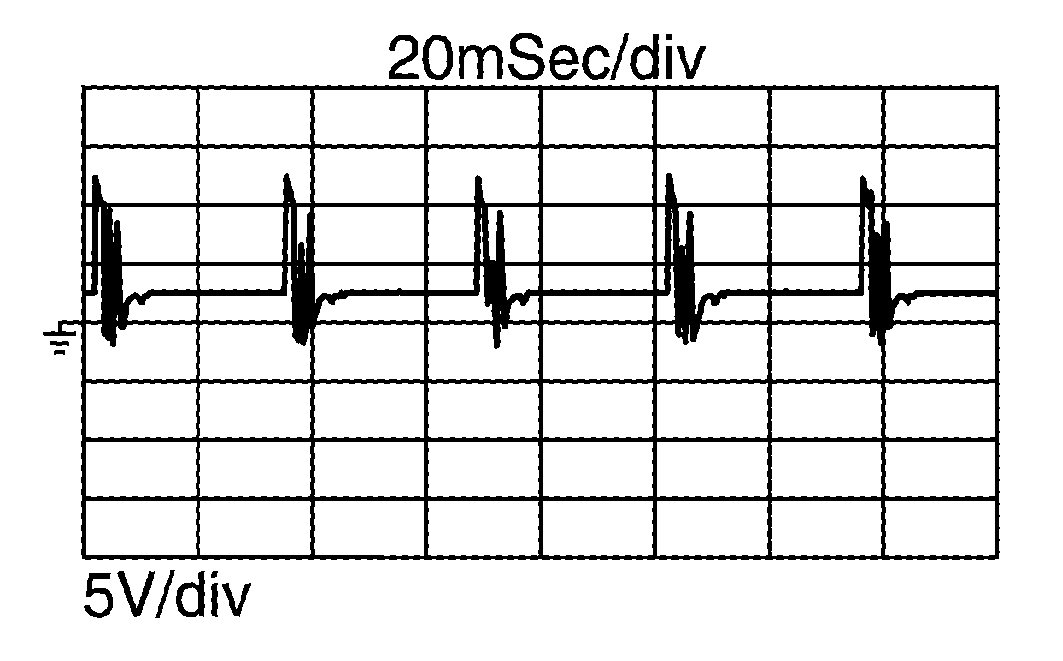

   F25	67	68	[Engine is running] Warm-up condition Idle speed NOTE: The pulse cycle changes depending on RPM at idle.	Courtesy of NISSAN NORTH AMERICA, INC.

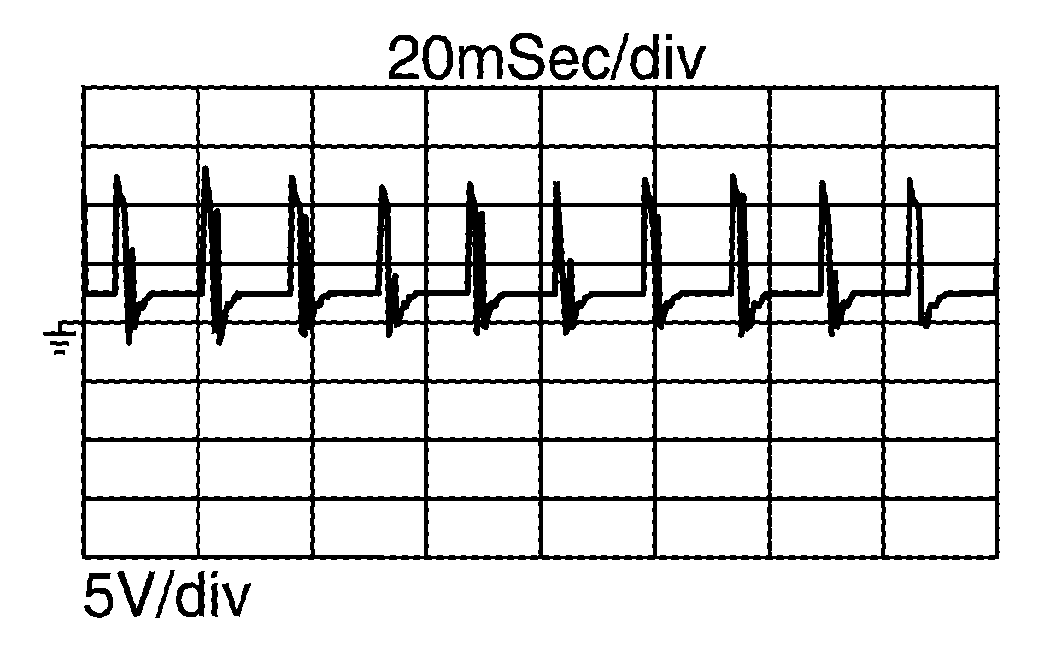

   			[Engine is running] Warm-up condition Engine speed: 2, 000 RPM	Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

INSPECTION END

NO

Refer to Diagnosis Procedure .
