Component Inspection
- INSPECTION START
Will CONSULT be used?
YES
GO TO 2.
NO
GO TO 3.
- CHECK HEATED OXYGEN SENSOR 2-1
With CONSULT
- Select "DATA MONITOR" mode of "ENGINE" using CONSULT.
- Start engine and warm it up to the normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.
- Restart engine and keep the engine speed between 3, 500 and 4, 000 RPM for at least 1 minute under no load.
- Let engine idle for 1 minute.
- Select "FUEL INJECTION" in "ACTIVE TEST" mode of "ENGINE", and select "HO2S2 (B1)" as the monitor item with CONSULT.

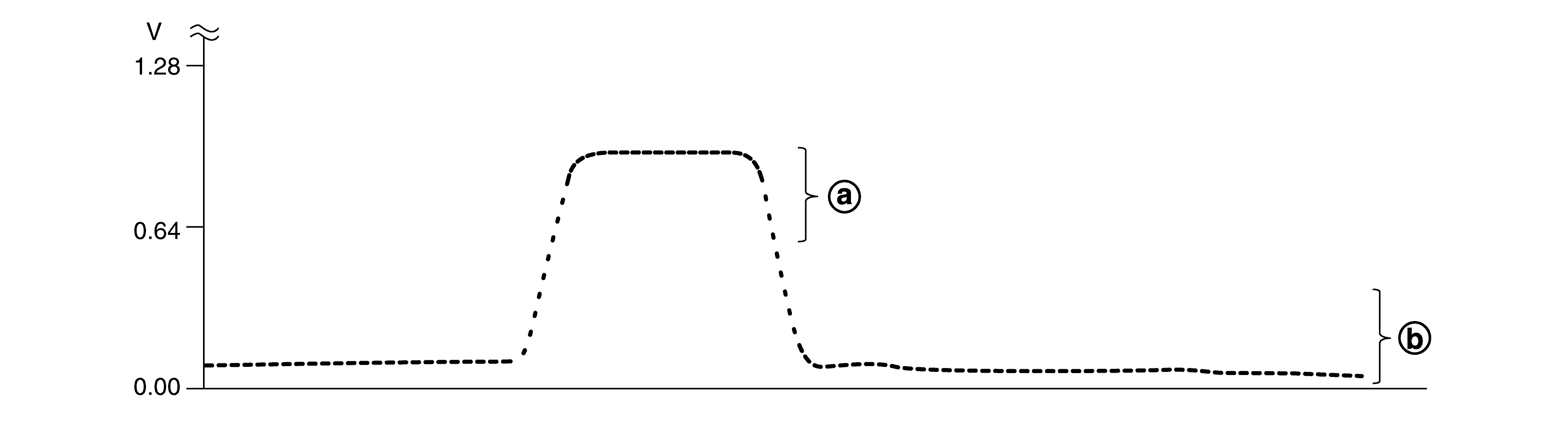

- Check "HO2S2 (B1)" at idle speed when adjusting "FUEL INJECTION" to +/- 25%.
: The voltage should be above 0.73 V at least on time.
: The voltage should be below 0.18 V at least on time.
"HO2S2 (B1)" should be above 0.73 V at least once when the "FUEL INJECTION" is +25%.
"HO2S2 (B1)" should be below 0.18 V at least once when the "FUEL INJECTION" is +25%.
Is the inspection result normal?
YES
INSPECTION END
NO
GO TO 6.
- CHECK HEATED OXYGEN SENSOR 2-2
Without CONSULT
- Start engine and warm it up to the normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.
- Restart engine and keep the engine speed between 3, 500 and 4, 000 RPM for at least 1 minute under no load.
- Let engine idle for 1 minute.
- Check the voltage between ECM harness connector terminals under the following conditions.
ECM
Condition
Voltage
Connector
+
-
Terminal
F25
77
76
Revving up to 4, 000 RPM quickly under no load at least 10 times. (Depress and release the accelerator pedal as quickly as possible.)
The voltage should be above 0.73 V at least once during this procedure.
The voltage should be below 0.18 V at least once during this procedure.
Is the inspection result normal?
YES
INSPECTION END
NO
GO TO 4.
- CHECK HEATED OXYGEN SENSOR 2-3
Check the voltage between ECM harness connector terminals under the following conditions.
ECM
Condition
Voltage
Connector
+
-
Terminal
F25
77
76
Keeping engine at idle for 10 minutes.
The voltage should be above 0.73 V at least once during this procedure.
The voltage should be below 0.18 V at least once during this procedure.
Is the inspection result normal?
YES
INSPECTION END
NO
GO TO 5.
- CHECK HEATED OXYGEN SENSOR 2-4
Check the voltage between ECM harness connector terminals under the following conditions.
CAUTION: Always drive vehicle at a safe speed.ECM
Condition
Voltage
Connector
+
-
Terminal
F25
77
76
Coasting from 80 km/h (50 MPH) in D position (CVT) or 4th position (M/T).
The voltage should be above 0.73 V at least once during this procedure.
The voltage should be below 0.18 V at least once during this procedure.
Is the inspection result normal?
YES
INSPECTION END
NO
GO TO 6.
- REPLACE HEATED OXYGEN SENSOR 2
Replace heated oxygen sensor 2. Refer to Exploded View .
CAUTION:- Discard any heated oxygen sensor which has been dropped from a height of more than 0.5 m (19.7 in) onto a hard surface such as a concrete floor; use a new one.
- Before installing new oxygen sensor, clean exhaust system threads.
INSPECTION END
