Component Inspection

1. Turn ignition switch OFF.
2. Loosen the fixing bolt of the sensor.
3. Disconnect intake camshaft position sensor harness connector.
4. Remove the sensor.

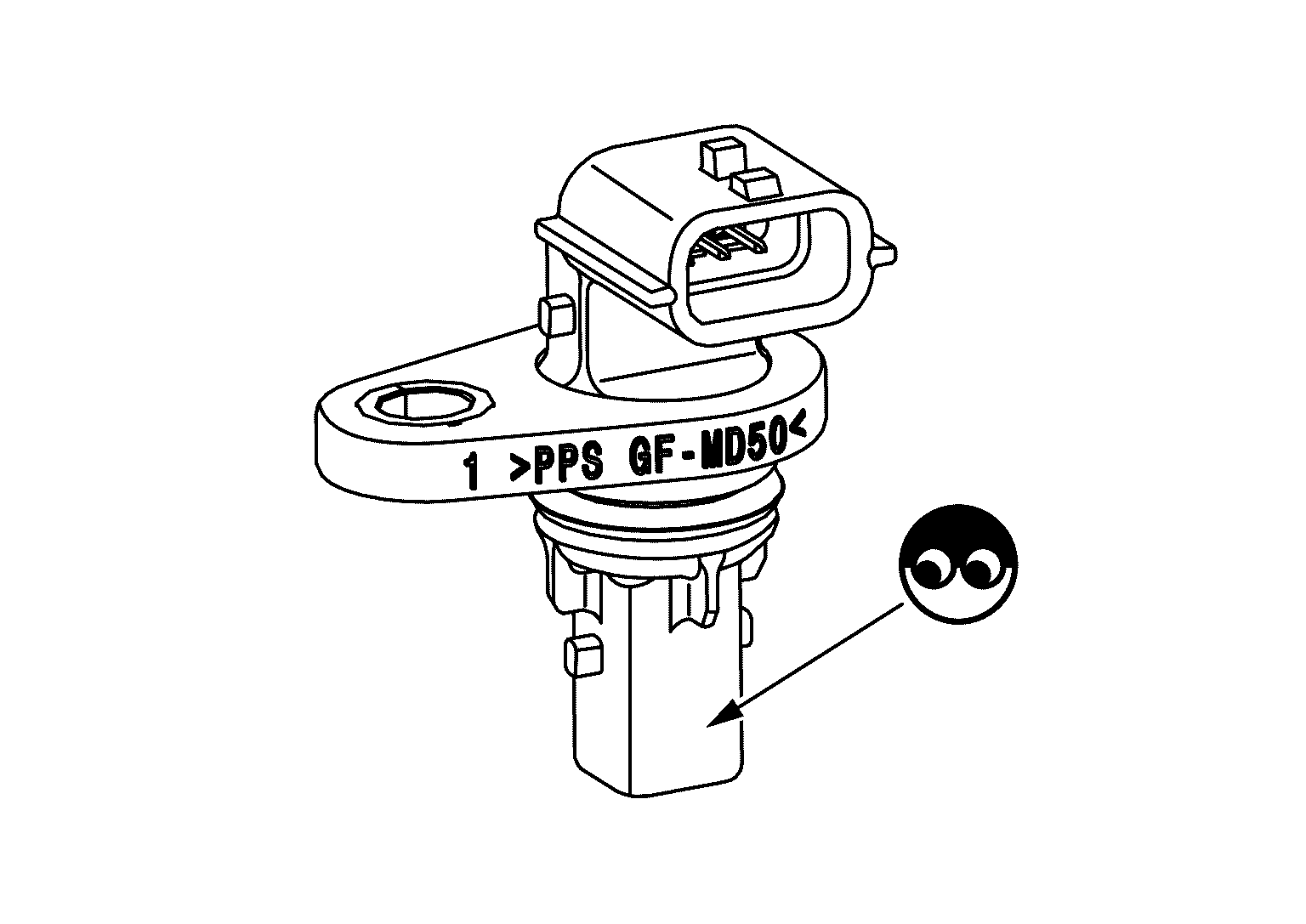

5. Visually check the sensor for chipping.

   Courtesy of NISSAN NORTH AMERICA, INC.

Is the inspection result normal?

YES

GO TO 2.

NO

Replace intake camshaft position sensor. Refer to Exploded View .

Check resistance intake camshaft position sensor terminals as follows.

Is the inspection result normal?

YES

INSPECTION END

NO

Replace intake camshaft position sensor. Refer to Exploded View .
