Accelerator Control
Unit: mm (in)
Courtesy of NISSAN NORTH AMERICA, INC.

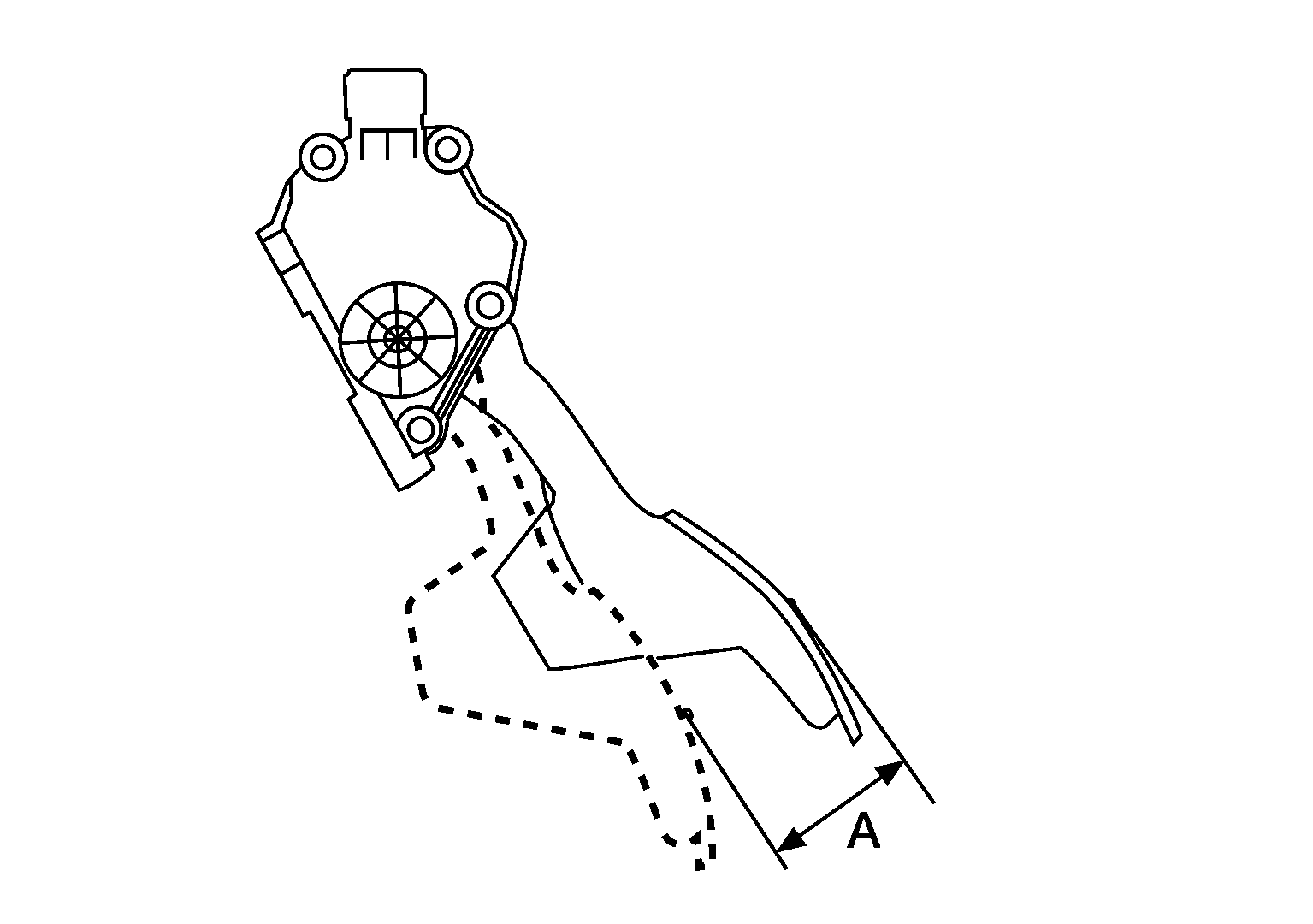

Accelerator pedal stroke (A)
53.7 --56.7 (2.11 -- 2.23)
