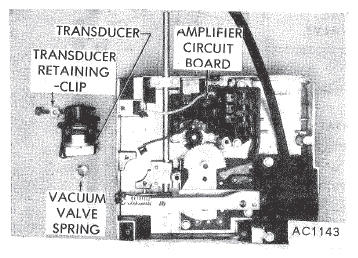

Programmer Component Replacement: Transducer
Identify two vacuum hoses and ports, and two electrical leads and terminals on transducer to ensure correct reassembly, then disconnect hoses and leads. Remove mounting screw and retaining clip and lift transducer out. Install transducer by reversing removal procedure.
