Control Valve Assembly

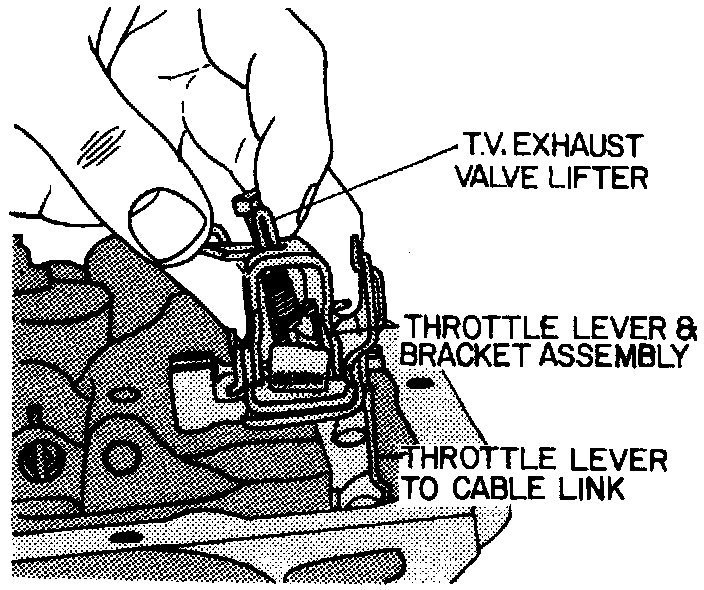

1. Remove throttle lever and bracket assembly, see image.

2. Remove control valve assembly retaining bolts, then disconnect the manual valve. Do not drop manual valve, since damage to valve may result.

3. Remove the control valve assembly, noting the location of the check ball on the spacer plate. Remove the check ball.
