BCM System, Part I: Identification

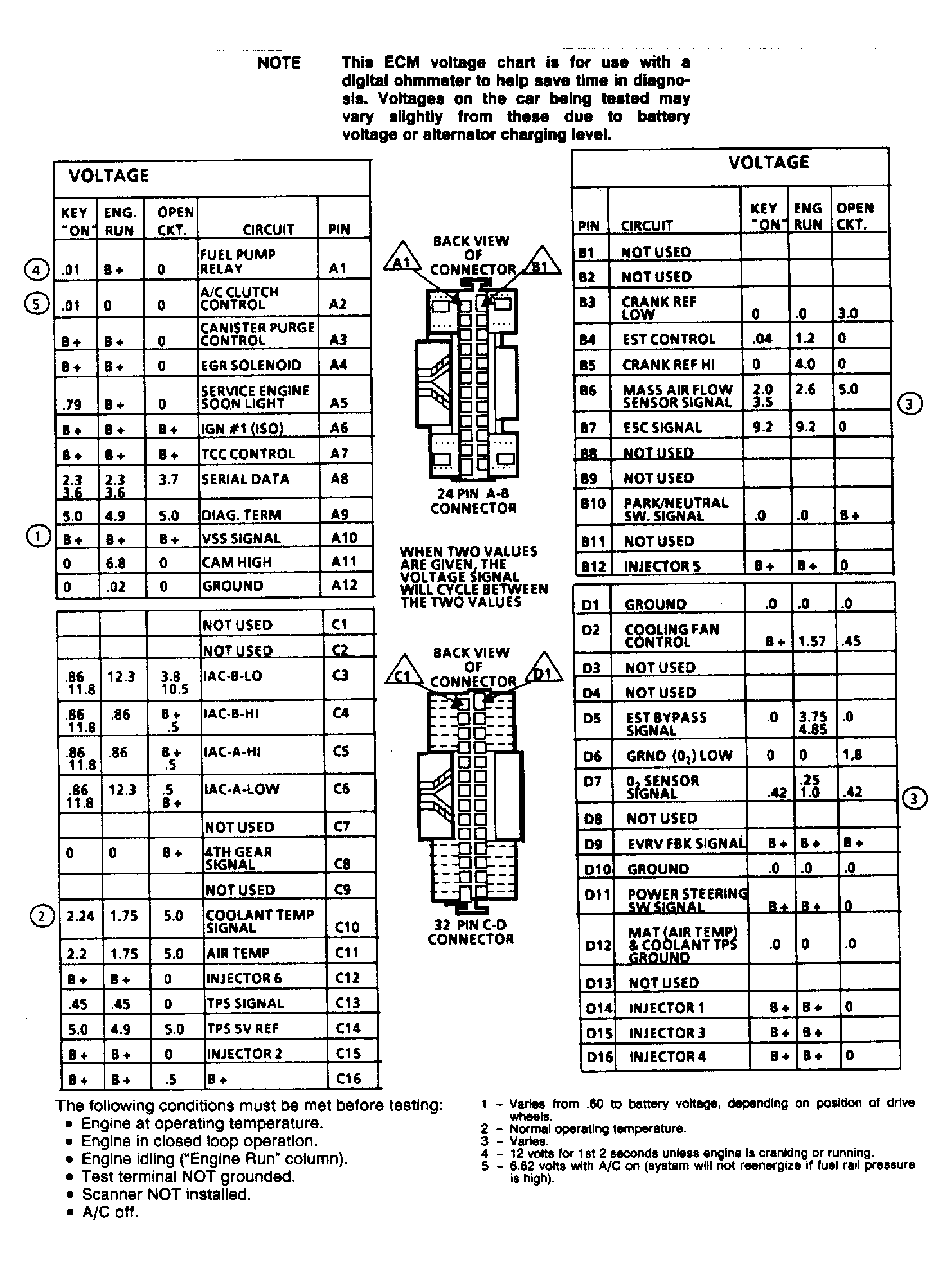

Fig 1: ECM Terminal Identification

The following conditions must be met before testing:

• Engine at operating temperature.
• Engine in closed loop operation.
• Engine idling ("Engine Run" column).
• Test terminal NOT grounded.
• Scanner NOT installed.
• A/C off.
