Climate Control System Check (TORONADO)

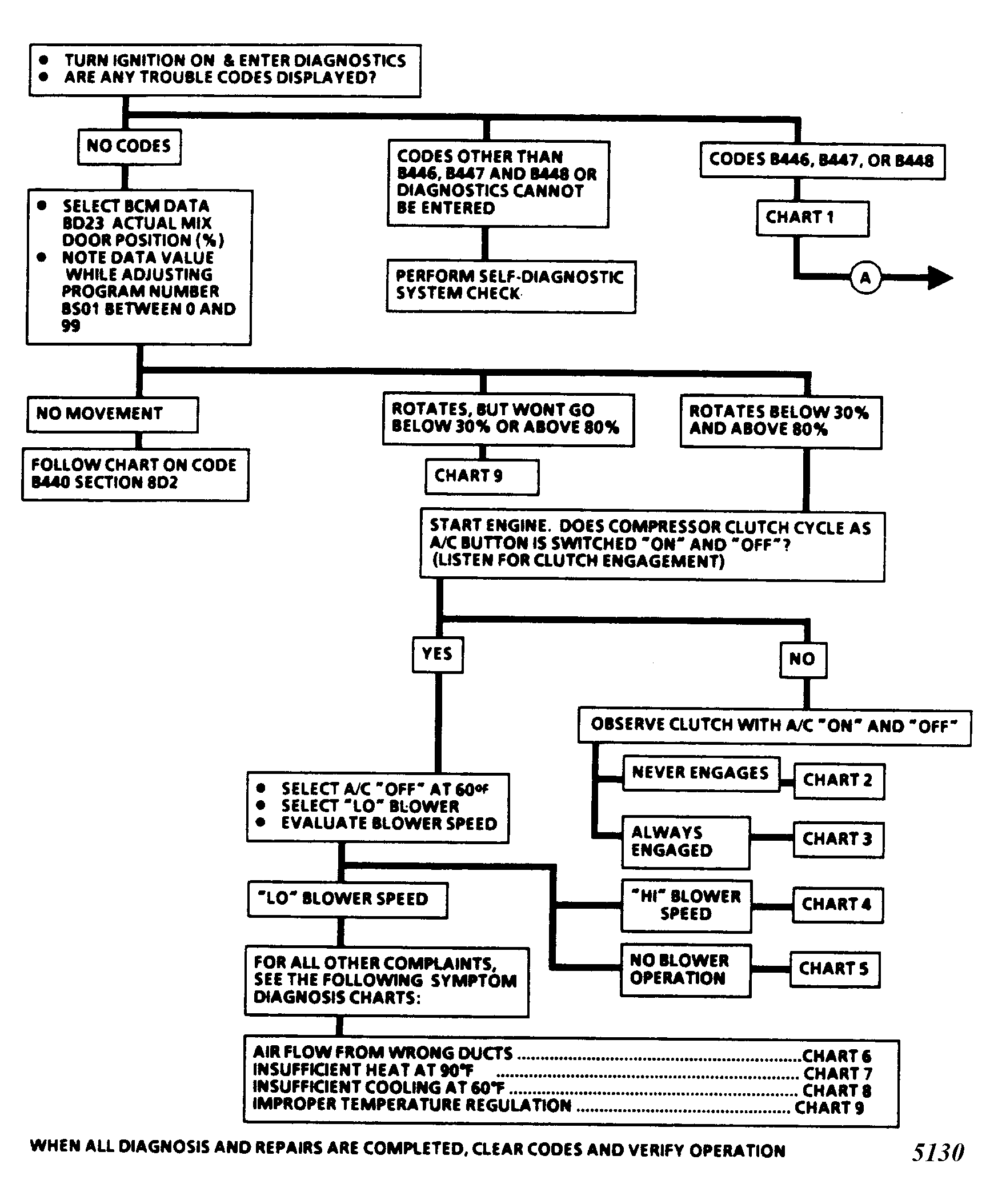

Fig 1: Climate Control System Check (Toronado)

G5130

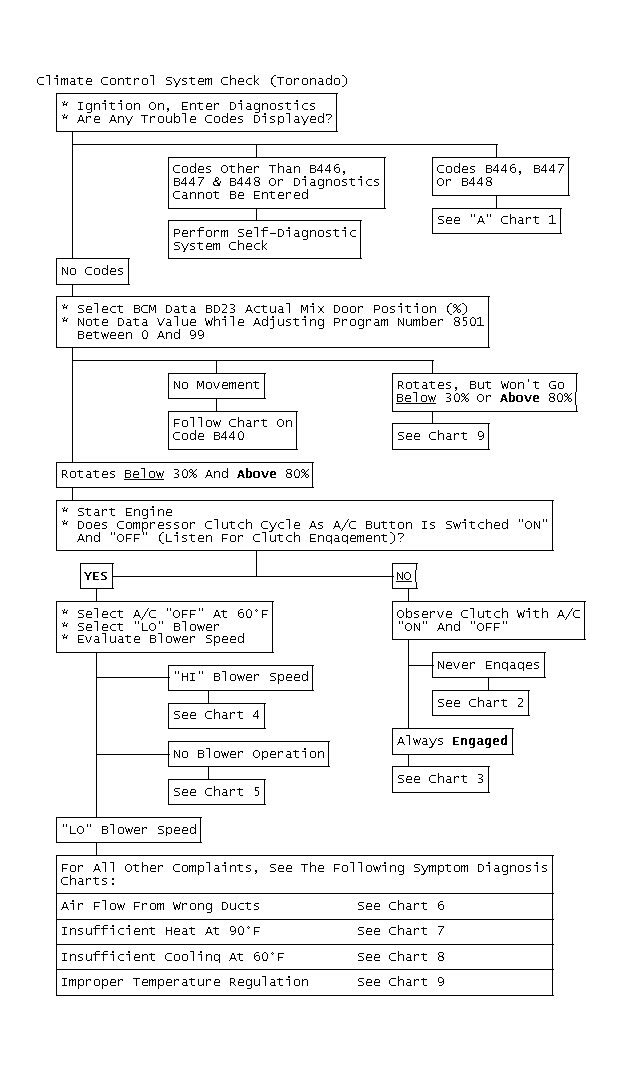

Fig 2: Climate Control System Check (Toronado)

GB0048394
