Code B672, Cruise Vent Solenoid Circuit Problem: Notes

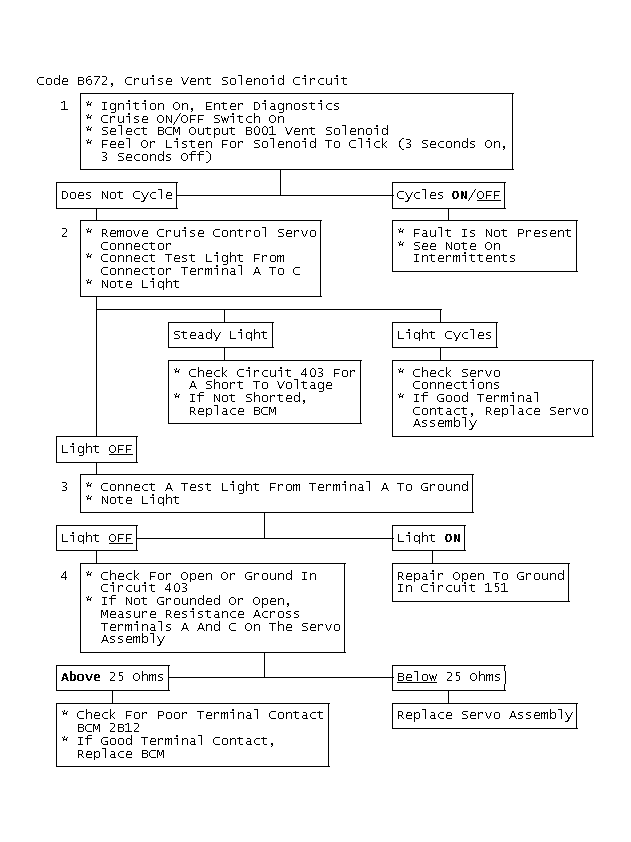

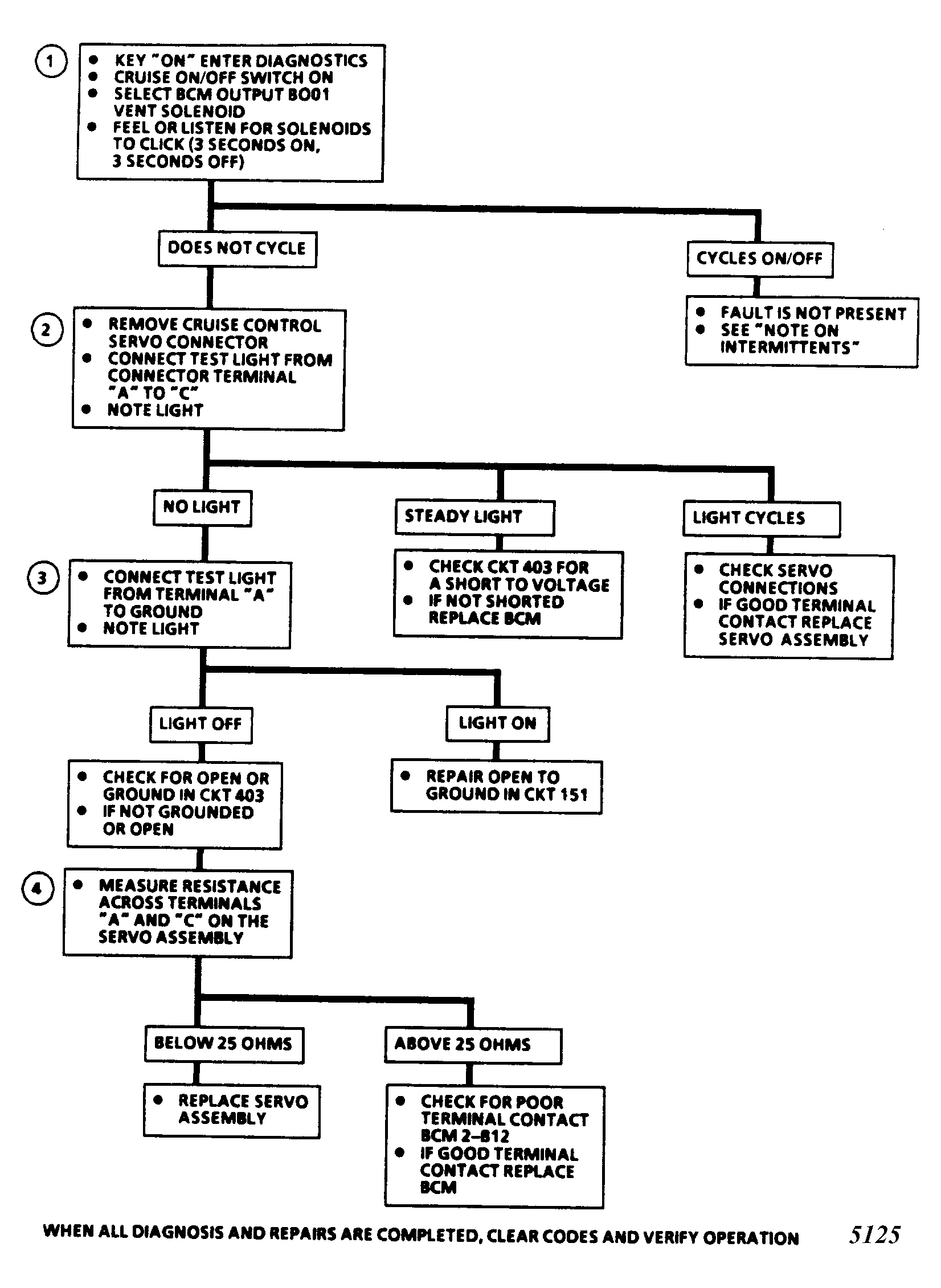

Fig 1: Code B672, Cruise Vent Solenoid Circuit Problem

Fig 2: Code B672, Cruise Vent Solenoid Circuit

Fig 3: Code B672, Schematic

The cruise control vent solenoid receives a rapidly switched voltage signal from the BCM to control the amount of time the solenoid is energized. During the time the output is "HIGH", the solenoid is energized and vacuum is not vented (or it is trapped) from the servo.

Code B672 will set if the cruise is on, the brake is not depressed, and the BCM output is "HIGH" when it should be "LOW"; or "LOW" when it should be "HIGH". Under these conditions, the BCM will disable the cruise control until the BCM sees the proper output signal. These determinations are made on the circuitry internal to the BCM and may not affect the "HIGH" or "LOW" displayed during "Service Mode"; as they only indicate what the BCM wants the output signal at, not what it is actually at. An output display of "LOW" means circuit 403 should be de-energized (vent solenoid off) and an output display of "HIGH" means circuit 403 should be energized (vent solenoid on).

Circuit 403 will be "HIGH" when the solenoid is energized, as the BCM is providing voltage to the vent solenoid which has its own full-time ground. Circuit 403 will be "LOW" when the solenoid is de-energized, as the BCM takes away the voltage feed to the solenoid.

1. BCM output BO01 cycles the vent solenoid. The "HIGH" and "LOW" refer to the state of the voltage at the BCM.
2. Checks to see if fault is due to servo or circuit.
3. Checks to see if fault is due to open ground circuit or control circuit, including servo solenoid.
4. Checks to see if fault is shorted servo or control circuit.
