Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/C Programmer (Tempmatic) | Behind right side of dash. |

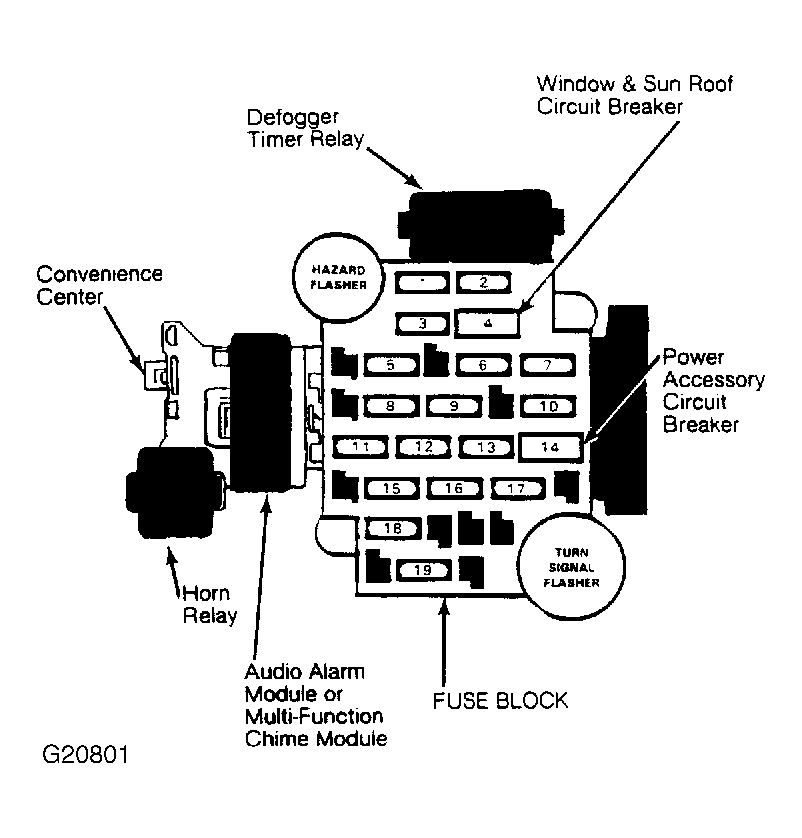

| Audio Alarm Module | On convenience center. See Figure. |
| Auto. Door Lock Cont. (Estate Wagon) | Behind top of right kick panel. |
| A/C Blower/Clutch Control Module | On top of blower plenum. |
| Cruise Control Module | Under left side of dash, to left of steering column. |

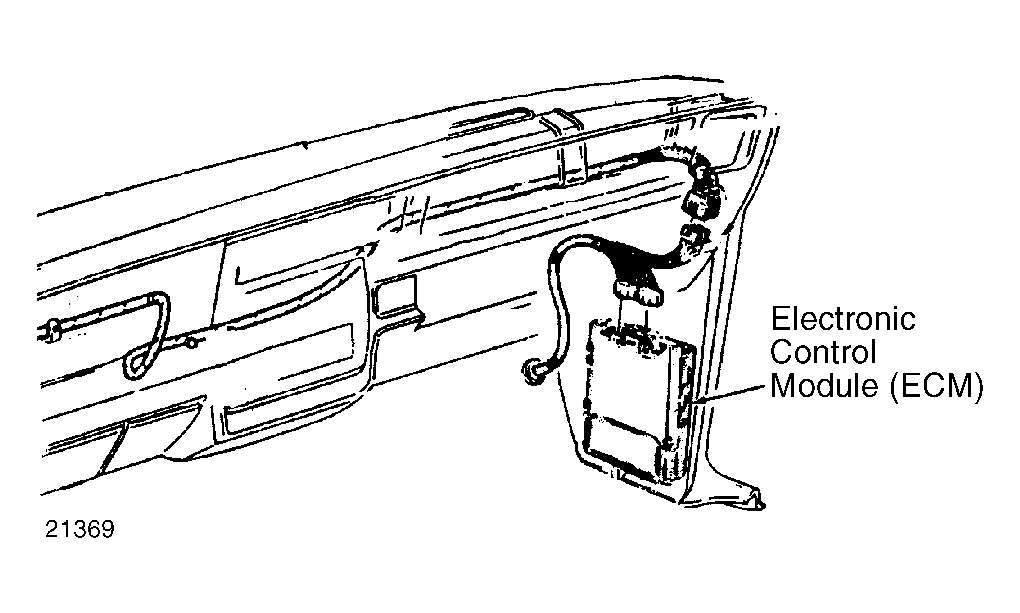

| Electronic Control Module (ECM) | Behind right kick panel. See Figure. |

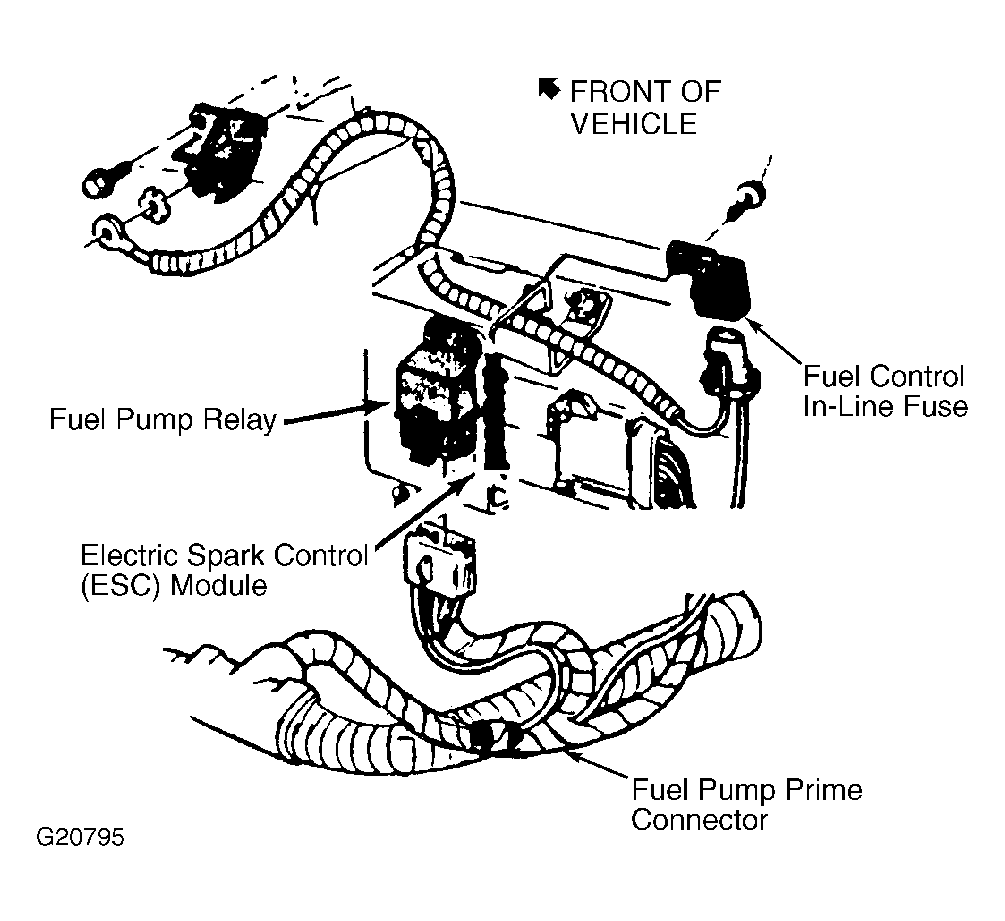

| Elect. Spark Control (ESC) Module | On right front inner fender panel. See Figure & 6. |
| Multi-Function Chime Module | On convenience center. See Figure. |
| Twilight Sentinel Control | Under left side of dash, to left of steering column. |
