Wiring Diagrams

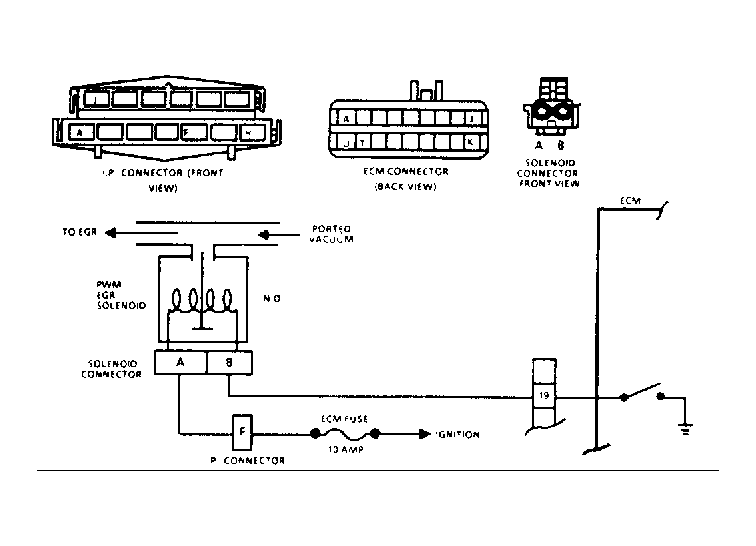

Fig 1: Pulse Width Modulated EGR Control Circuit Wiring Diagram
G13597

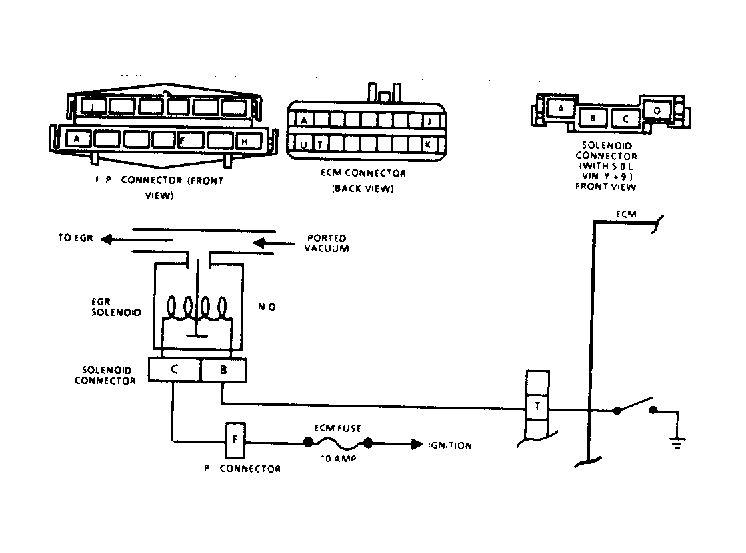

Fig 2: EGR Control Circuit Wiring Diagram (5.0L V8 - VIN Y & 9)
G13598
