Component Locations

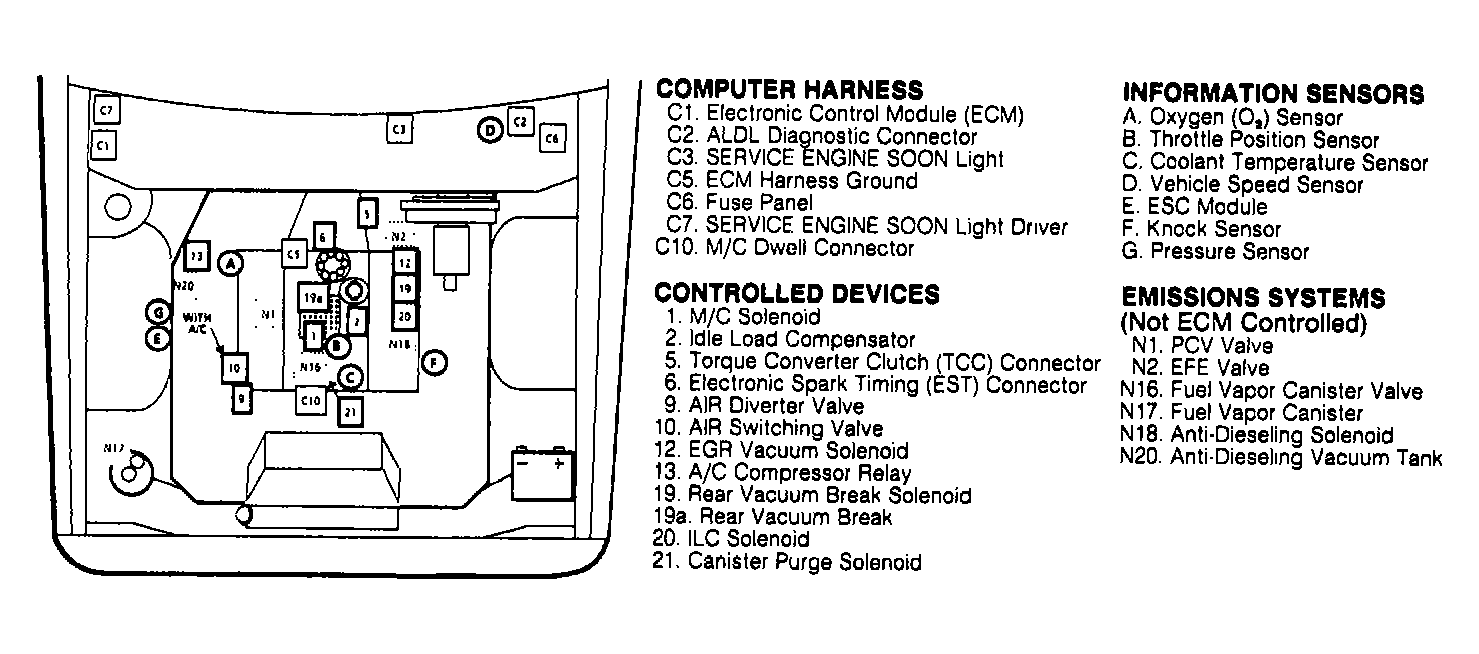

Fig 1: Component Location for 5.0L (VIN Y) "B" Body

G90F09036

Courtesy of GENERAL MOTORS CORP.

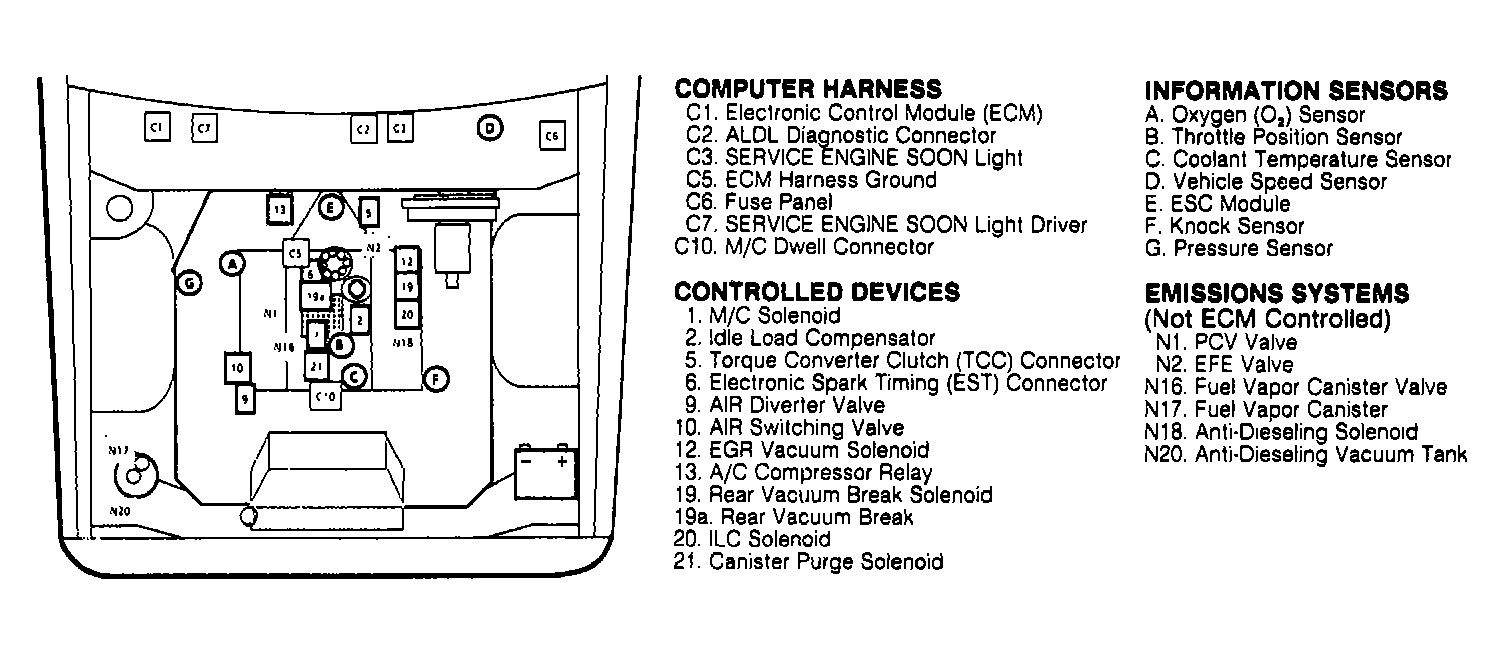

Fig 2: Component Location for 5.0L (VIN Y) "D" Body

G90H09037

Courtesy of GENERAL MOTORS CORP.

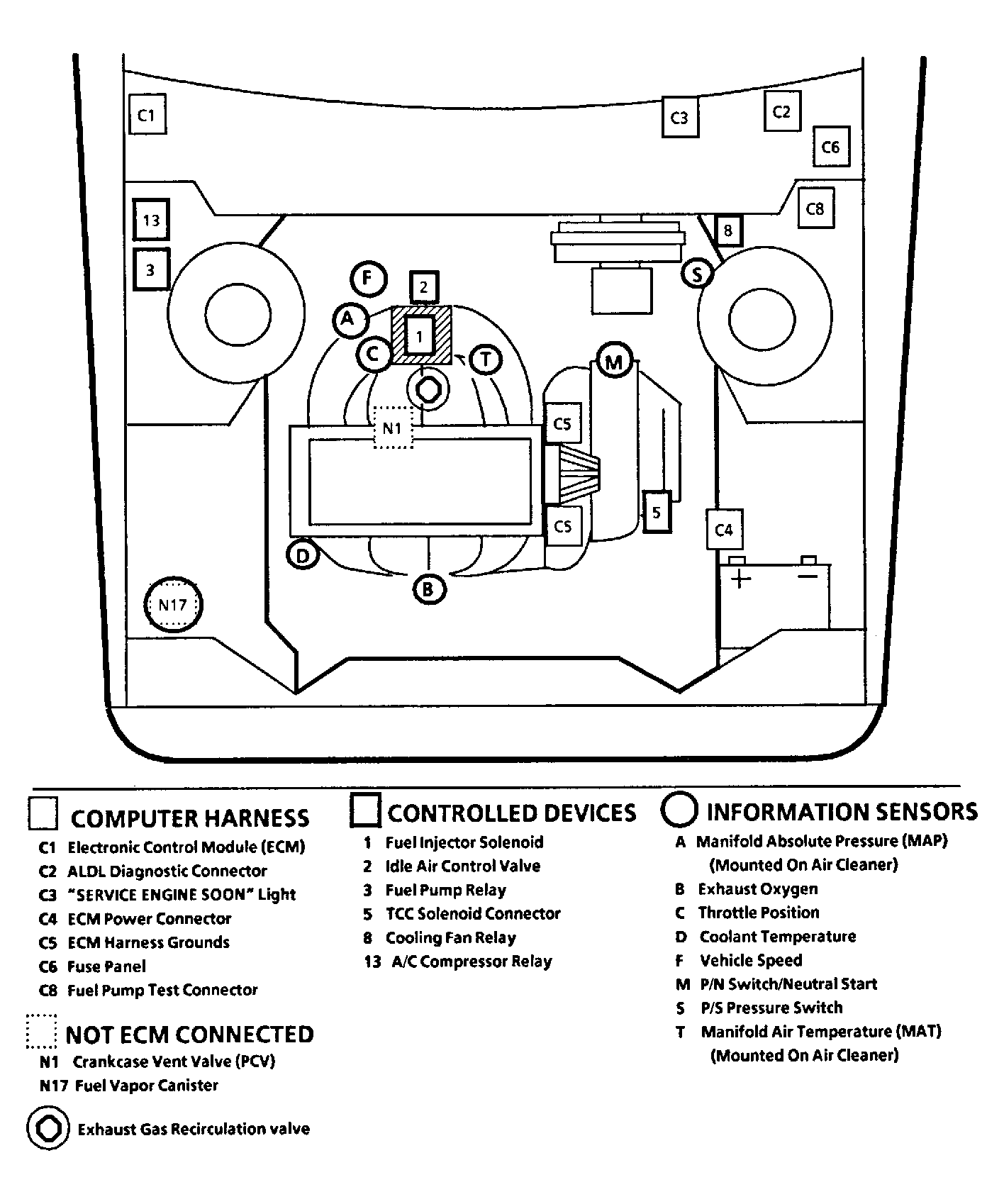

Fig 3: Component Location for 2.0L (VIN K) "J" Body

G110379

Courtesy of GENERAL MOTORS CORP.

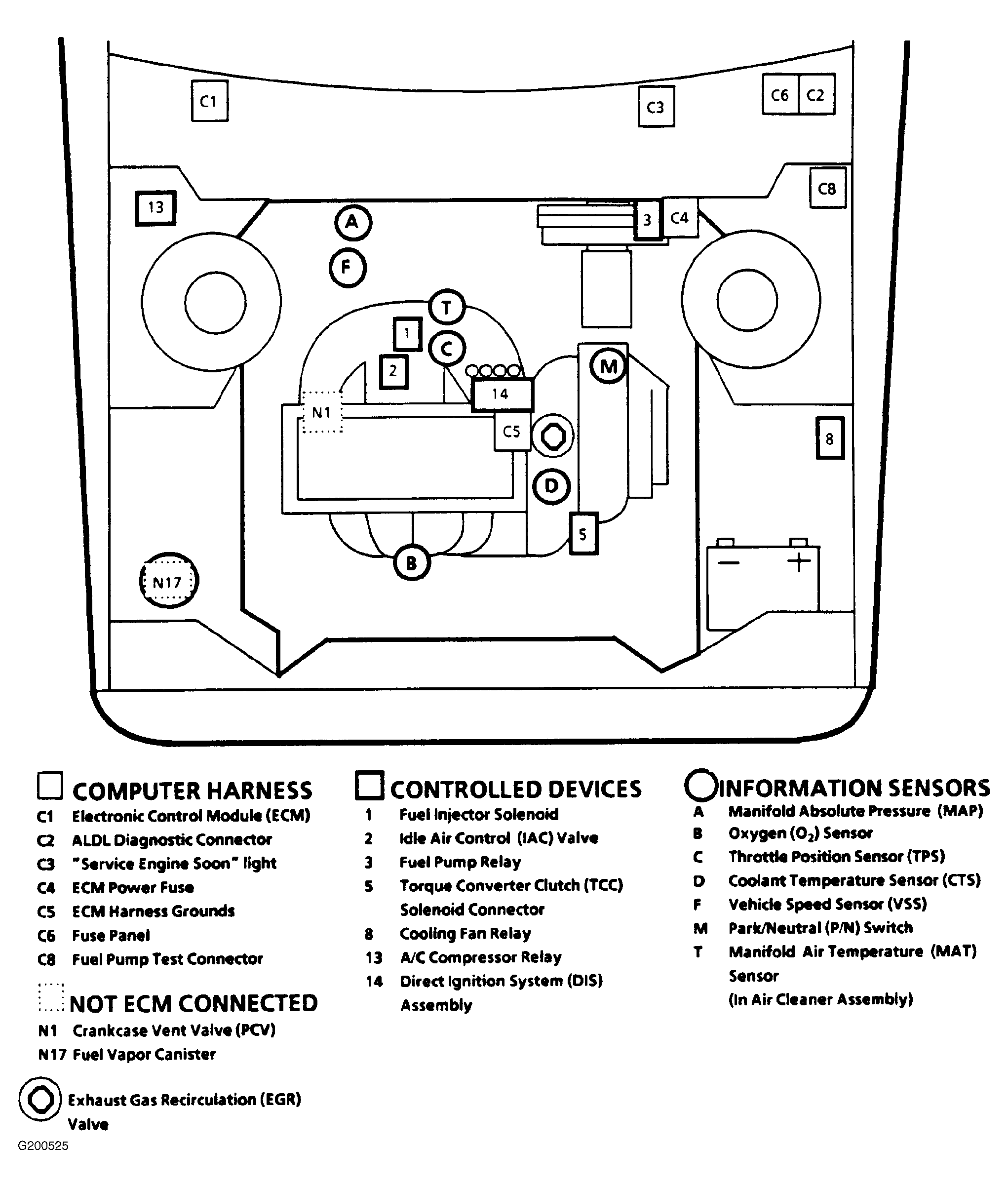

Fig 4: Component Location for 2.2L (VIN G) "J" Body

G200525

Courtesy of GENERAL MOTORS CORP.

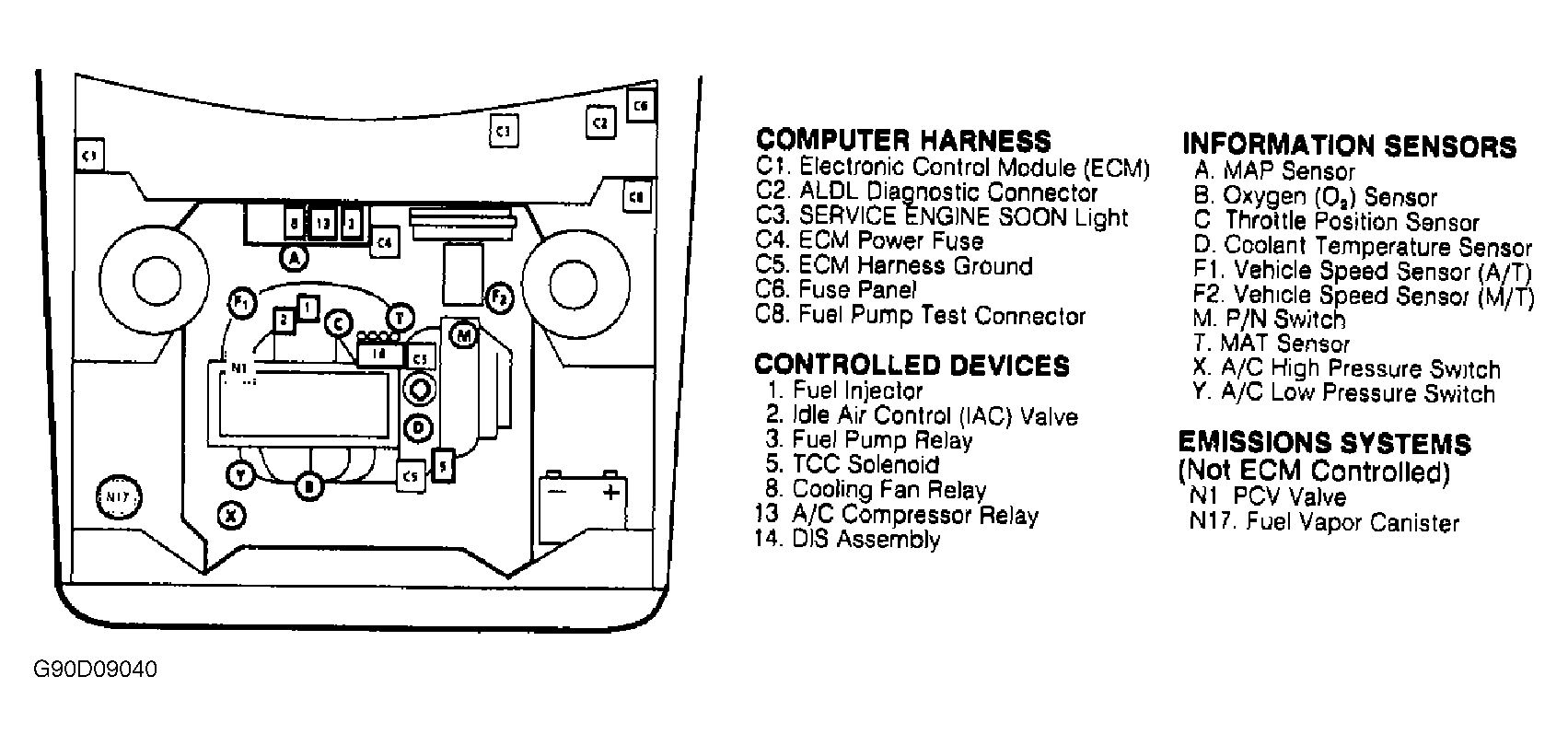

Fig 5: Component Location for 2.2L (VIN G) "L" Body

G90D09040

Courtesy of GENERAL MOTORS CORP.

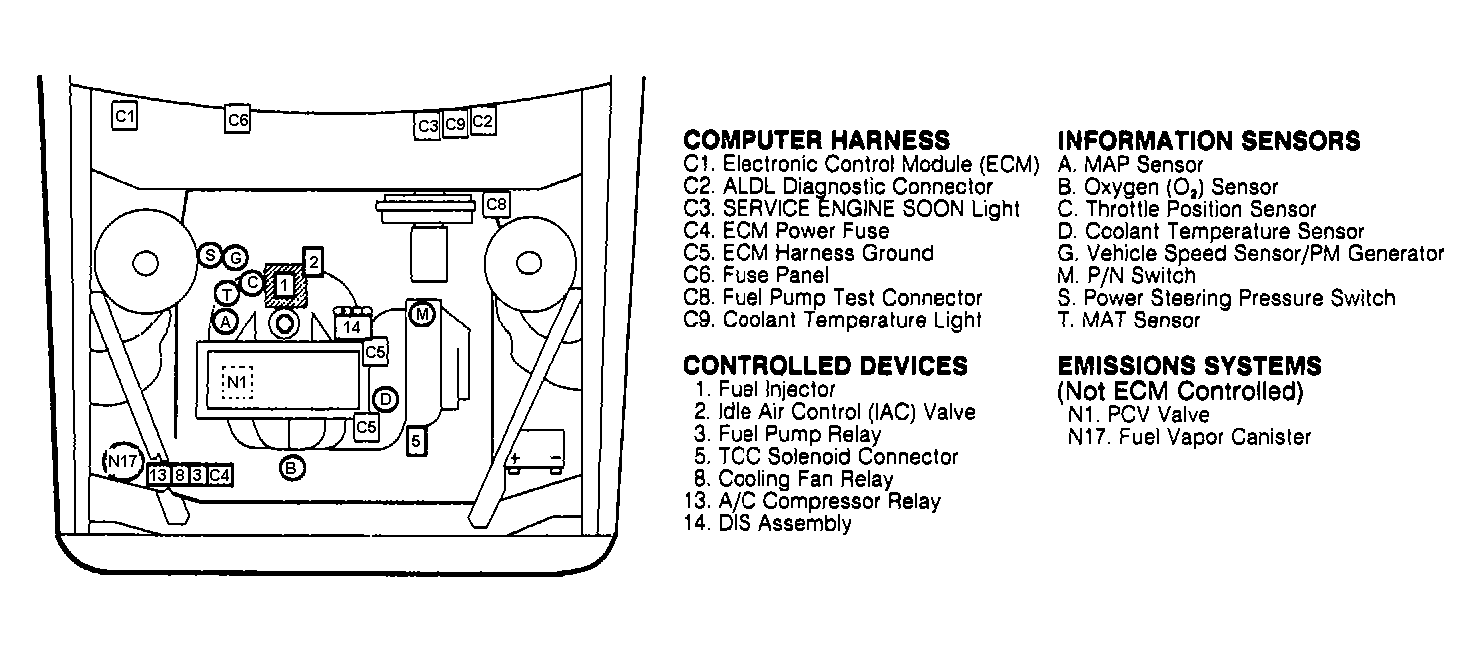

Fig 6: Component Location for 2.5L (VIN R) "A" Body

G90F09041

Courtesy of GENERAL MOTORS CORP.

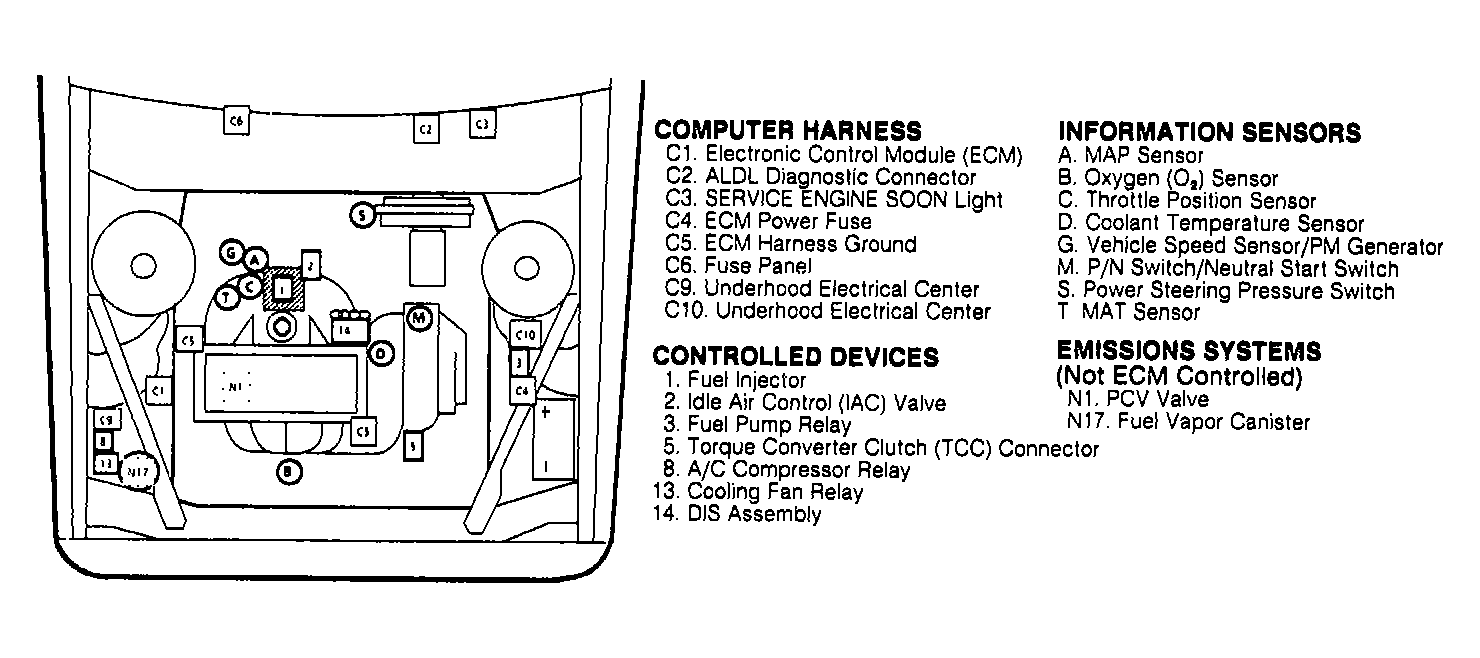

Fig 7: Component Location for 2.5L (VIN R) "W" Body

G90H09042

Courtesy of GENERAL MOTORS CORP.

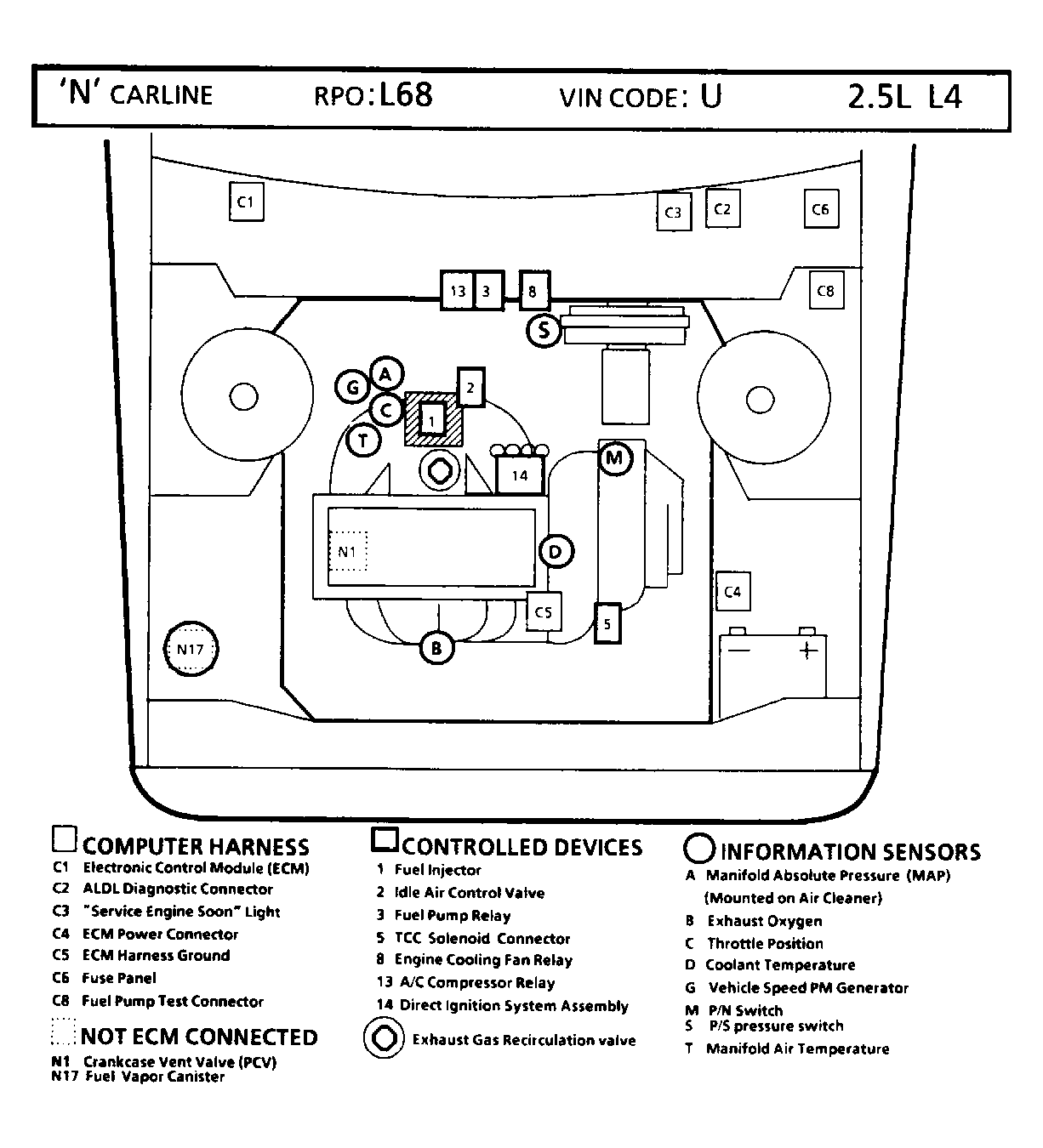

Fig 8: Component Location for 2.5L (VIN U) "N" Body

G110381

Courtesy of GENERAL MOTORS CORP.

Fig 9: Component Location for 5.0L (VIN E) "B" Body

G90F09036

Courtesy of GENERAL MOTORS CORP.

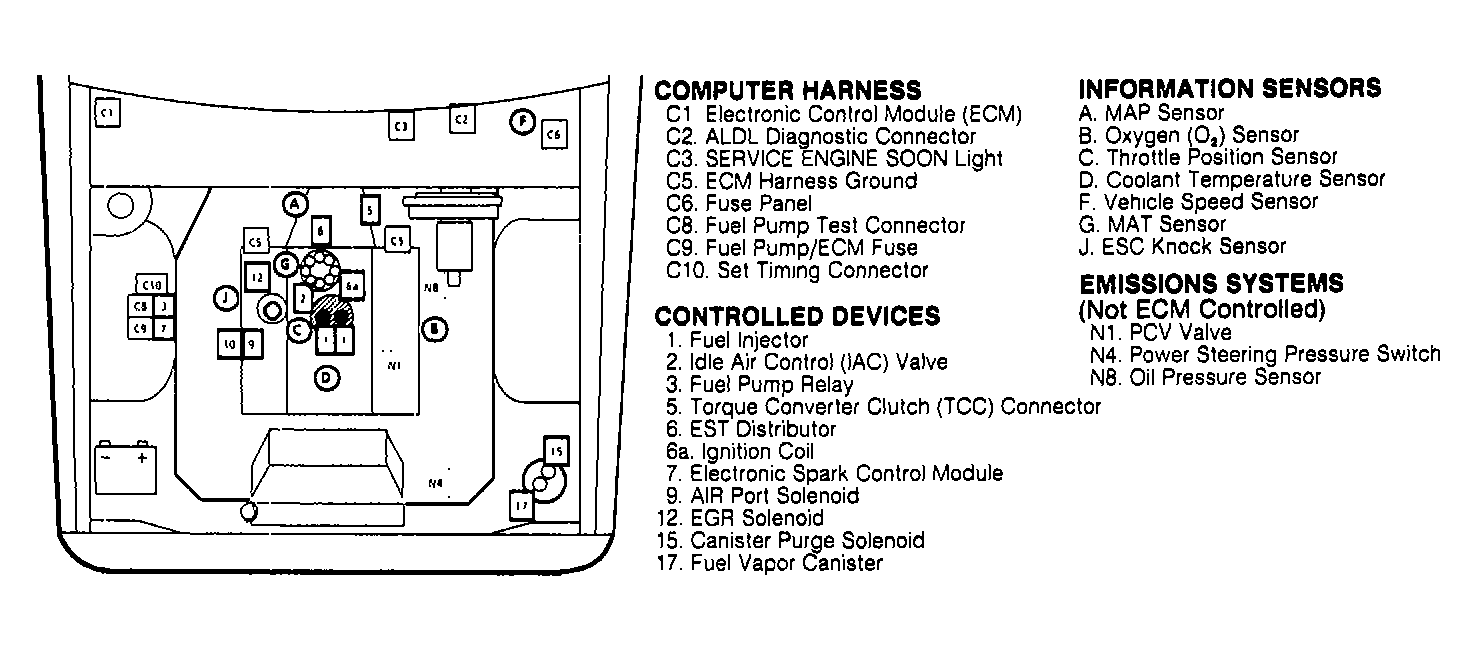

Fig 10: Component Location for 5.7L (VIN 7) "B" Body

G90B09044

Courtesy of GENERAL MOTORS CORP.

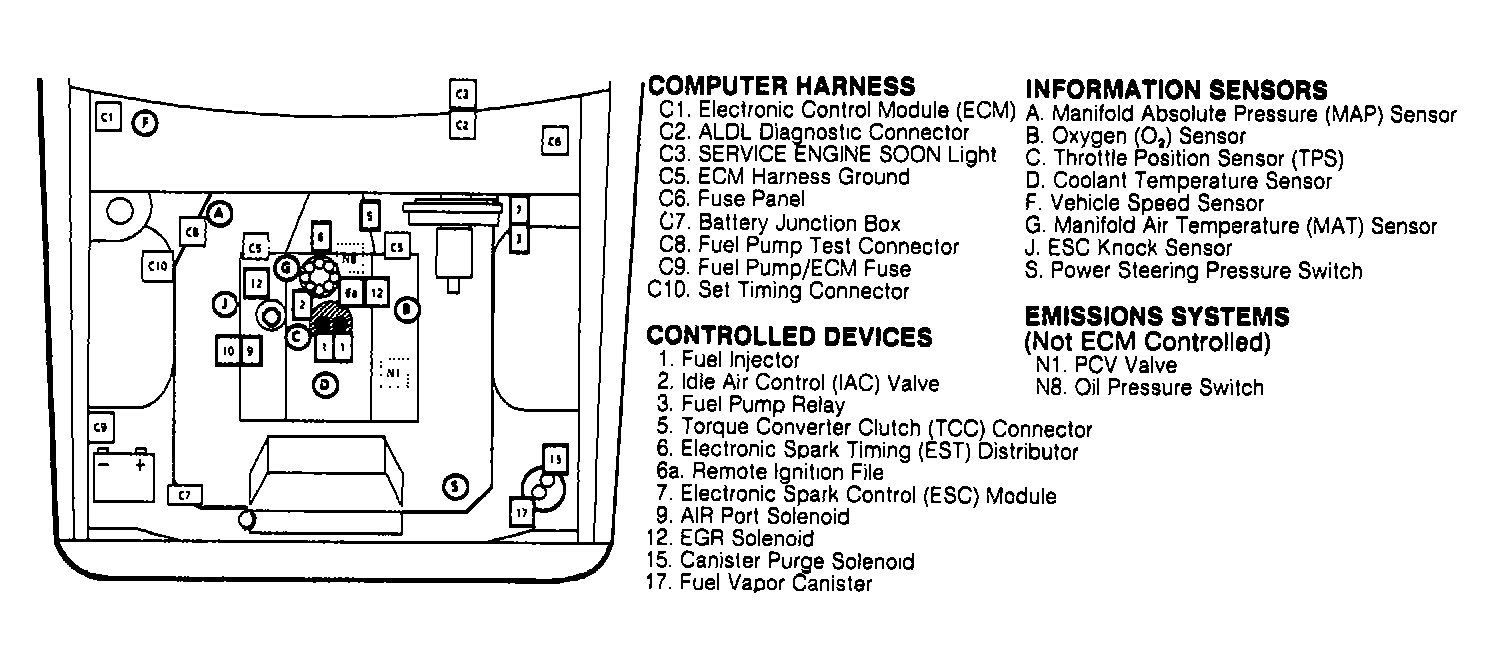

Fig 11: Component Location for 5.0L (VIN E) "F" Body

G90E09045

Courtesy of GENERAL MOTORS CORP.

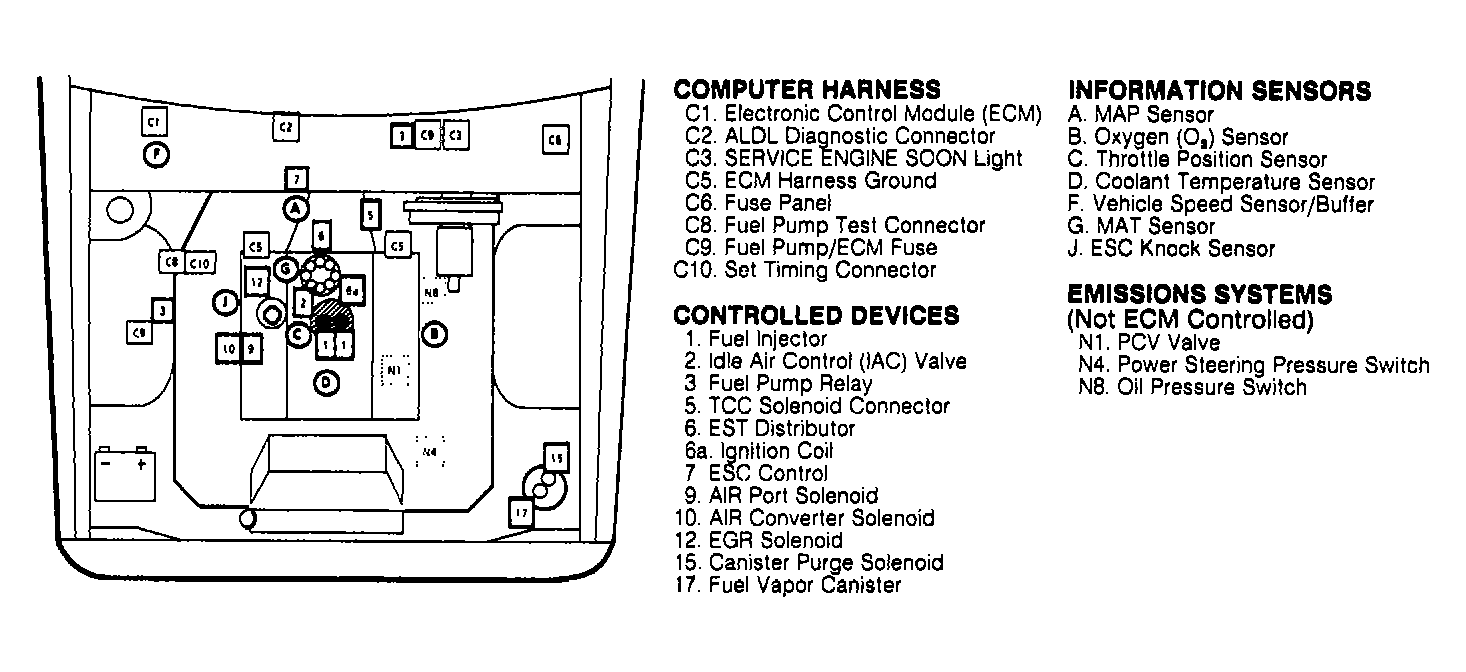

Fig 12: Component Location for 5.7L (VIN 7) "D" Body

G90G09046

Courtesy of GENERAL MOTORS CORP.

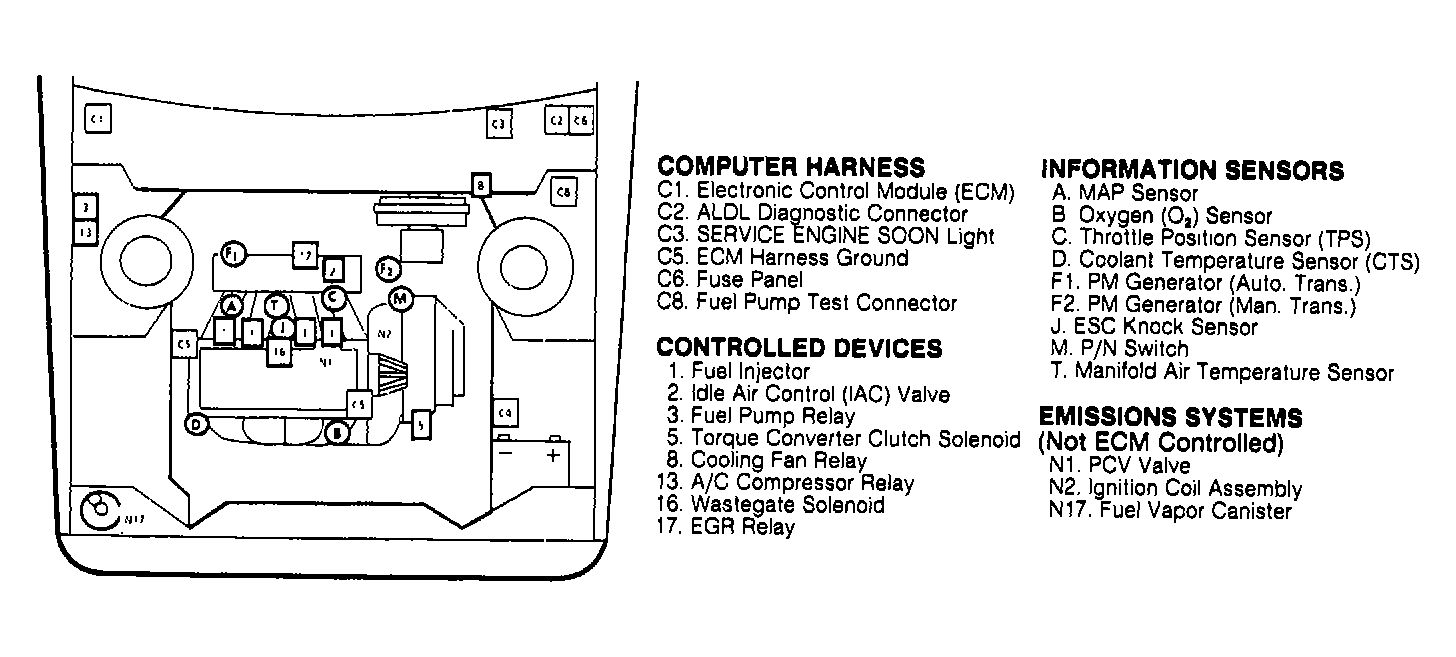

Fig 13: Component Location for 2.0L (VIN M) "J" Body

G90I09047

Courtesy of GENERAL MOTORS CORP.

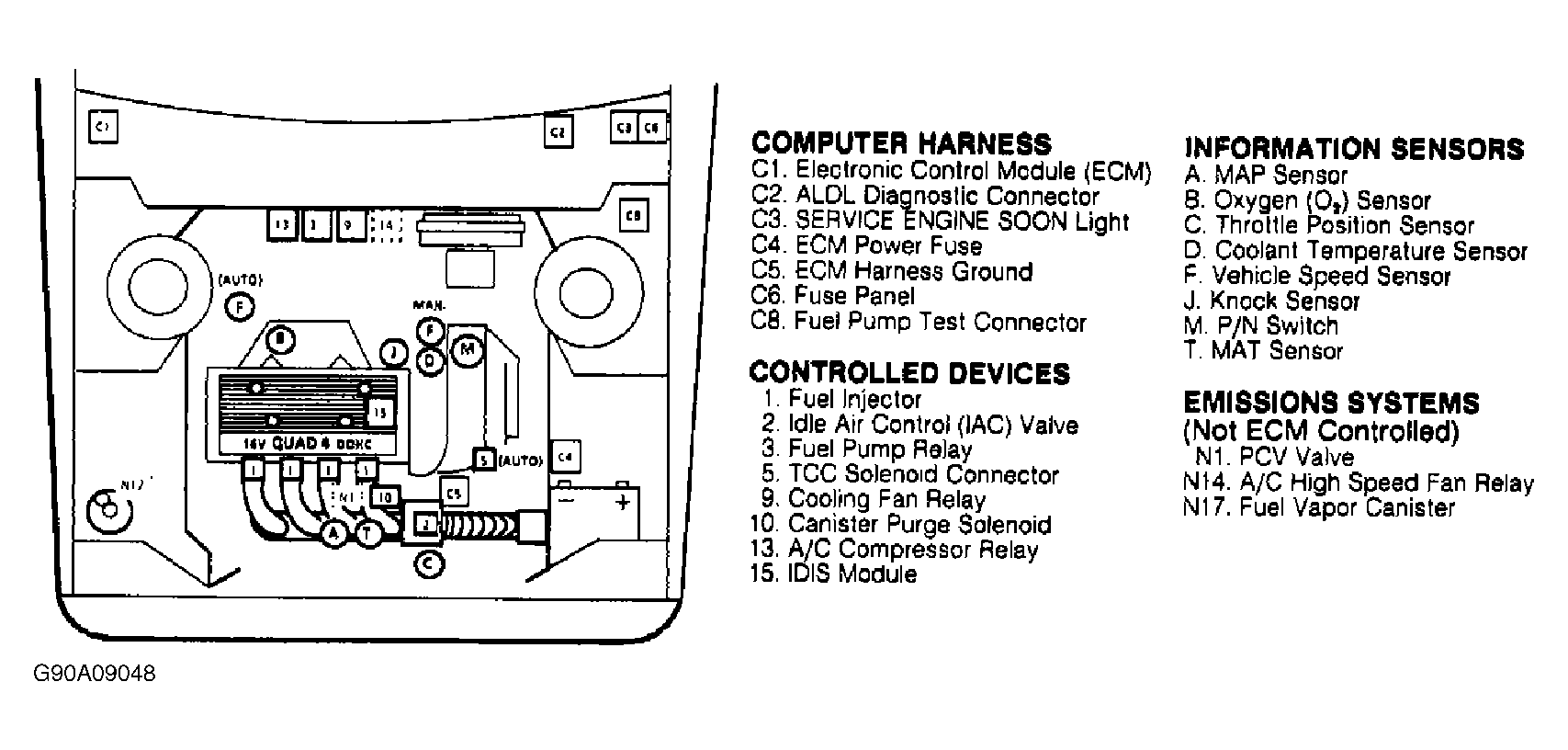

Fig 14: Component Location for 2.3L (VIN A & D) "N" Body

G90A09048

Courtesy of GENERAL MOTORS CORP.

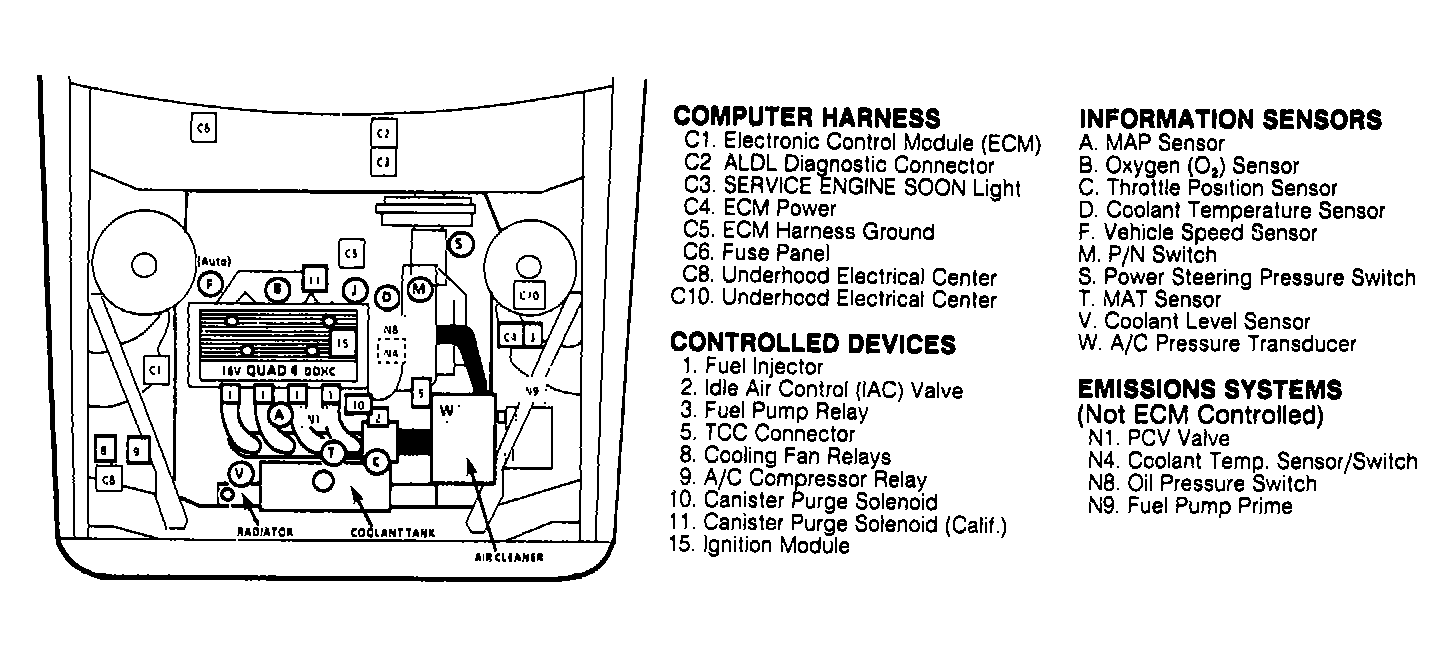

Fig 15: Component Location for 2.3L (VIN A & D) "W" Body

G90C09049

Courtesy of GENERAL MOTORS CORP.

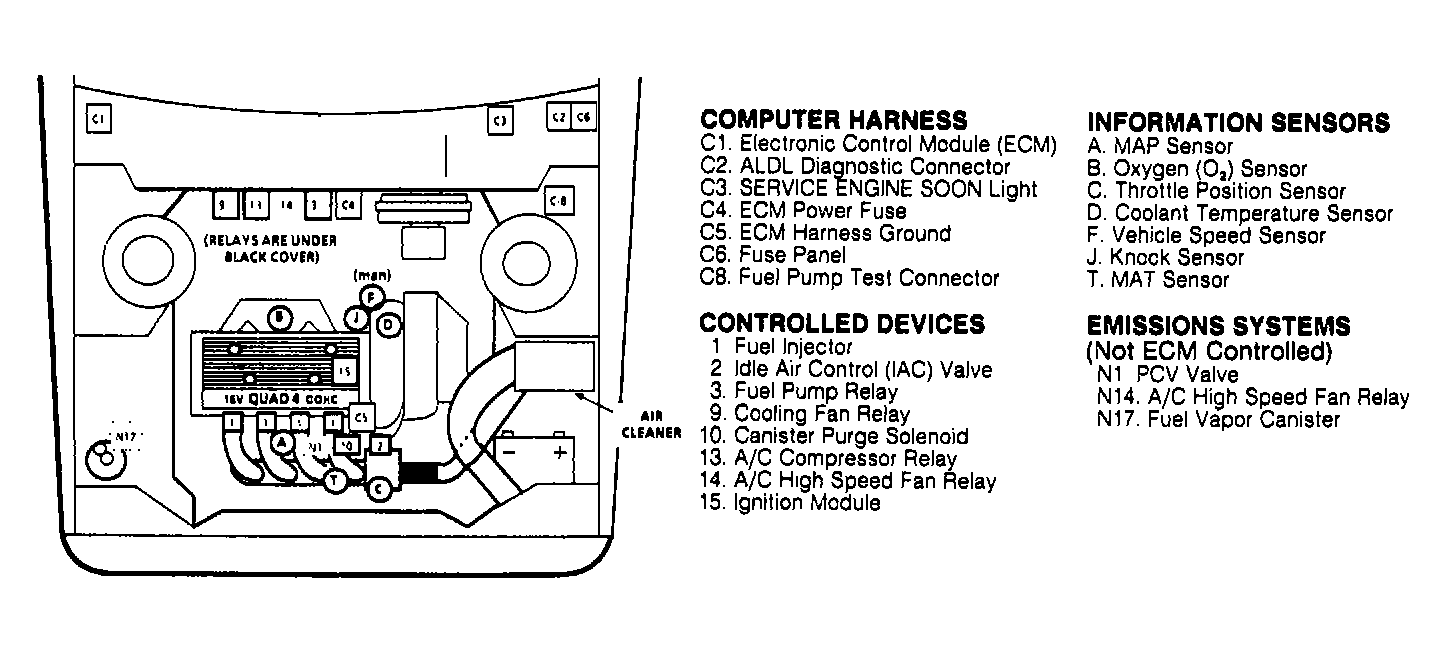

Fig 16: Component Location for 2.3L (VIN A) "L" Body

G90E09050

Courtesy of GENERAL MOTORS CORP.

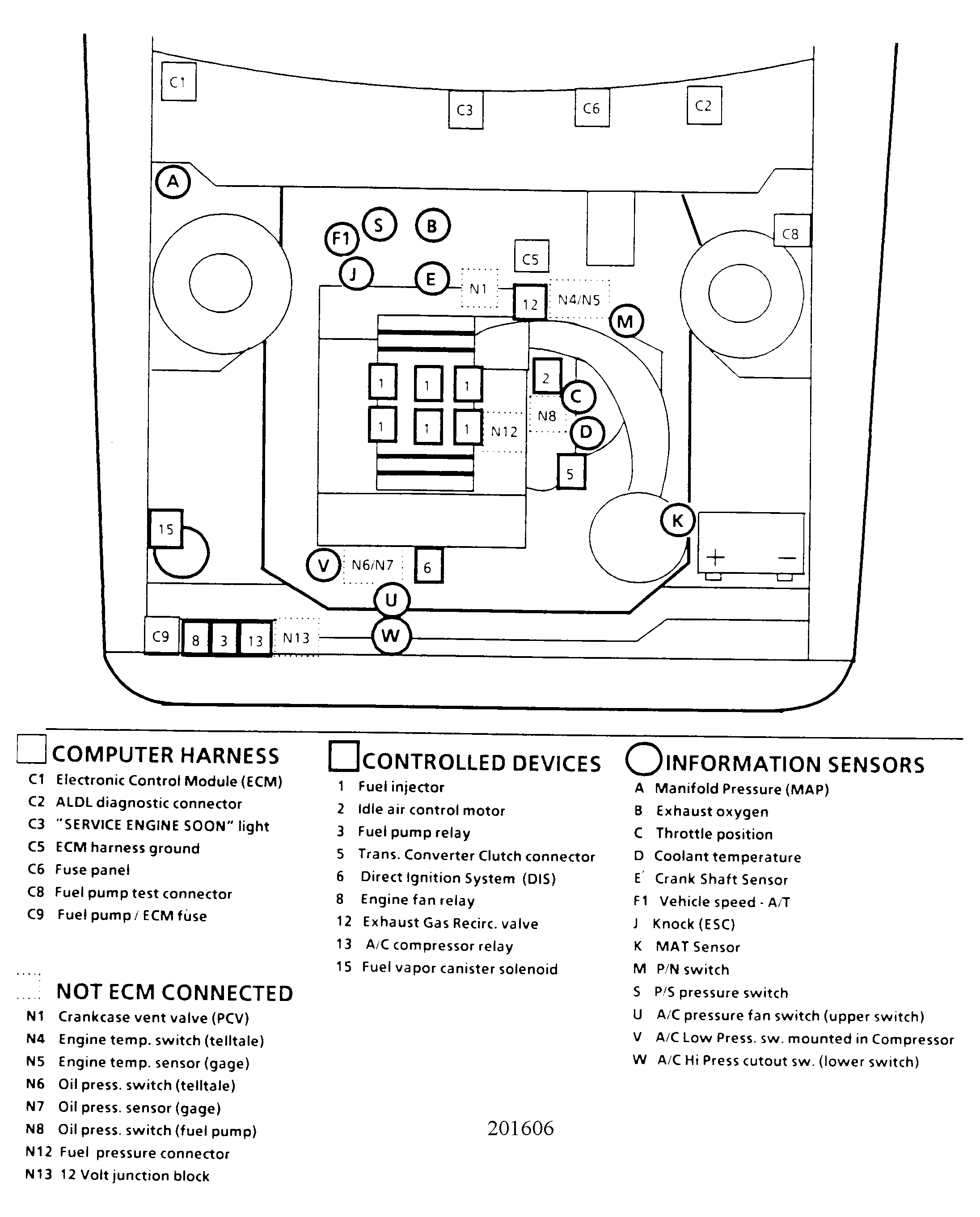

Fig 17: Component Location for 3.1L (VIN T) "A" Body

G201606

Courtesy of GENERAL MOTORS CORP.

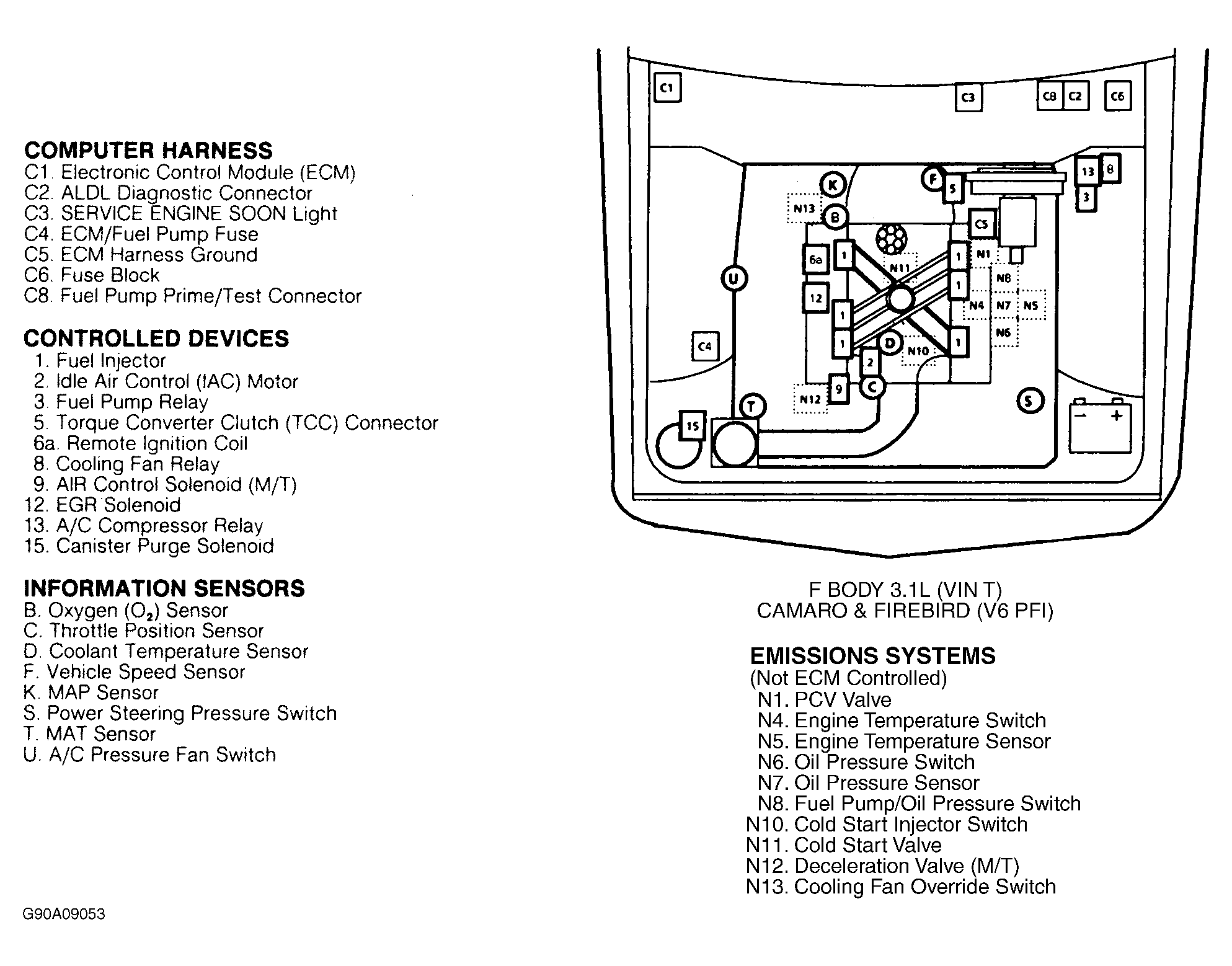

Fig 18: Component Location for 3.1L (VIN T) "F" Body

G90A09053

Courtesy of GENERAL MOTORS CORP.

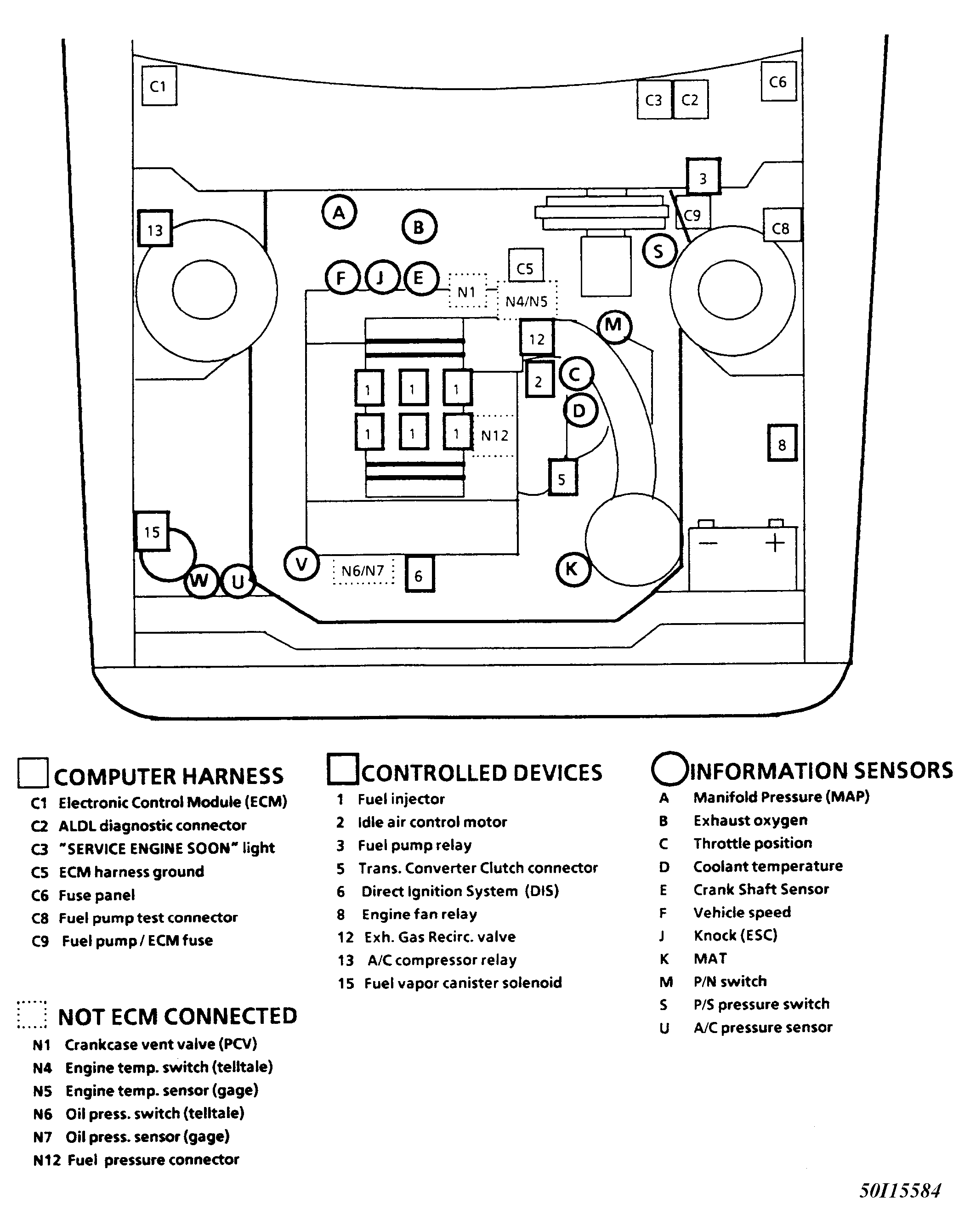

Fig 19: Component Location for 3.1L (VIN T) "J" Body

G50I15584

Courtesy of GENERAL MOTORS CORP.

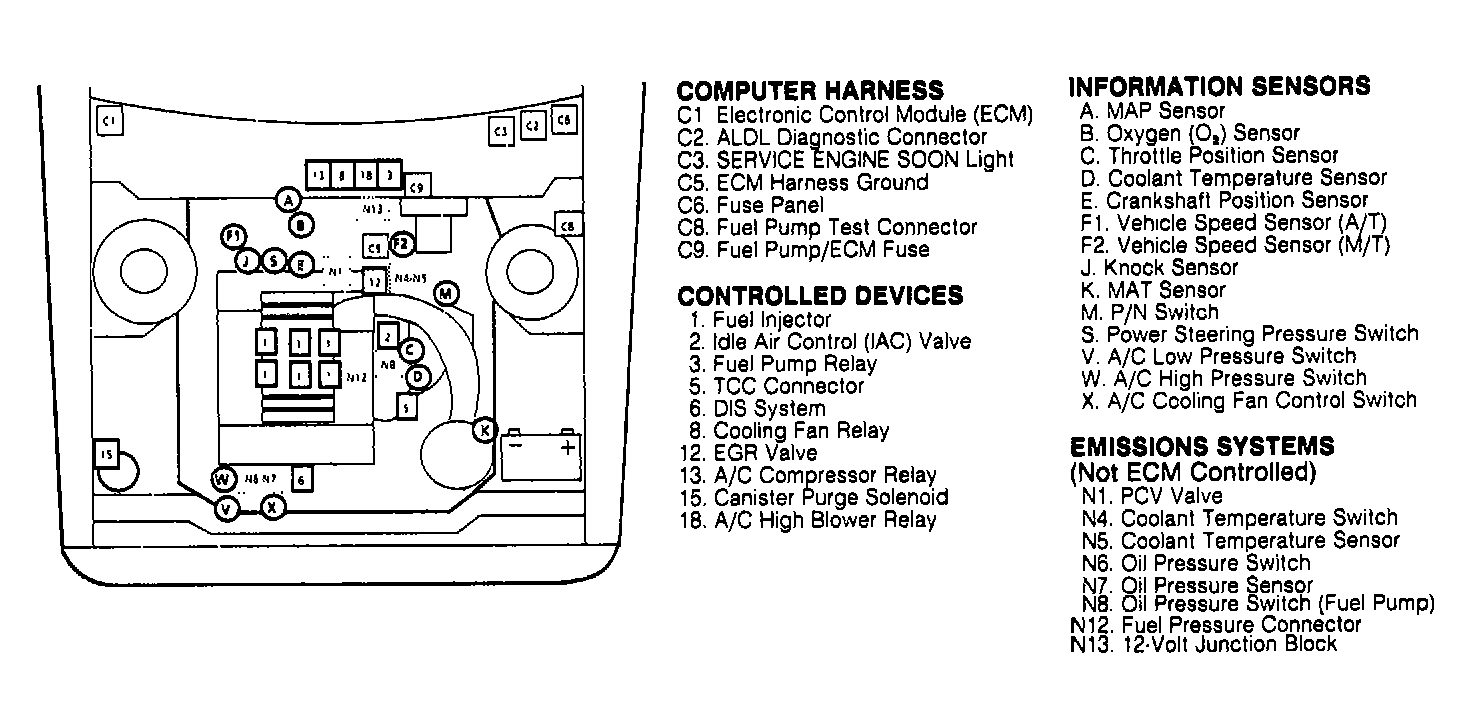

Fig 20: Component Location for 3.1L (VIN T) "L" Body

G90F09055

Courtesy of GENERAL MOTORS CORP.

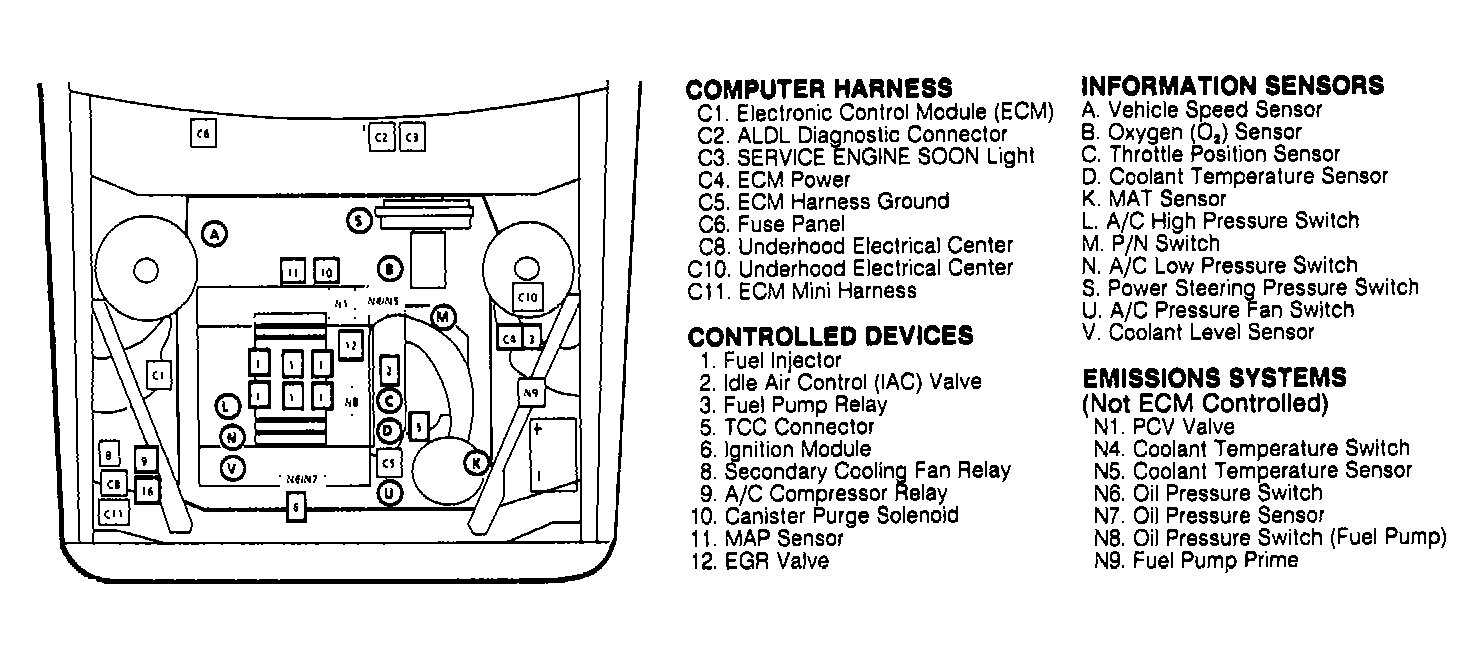

Fig 21: Component Location for 3.1L (VIN T) "W" Body

G90H09056

Courtesy of GENERAL MOTORS CORP.

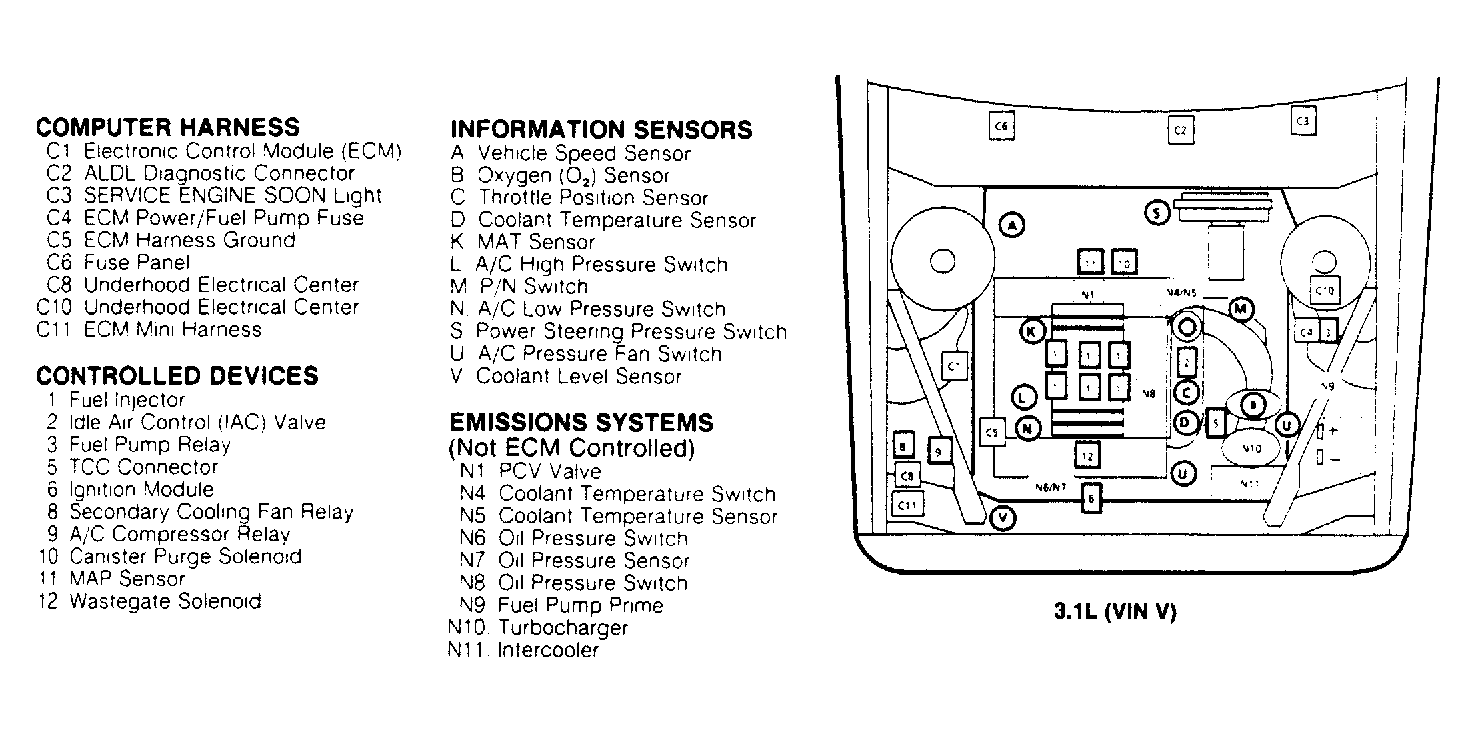

Fig 22: Component Location for 3.1L (VIN V) "W" Body

G90J09057

Courtesy of GENERAL MOTORS CORP.

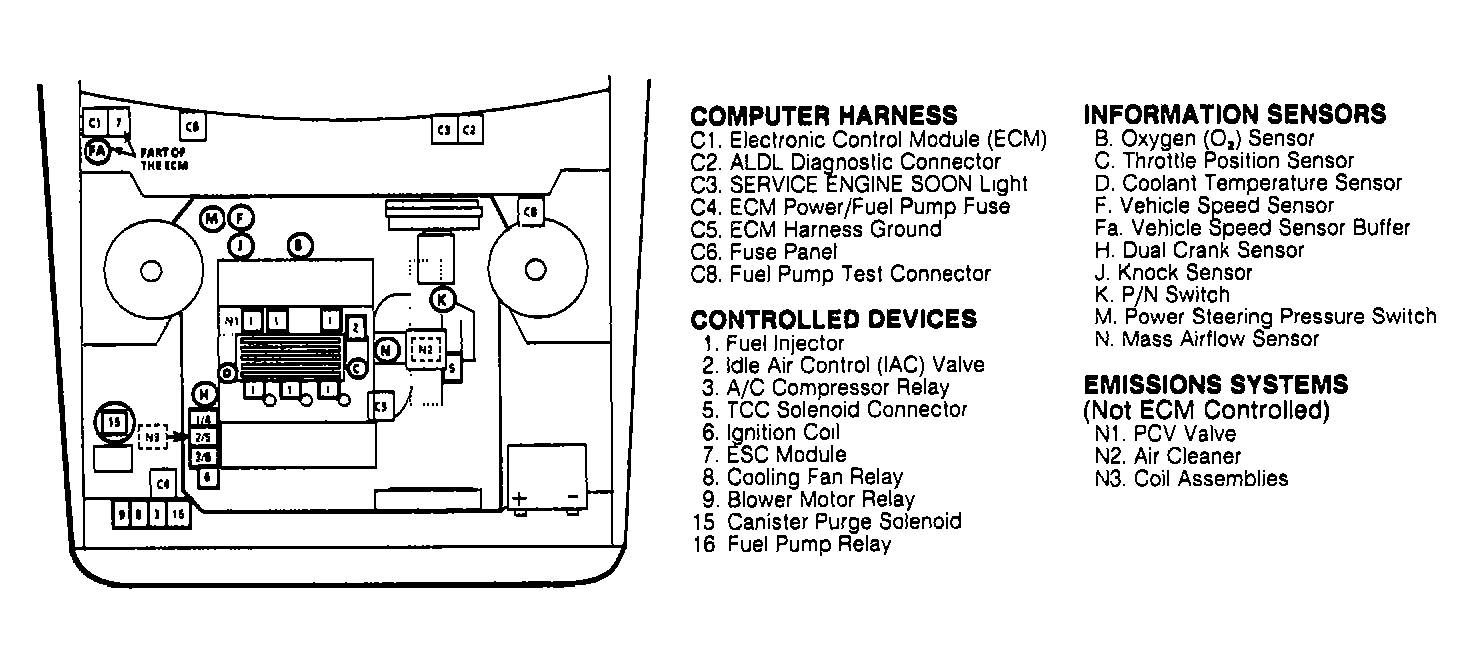

Fig 23: Component Location for 3.3L (VIN N) "A" Body

G90B09058

Courtesy of GENERAL MOTORS CORP.

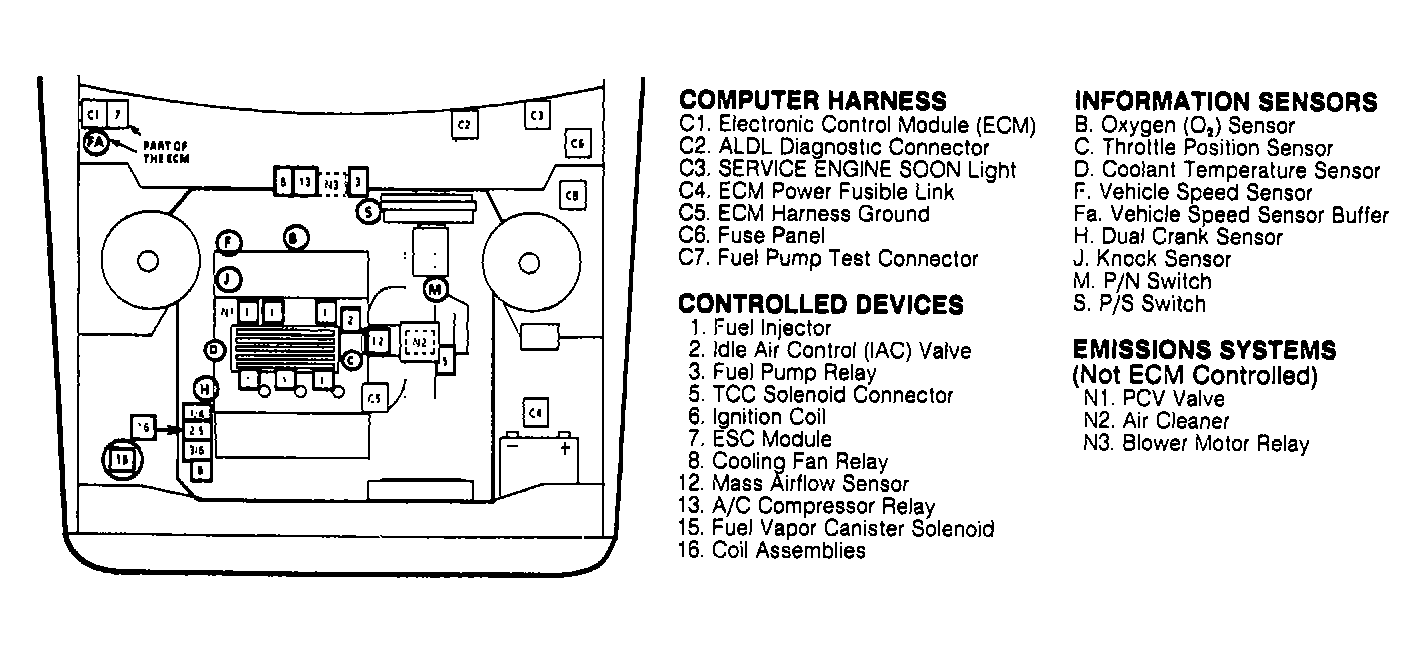

Fig 24: Component Location for 3.3L (VIN N) "N" Body

G90D09059

Courtesy of GENERAL MOTORS CORP.

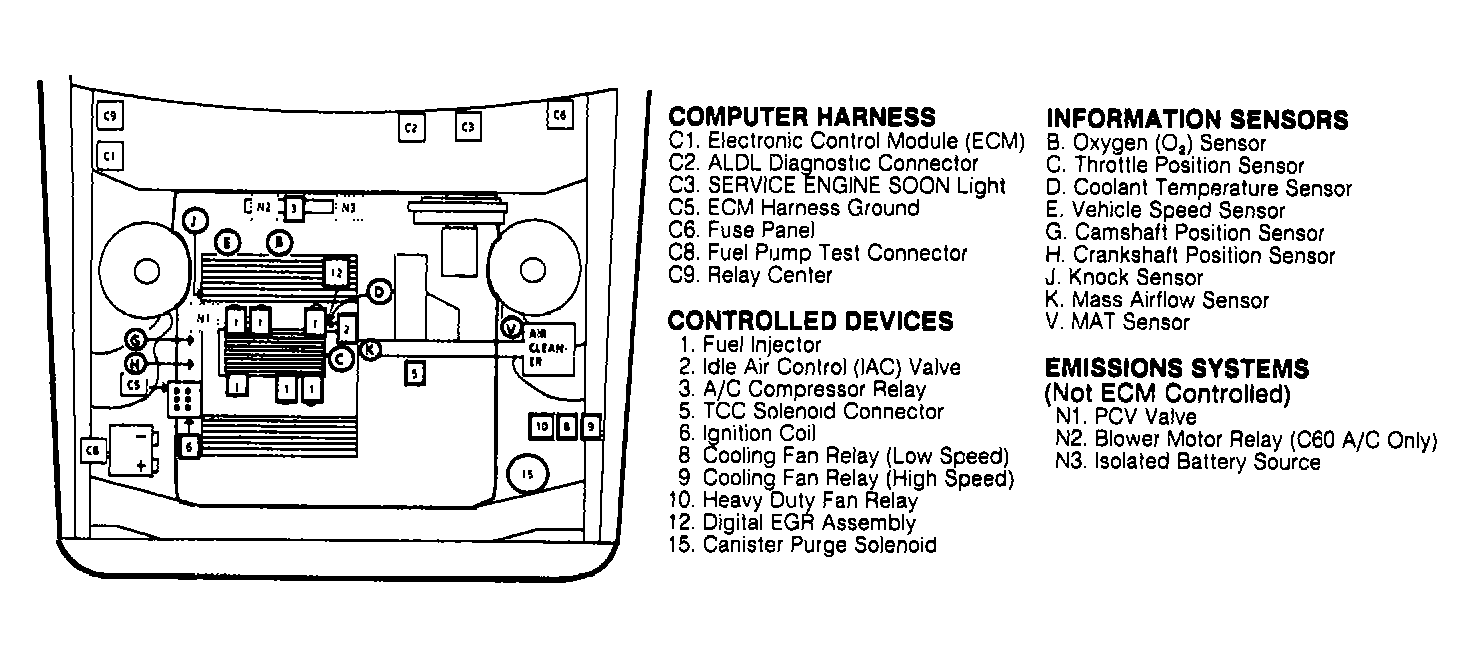

Fig 25: Component Location for 3.8L (VIN C) "C" & "H" Body

G90F09060

Courtesy of GENERAL MOTORS CORP.

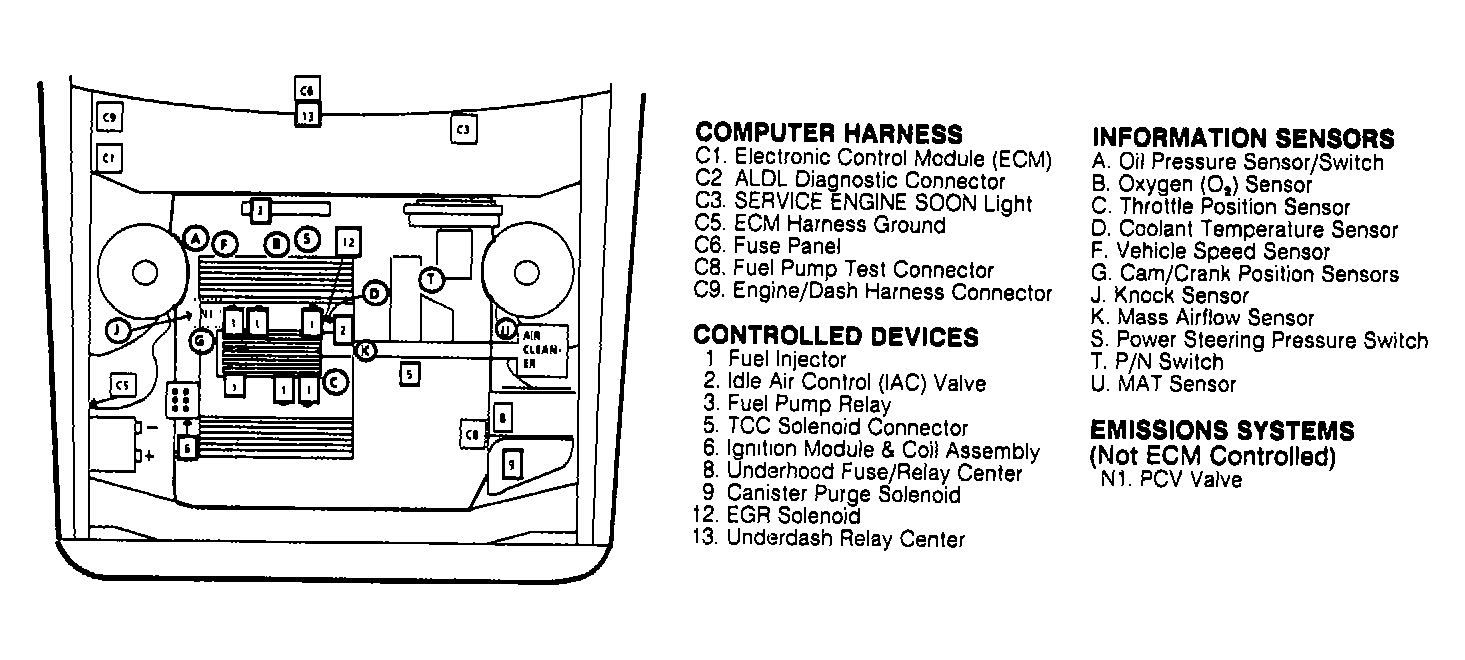

Fig 26: Component Location for 3.8L (VIN C) "E" Body

G90H09061

Courtesy of GENERAL MOTORS CORP.

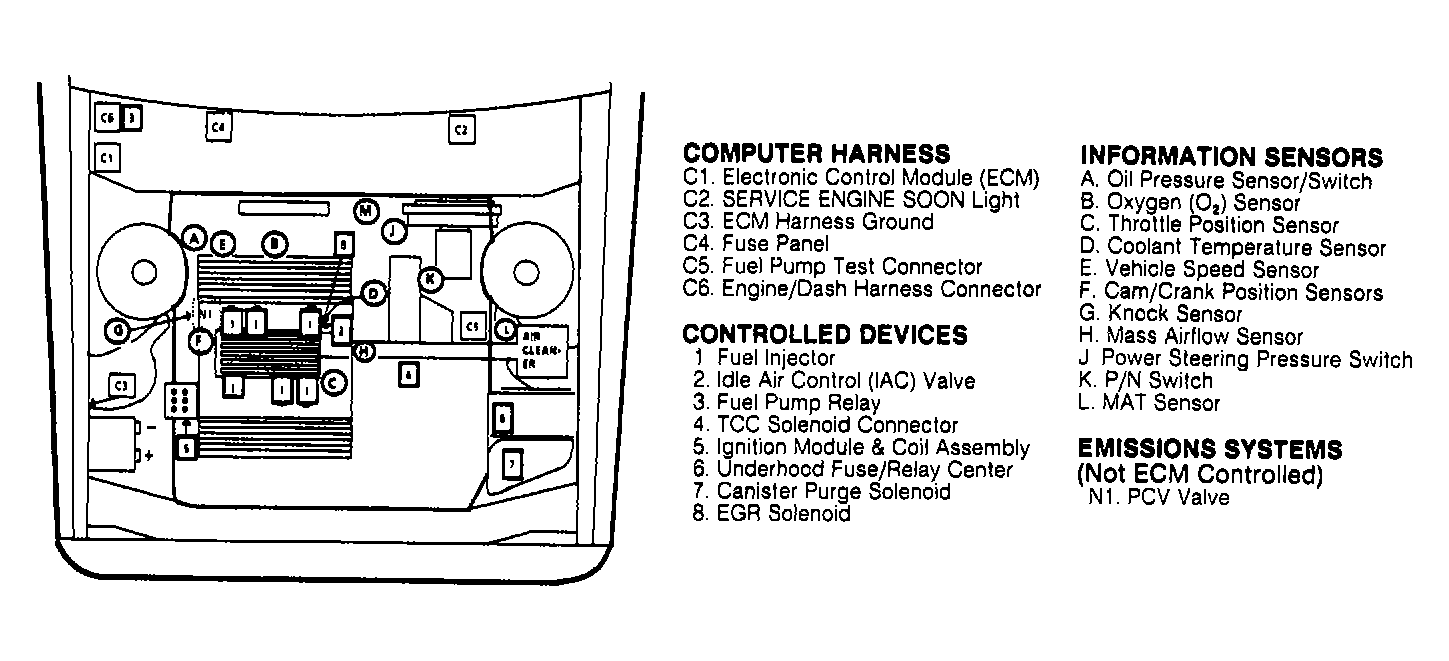

Fig 27: Component Location for 3.8L (VIN C) "E" Body

G90J09062

Courtesy of GENERAL MOTORS CORP.

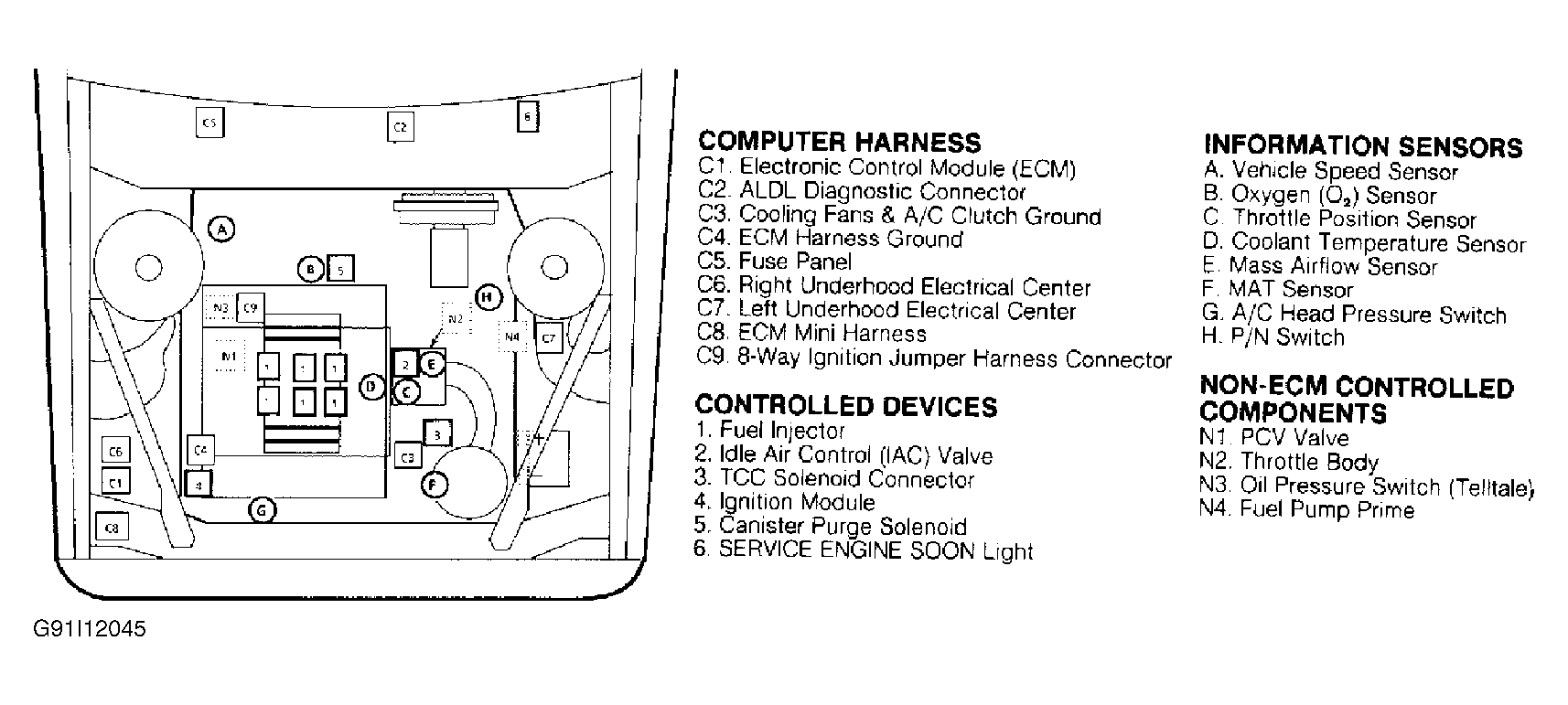

Fig 28: Component Location for 3.8L (VIN L) "W" Body (Regal)

G91I12045

Courtesy of GENERAL MOTORS CORP.

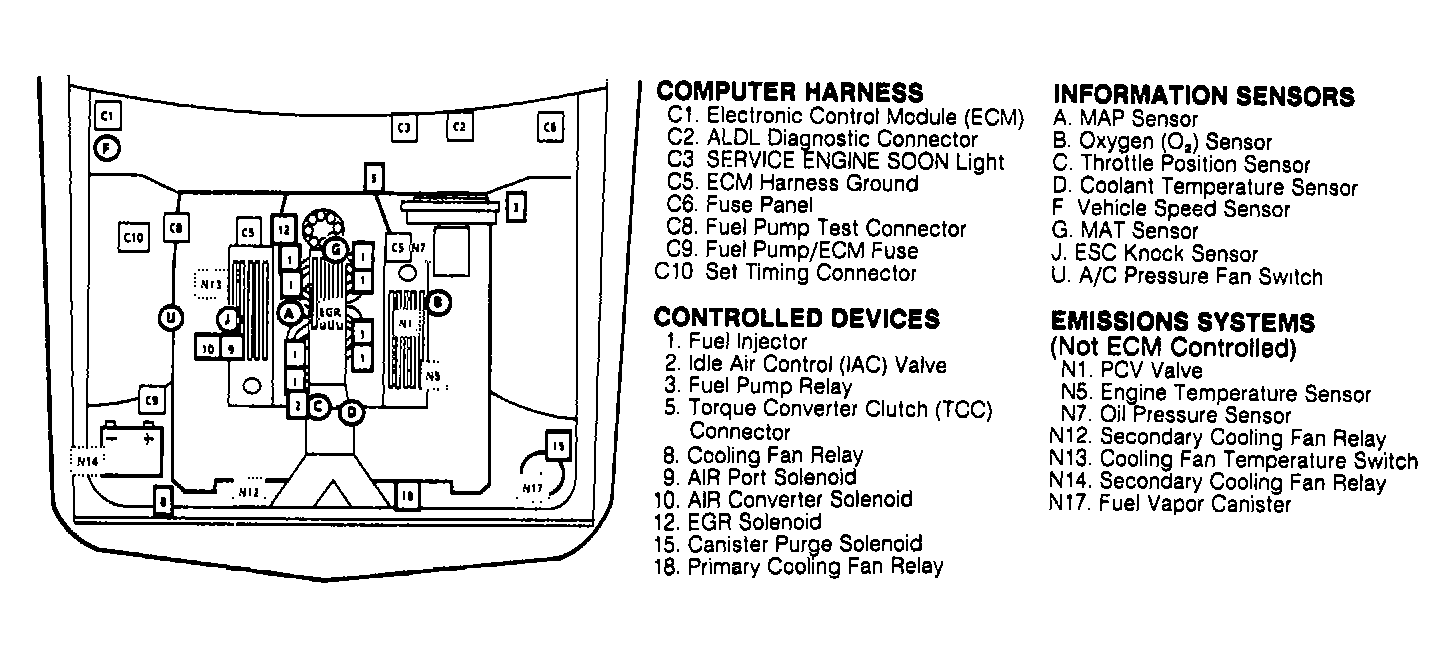

Fig 29: Component Location for 5.0L (VIN F) "F" Body

G90B09063

Courtesy of GENERAL MOTORS CORP.

Fig 30: Component Location for 5.7L (VIN ) "F" Body

G90B09063

Courtesy of GENERAL MOTORS CORP.

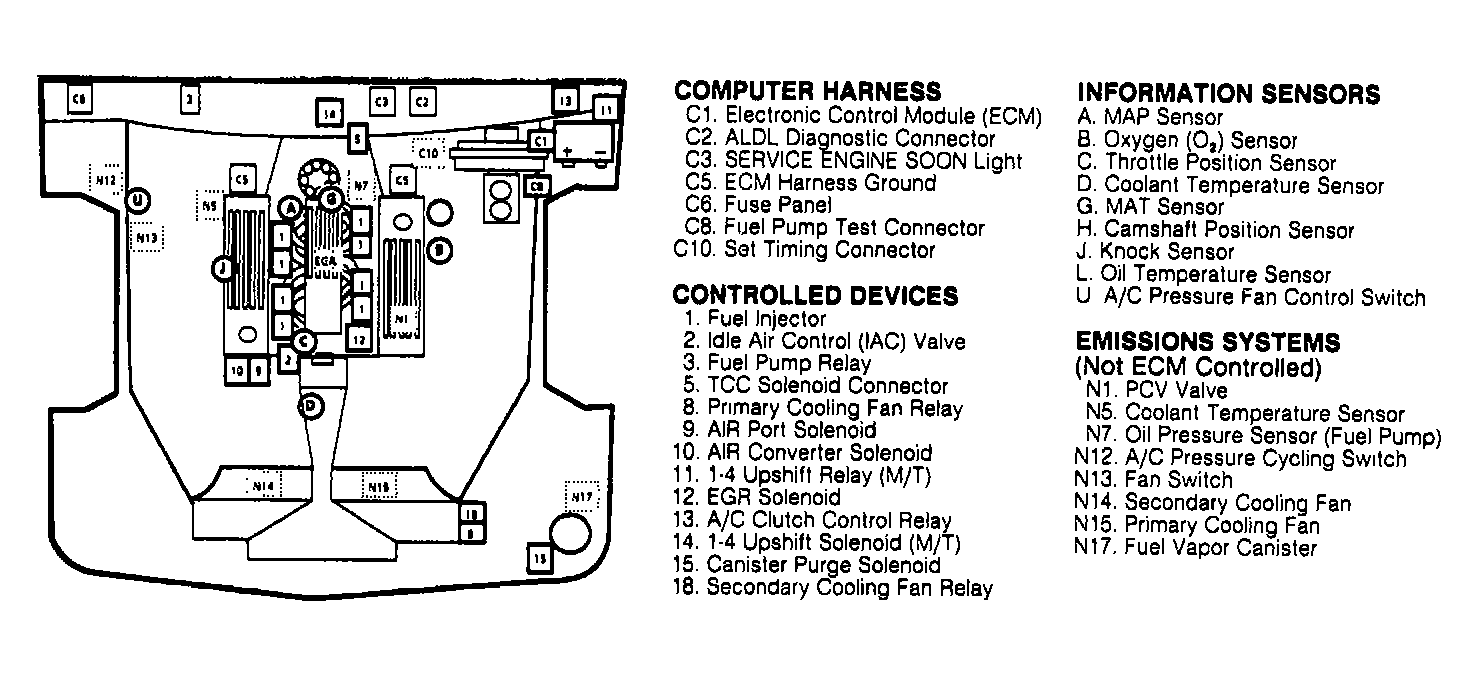

Fig 31: Component Location for 5.7L (VIN ) "Y" Body

G90D09064

Courtesy of GENERAL MOTORS CORP.

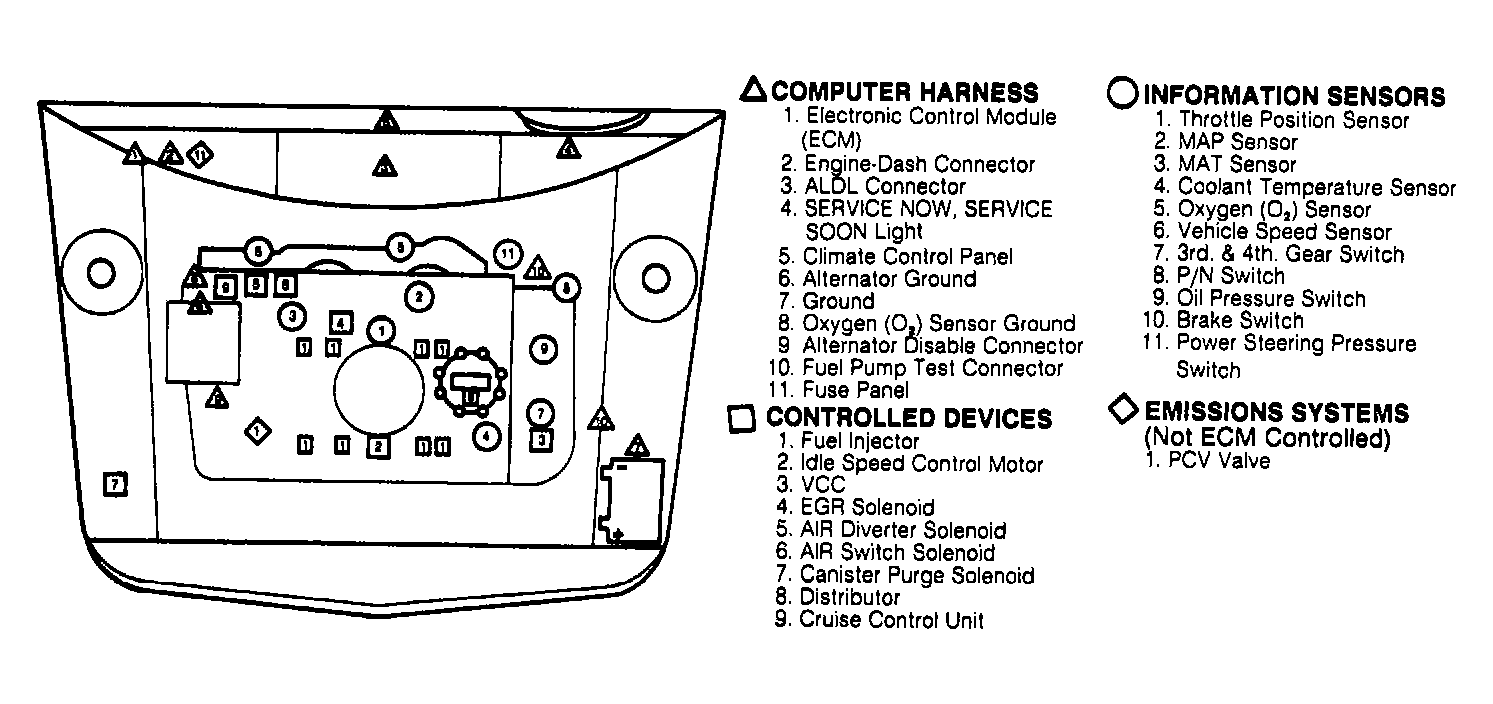

Fig 32: Component Location for 4.5L (VIN 3) "C" Body

G90G09065

Courtesy of GENERAL MOTORS CORP.

Fig 33: Component Location for 4.5L (VIN 3) "E" Body

G90G09065

Courtesy of GENERAL MOTORS CORP.

Fig 34: Component Location for 4.5L (VIN 3) "K" Body

G90G09065

Courtesy of GENERAL MOTORS CORP.
