Cooling Fan Motor

Disconnect cooling fan motor harness connector. Apply battery voltage to one of the fan motor terminals and jumper the other terminal to ground. Fan motor should activate. If fan motor does not activate, replace faulty fan motor.

Fig 1: Sunbird 2.0L TBI Cooling Fan Schematic

G90G13157

Courtesy of GENERAL MOTORS CORP.

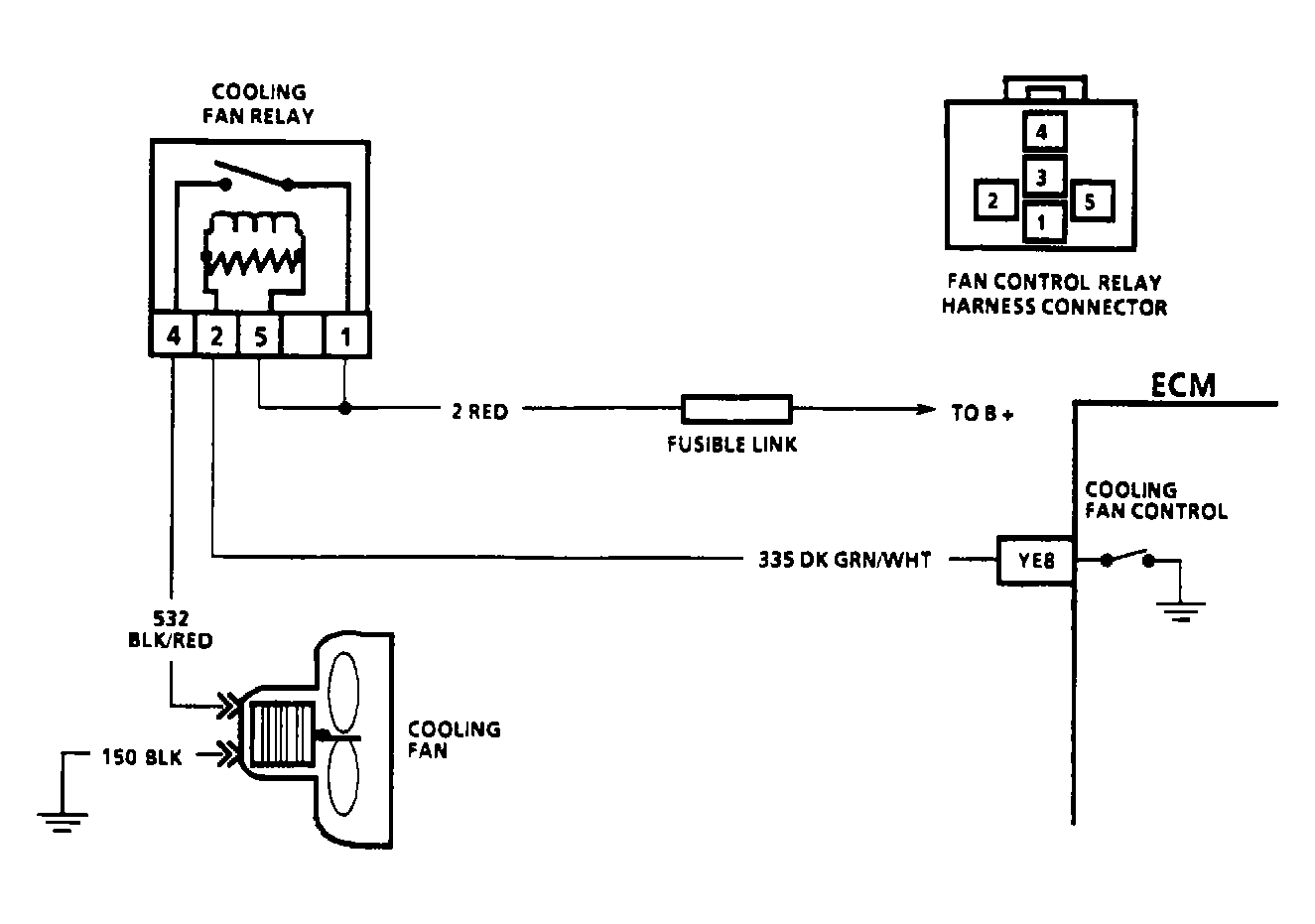

Fig 2: Sunbird 2.0L PFI Cooling Fan Schematic

G90H13158

Courtesy of GENERAL MOTORS CORP.

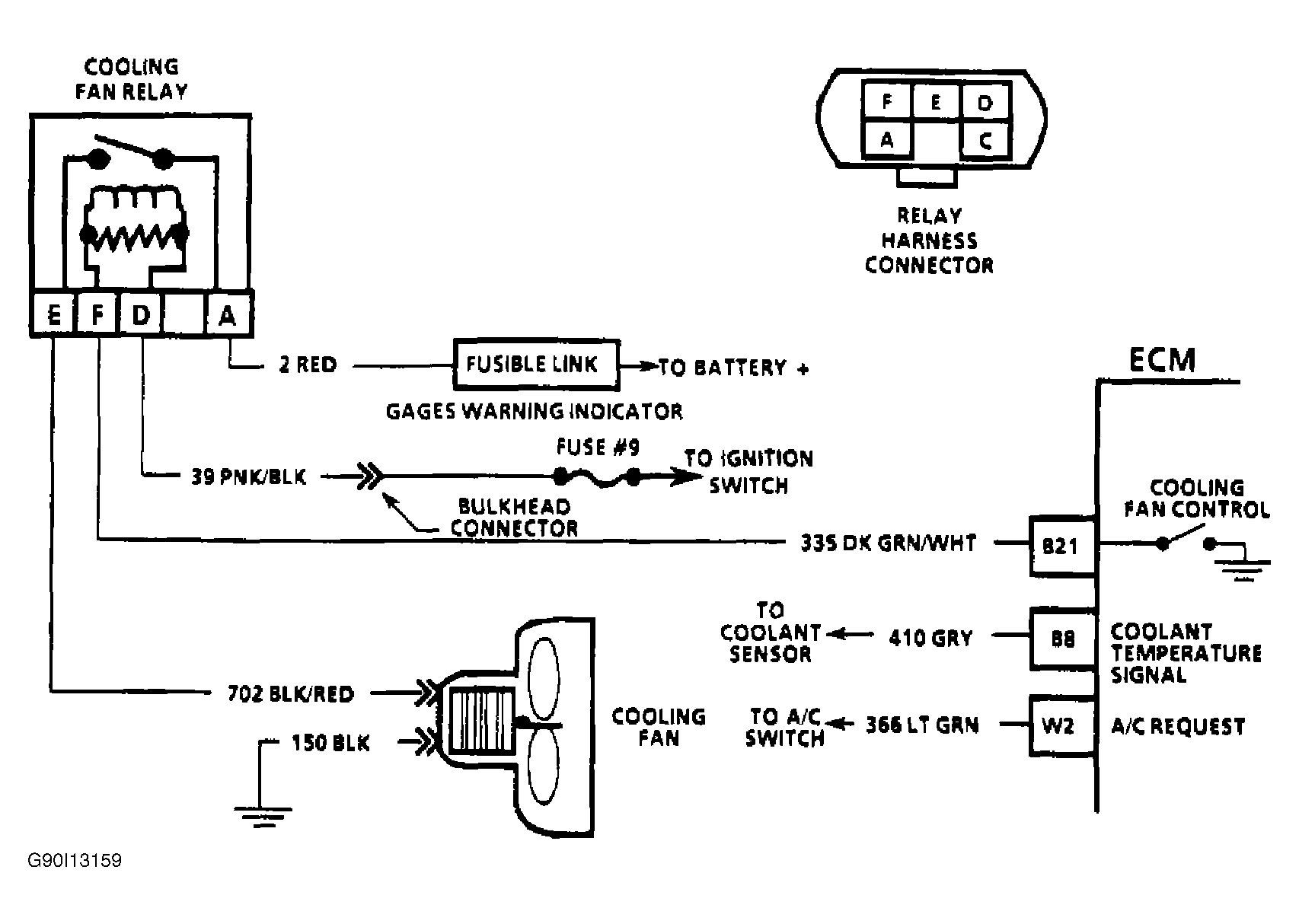

Fig 3: Beretta & Corsica 2.2L Cooling Fan Schematic

G90I13159

Courtesy of GENERAL MOTORS CORP.

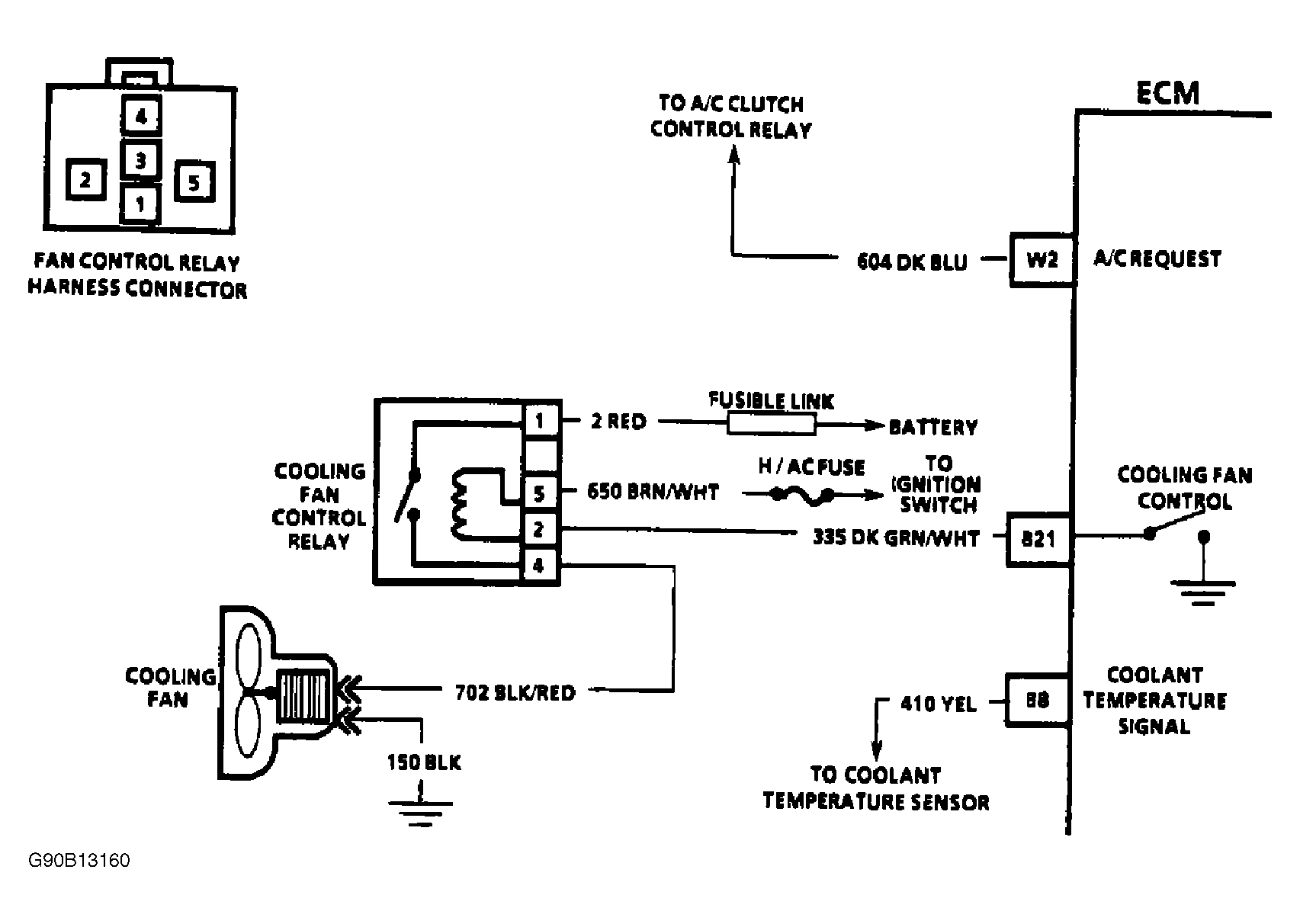

Fig 4: Cavalier 2.2L Cooling Fan Schematic

G90B13160

Courtesy of GENERAL MOTORS CORP.

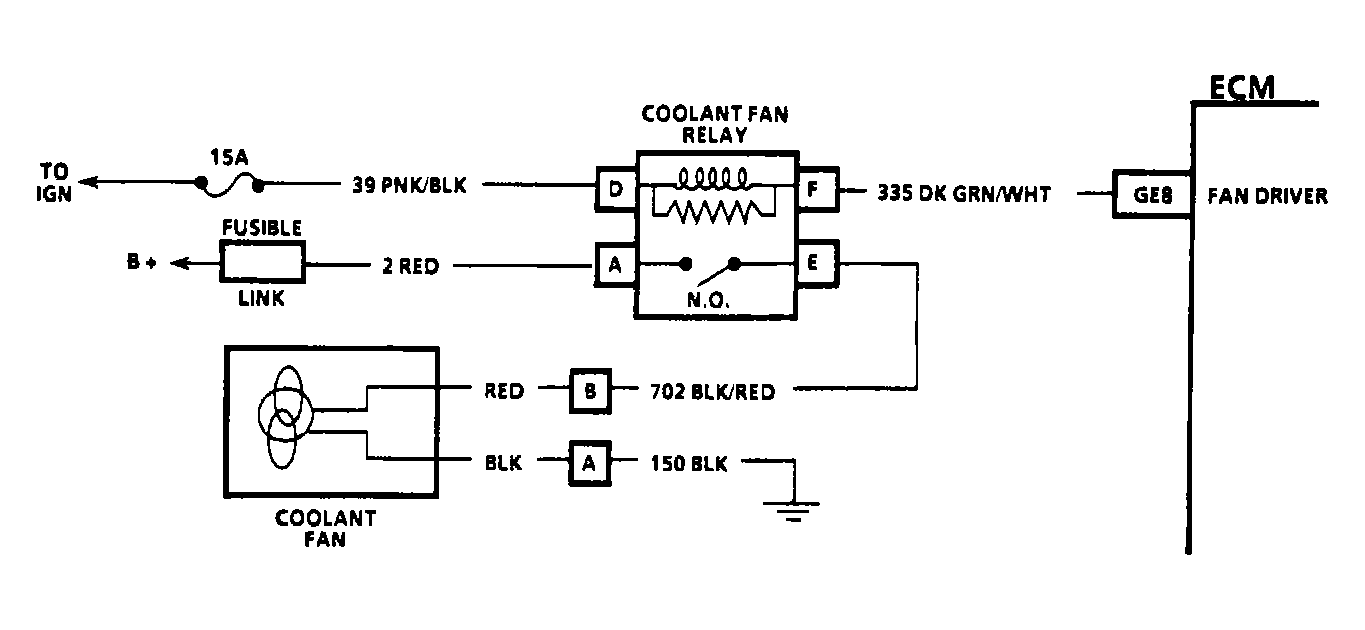

Fig 5: Beretta 2.3L Cooling Fan Schematic

G90C13161

Courtesy of GENERAL MOTORS CORP.

Fig 6: Calais, Grand Am & Skylark 2.3L Cooling Fan Schematic

G90D13162

Courtesy of GENERAL MOTORS CORP.

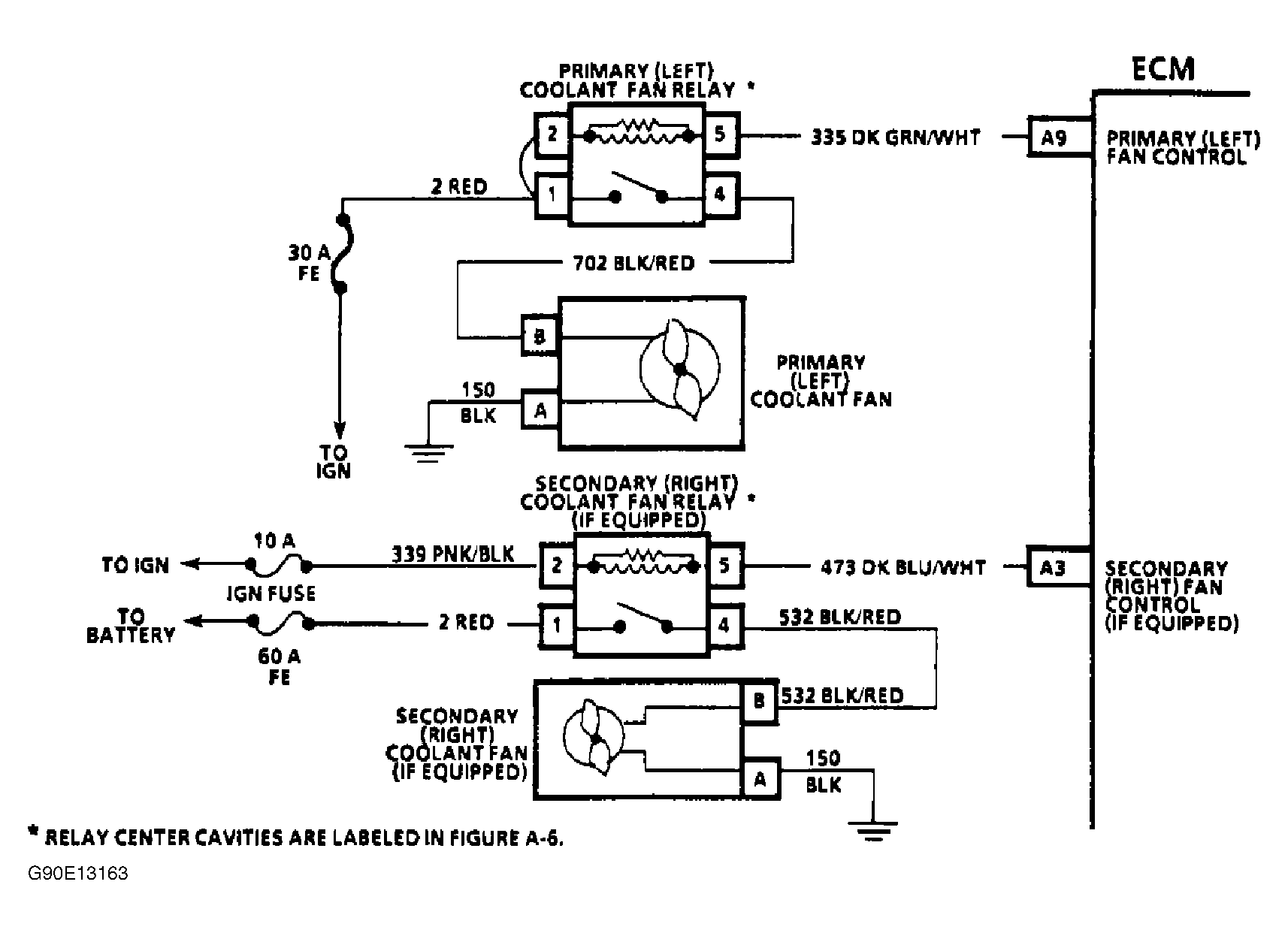

Fig 7: Cutlass Supreme & Grand Prix 2.3L Cooling Fan Schematic

G90E13163

Courtesy of GENERAL MOTORS CORP.

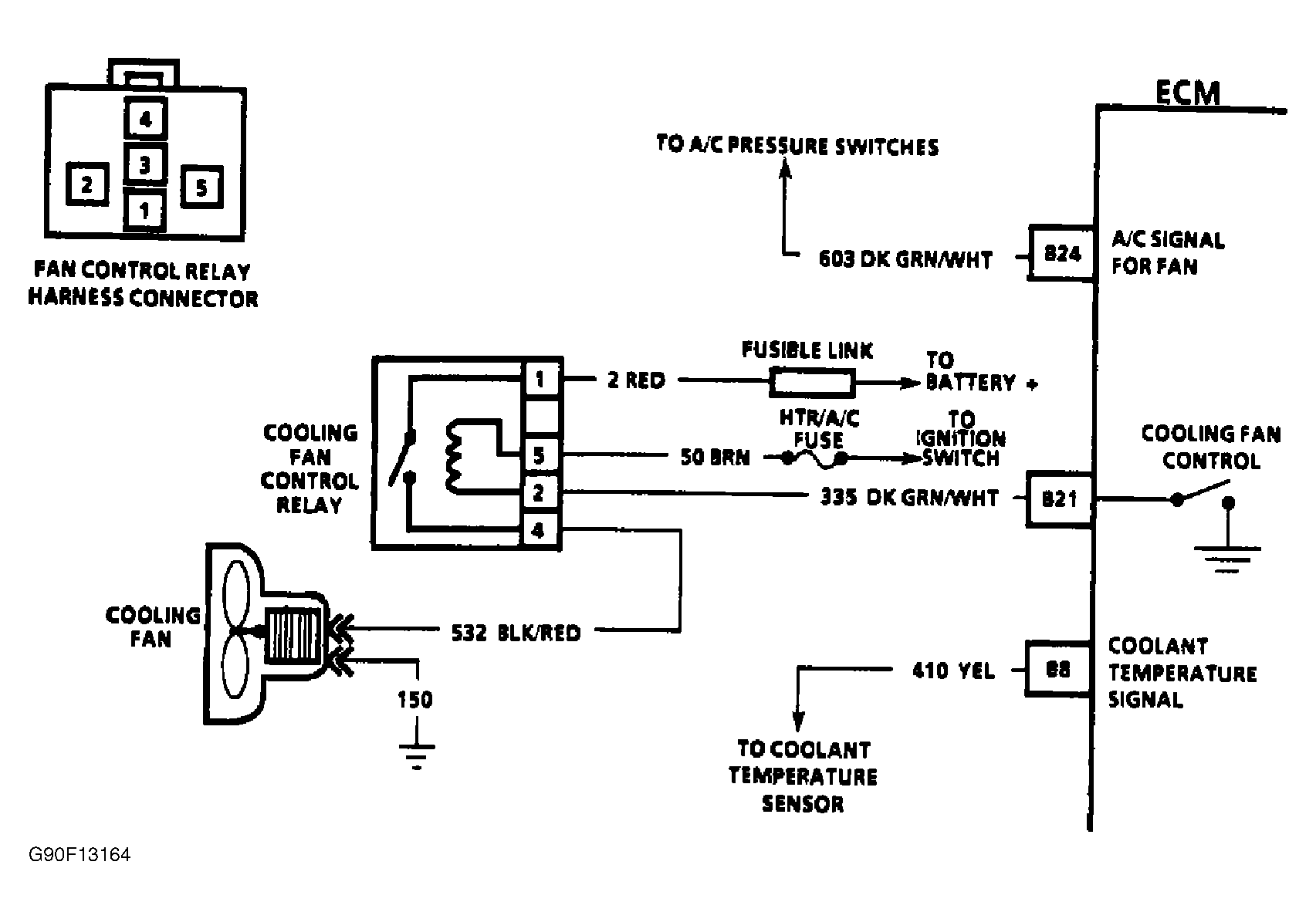

Fig 8: Cutlass Calais, Grand Am & Skylark 2.5L Cooling Fan Schematic

G90F13164

Courtesy of GENERAL MOTORS CORP.

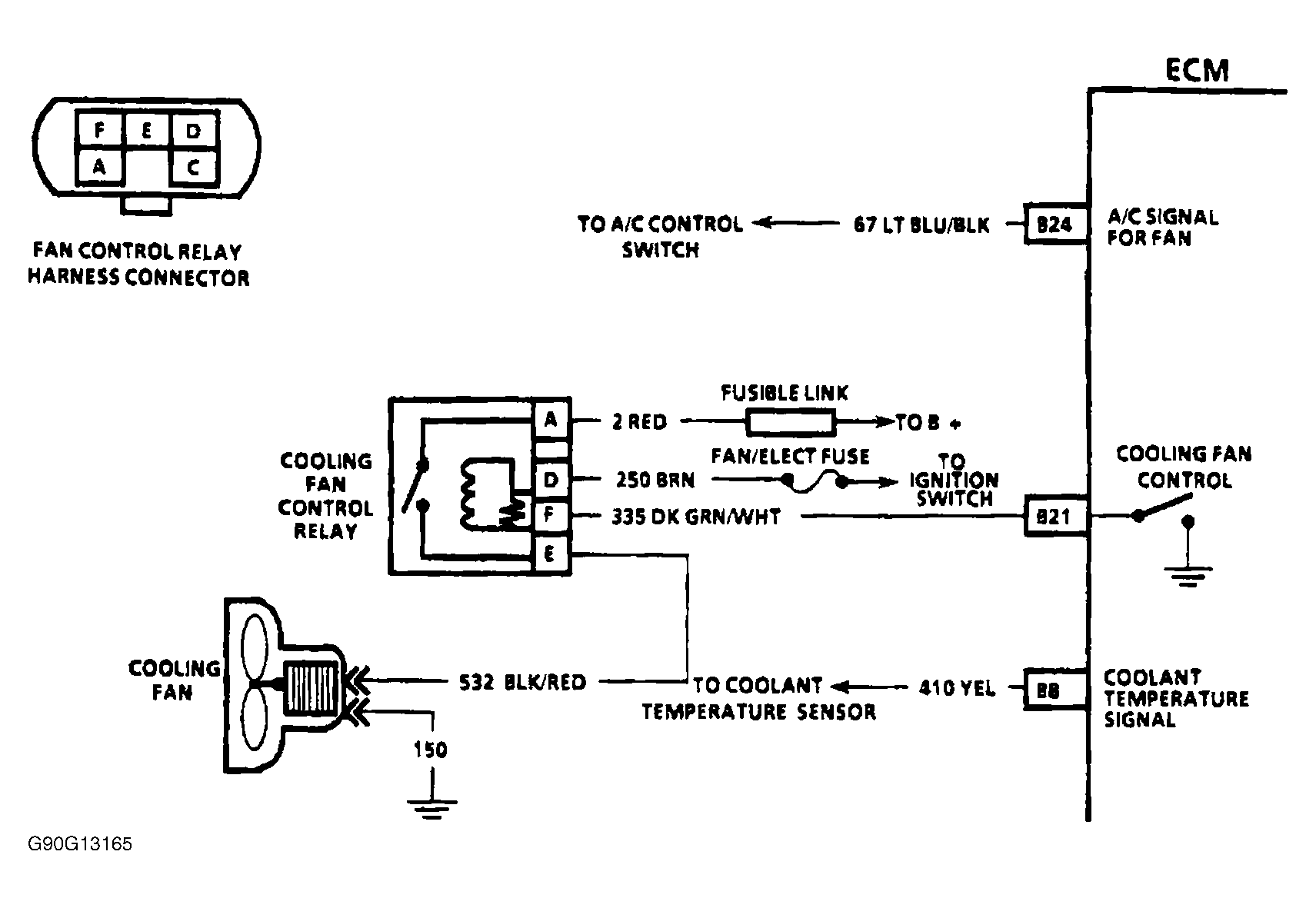

Fig 9: Celebrity, Century & Cutlass Cruiser 2.5L Cooling Fan Schematic

G90G13165

Courtesy of GENERAL MOTORS CORP.

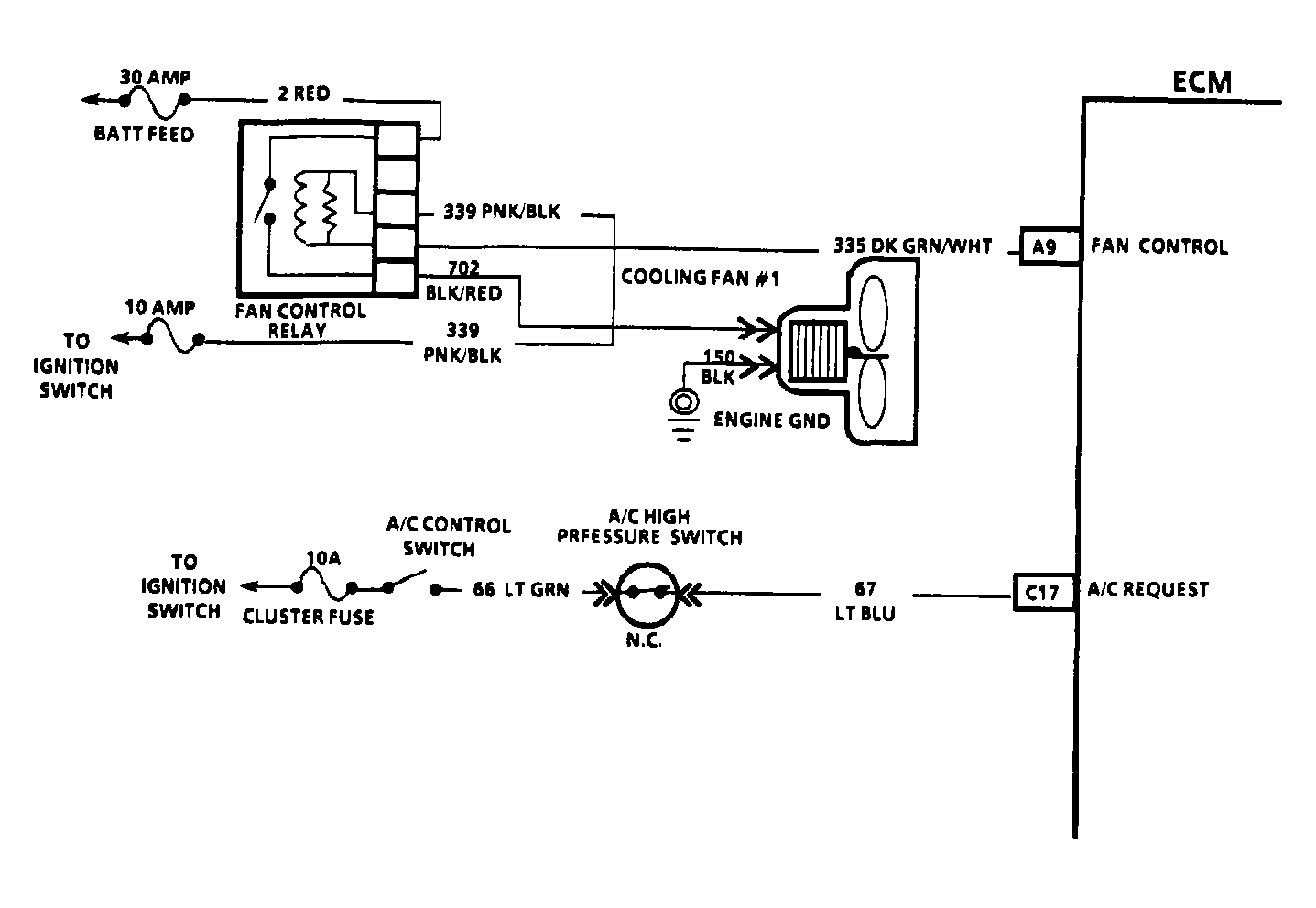

Fig 10: Lumina 2.5L Cooling Fan Schematic

G90H13166

Courtesy of GENERAL MOTORS CORP.

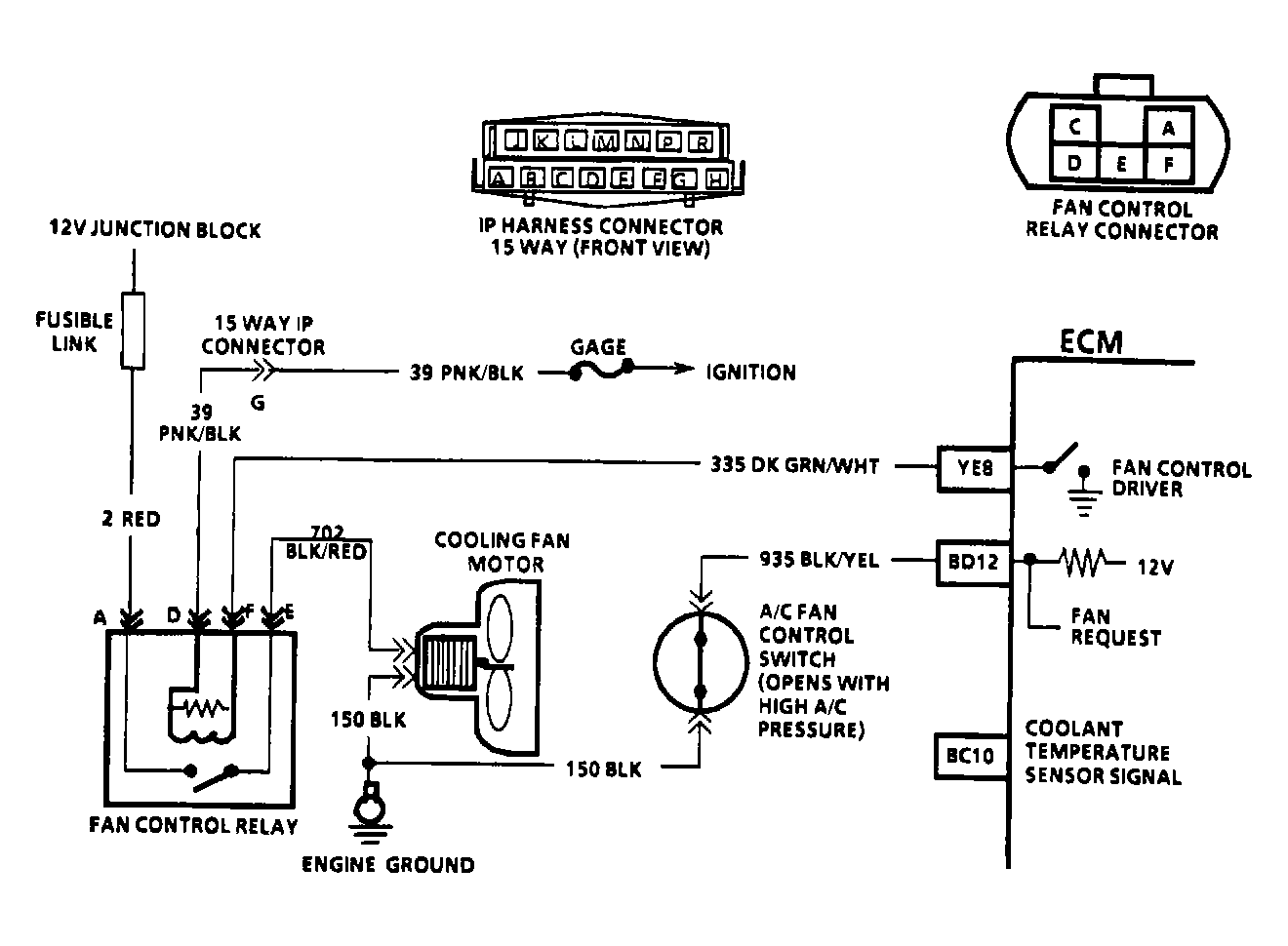

Fig 11: Beretta & Corsica 3.1L Cooling Fan Schematic

G90I13167

Courtesy of GENERAL MOTORS CORP.

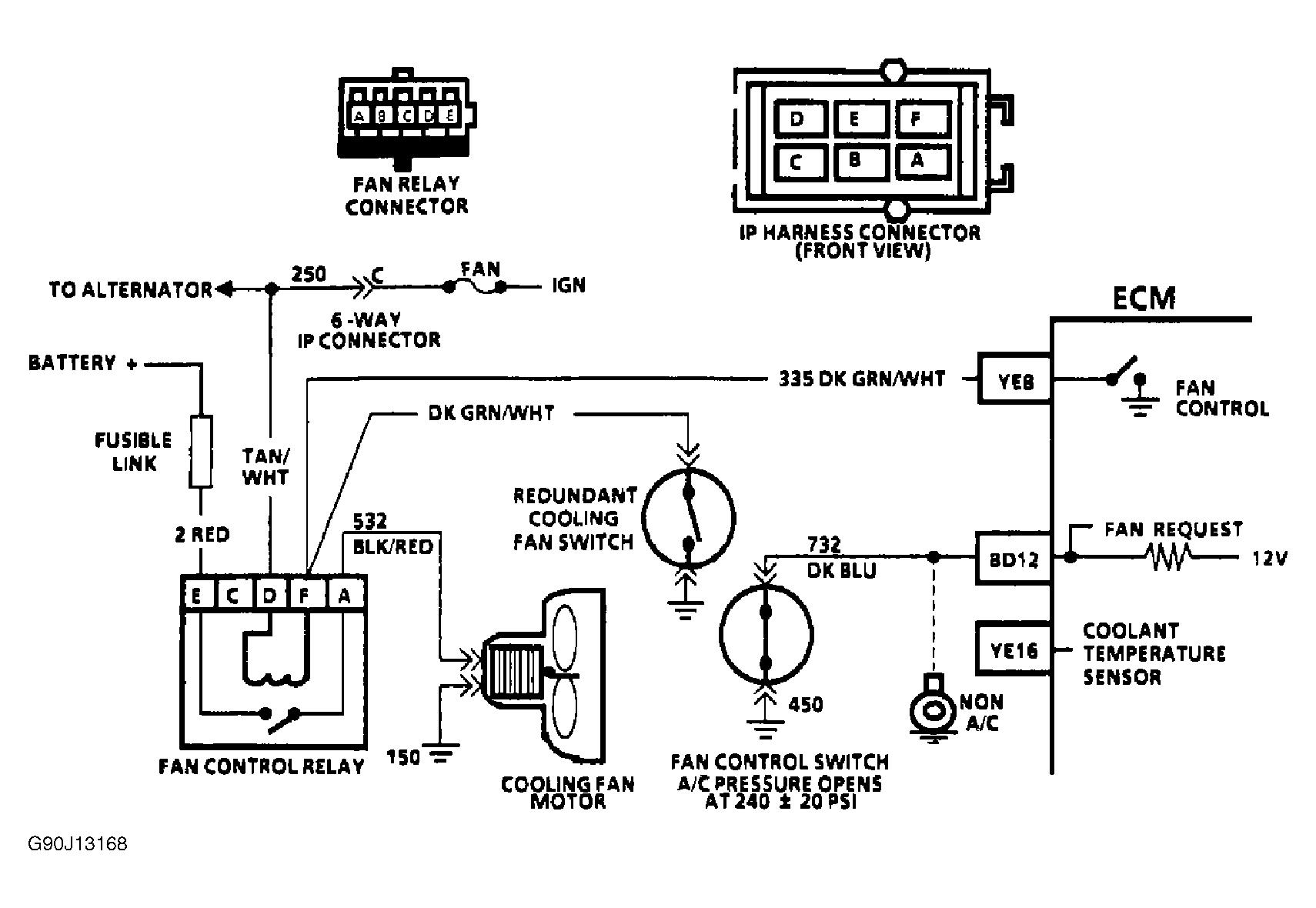

Fig 12: Camaro & Firebird 3.1L Cooling Fan Schematic

G90J13168

Courtesy of GENERAL MOTORS CORP.

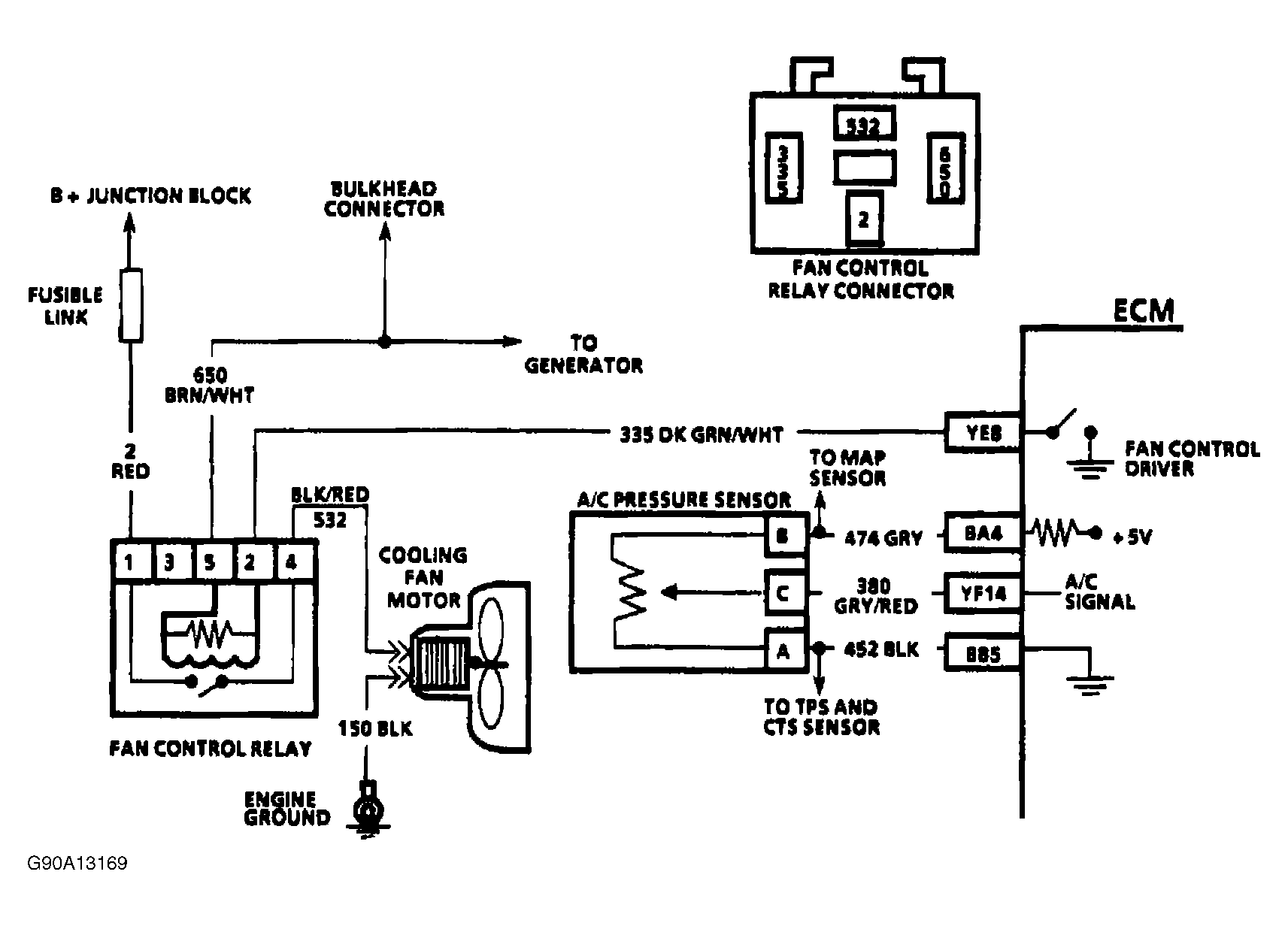

Fig 13: Cavalier 3.1L Cooling Fan Schematic

G90A13169

Courtesy of GENERAL MOTORS CORP.

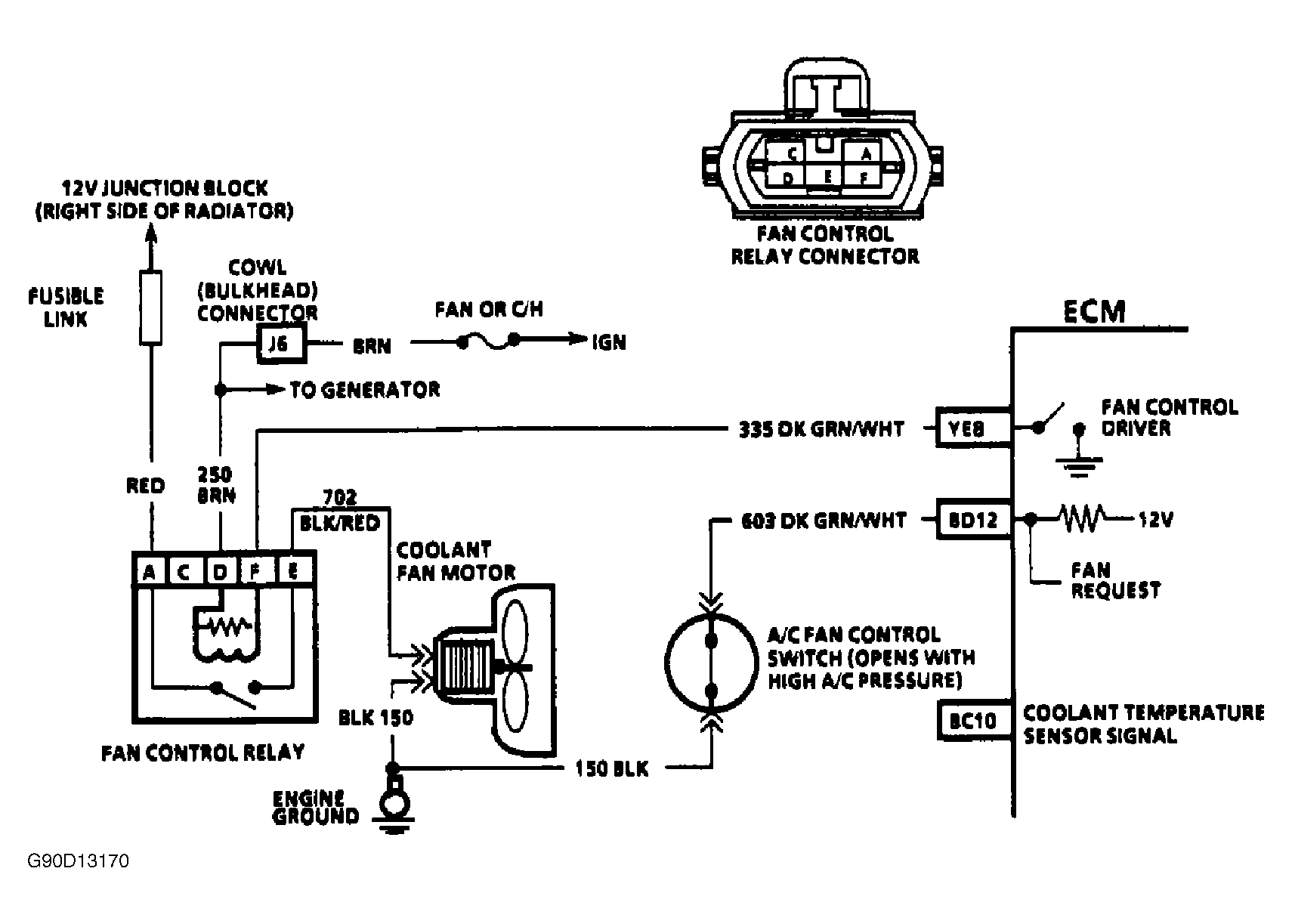

Fig 14: Celebrity & 6000 3.1L Cooling Fan Schematic

G90D13170

Courtesy of GENERAL MOTORS CORP.

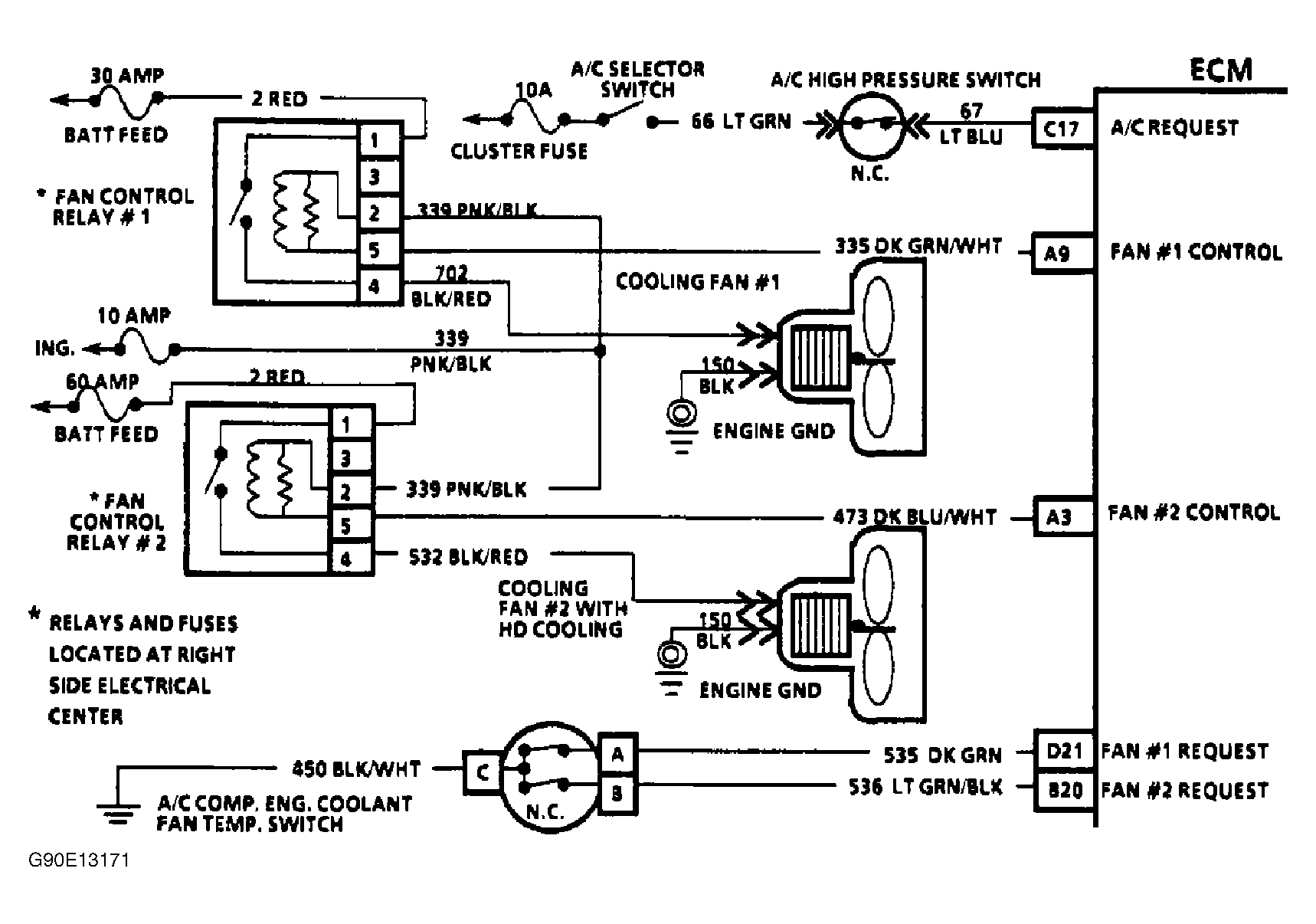

Fig 15: Cutlass Supreme, Grand Prix (Except Turbo), Lumina & Regal 3.1L Cooling Fan Schematic

G90E13171

Courtesy of GENERAL MOTORS CORP.

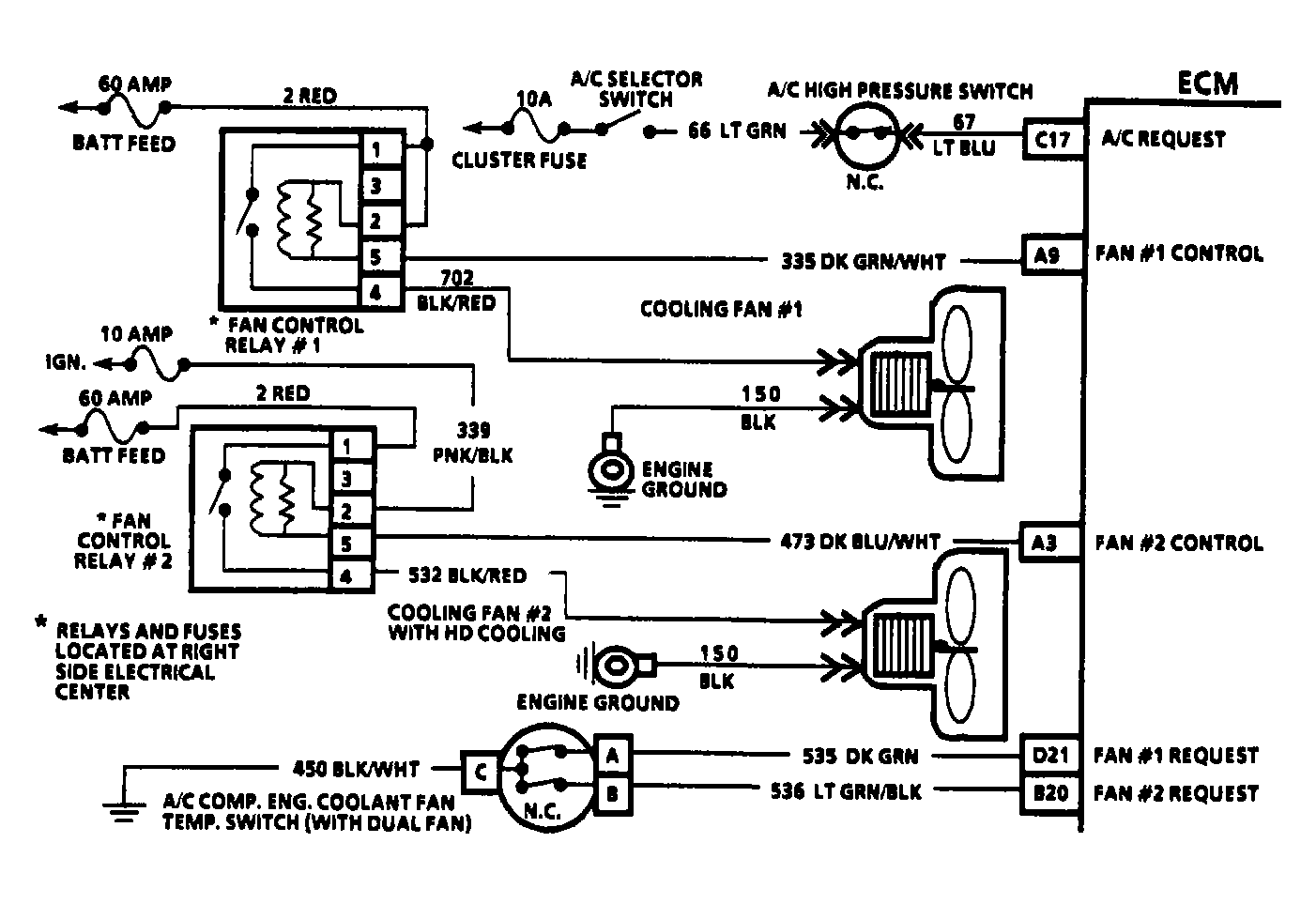

Fig 16: Grand Prix 3.1L Turbo Cooling Fan Schematic

G90F13172

Courtesy of GENERAL MOTORS CORP.

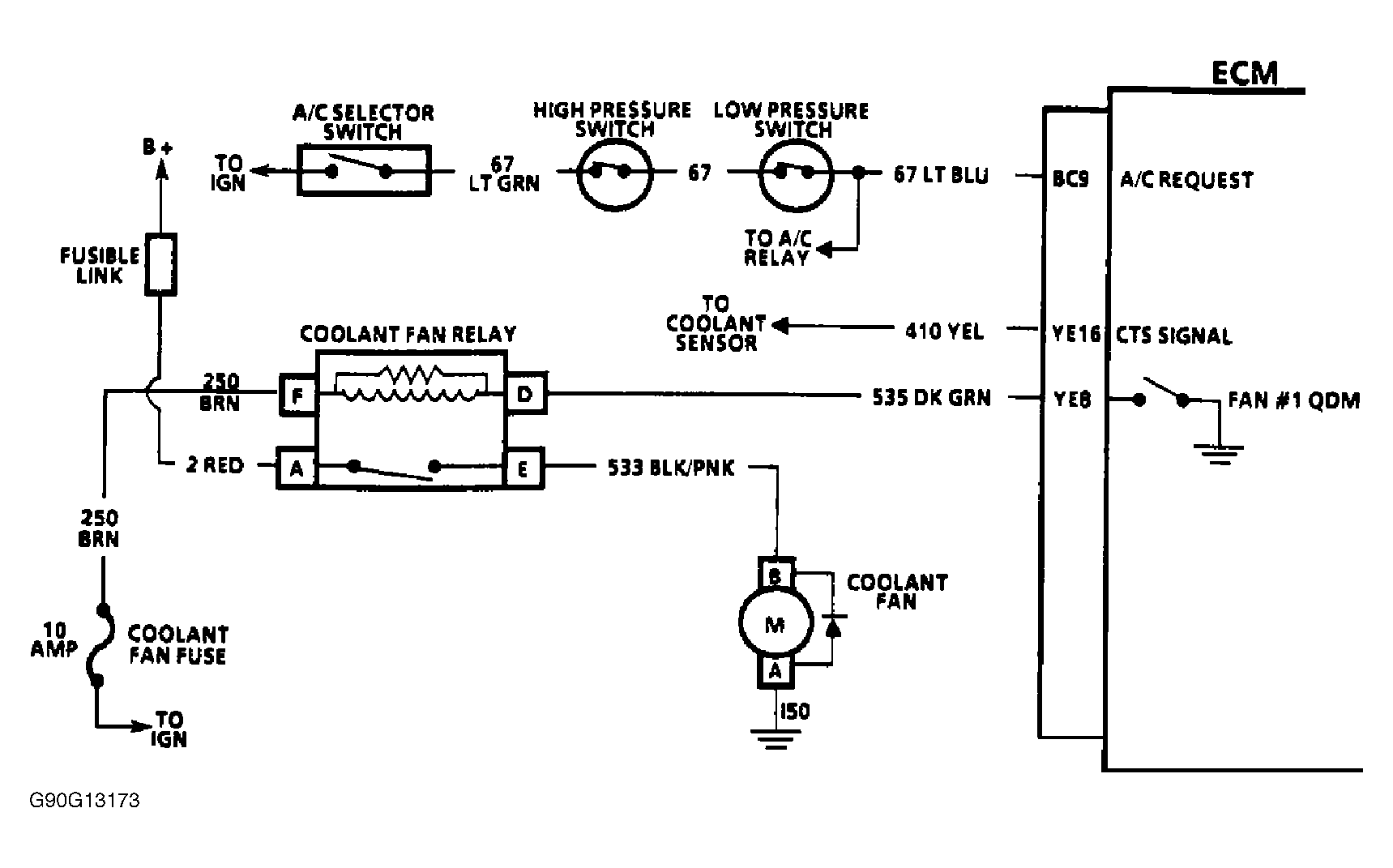

Fig 17: Century 3.3L Cooling Fan Schematic

G90G13173

Courtesy of GENERAL MOTORS CORP.

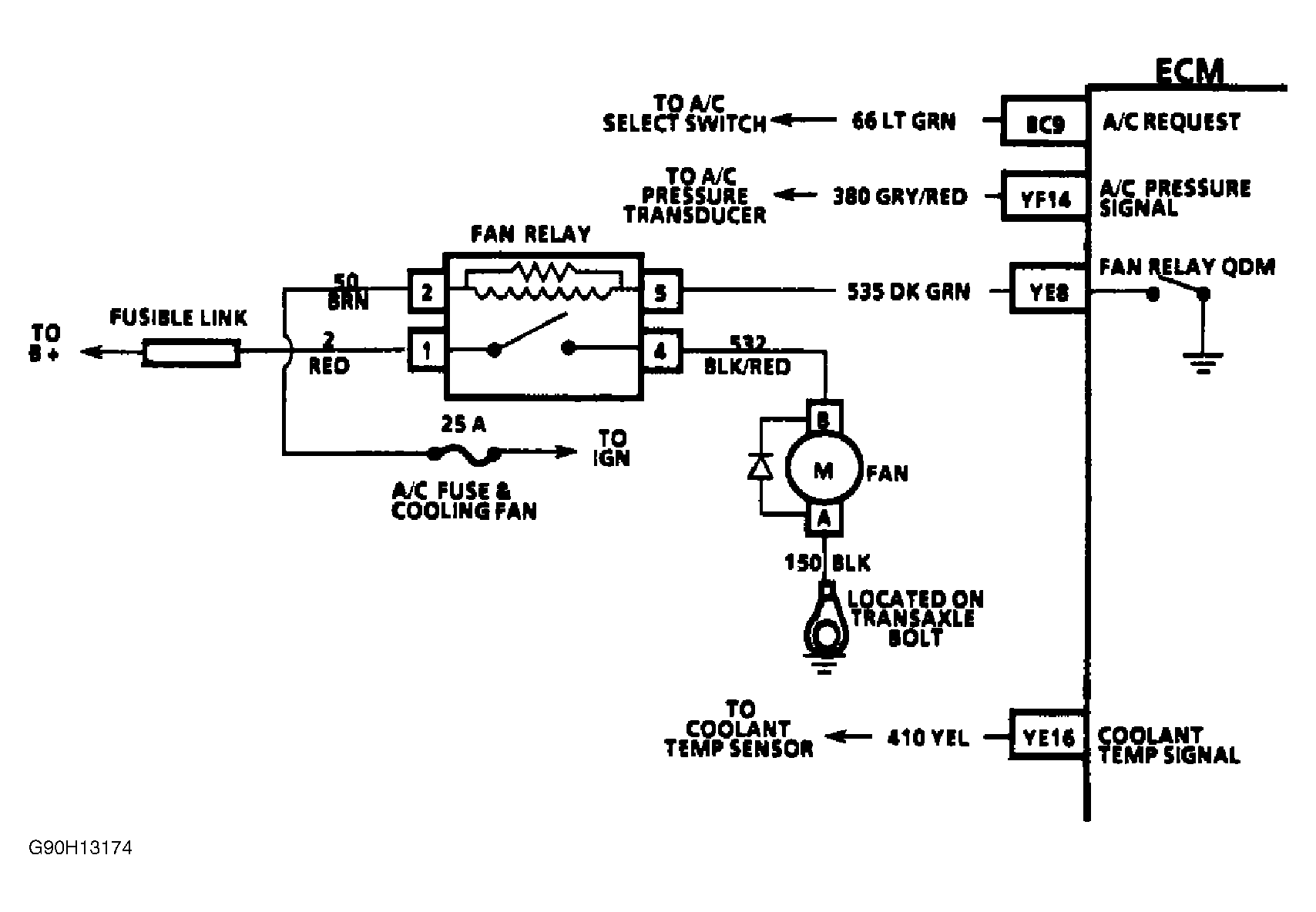

Fig 18: Skylark 3.3L Cooling Fan Schematic

G90H13174

Courtesy of GENERAL MOTORS CORP.

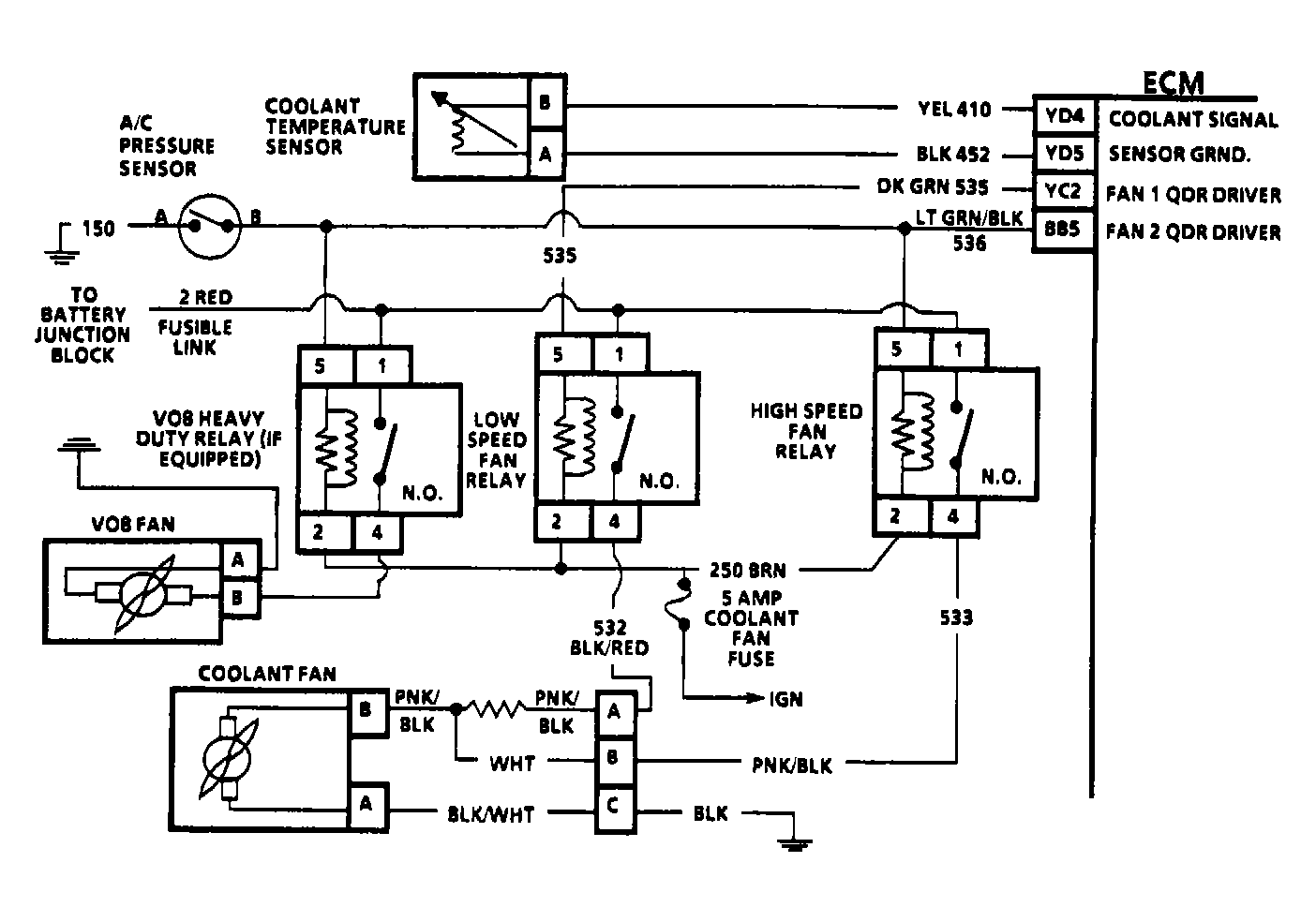

Fig 19: Bonneville, Delta 88, Electra, LeSabre, Ninety-Eight & Park Avenue 3.8L Cooling Fan Schematic

G90I13175

Courtesy of GENERAL MOTORS CORP.

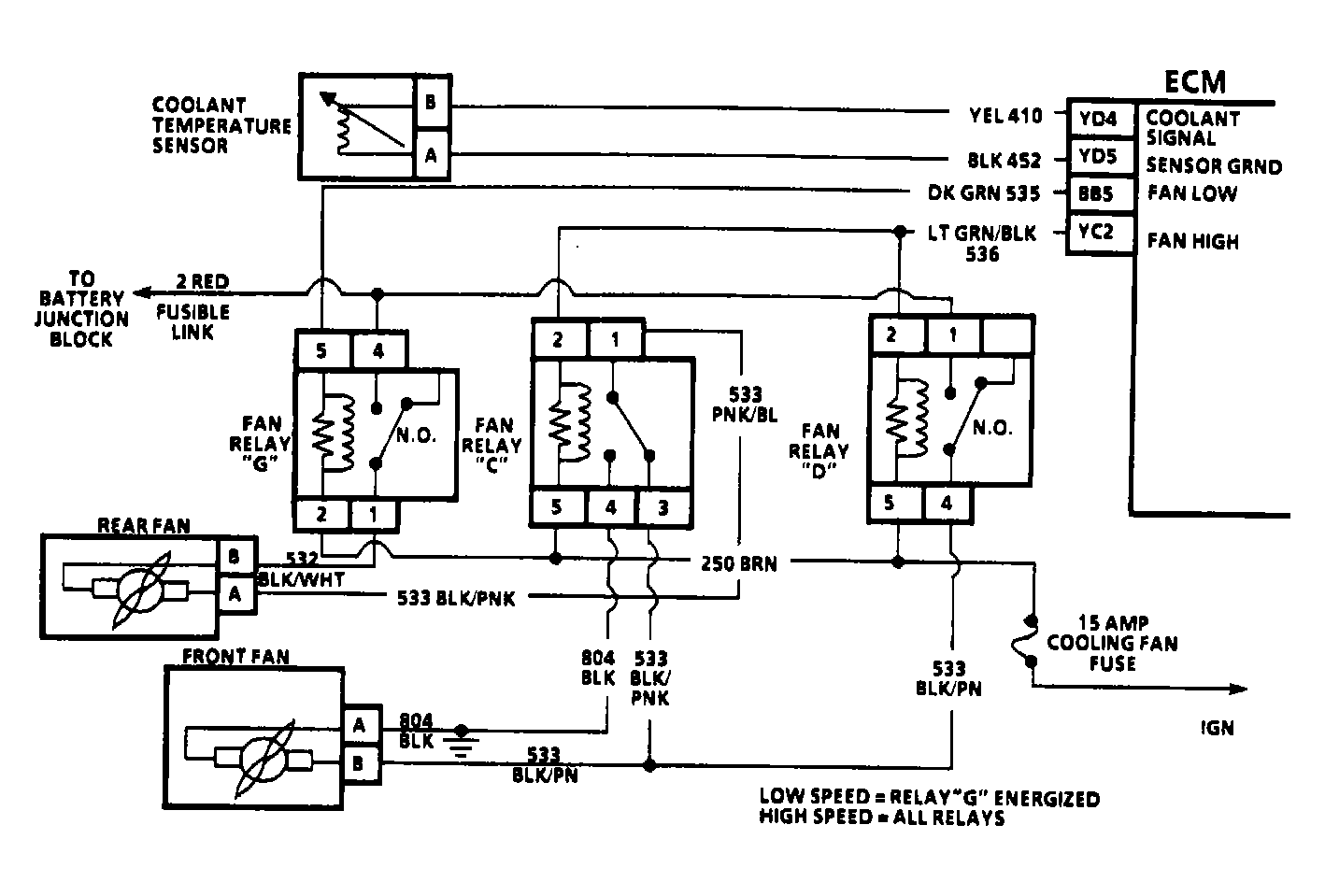

Fig 20: Reatta, Riviera, Toronado & Trofeo 3.8L Cooling Fan Schematic

G90J13176

Courtesy of GENERAL MOTORS CORP.

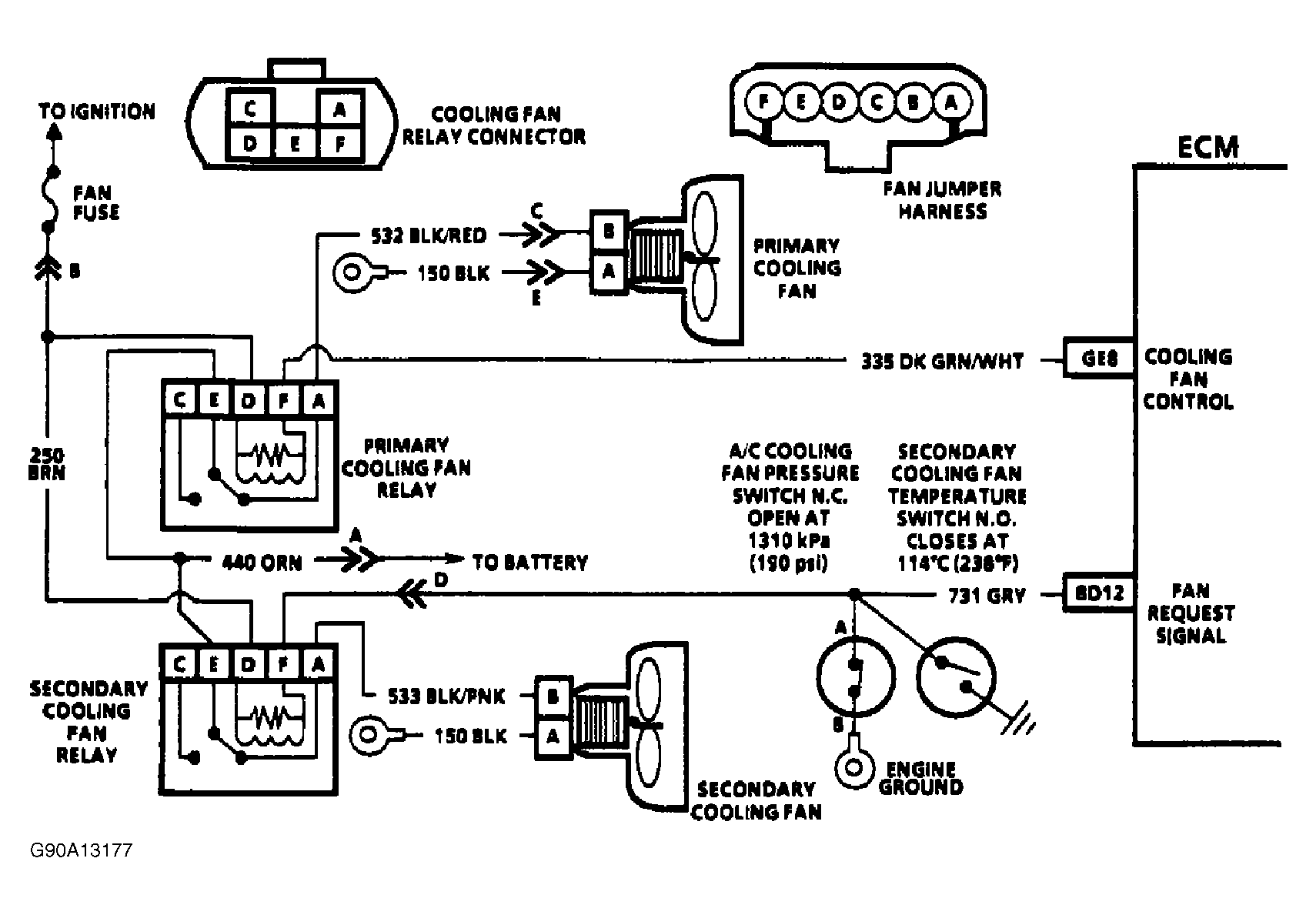

Fig 21: Camaro & Firebird 5.0L & 5.7L Cooling Fan Schematic

G90A13177

Courtesy of GENERAL MOTORS CORP.

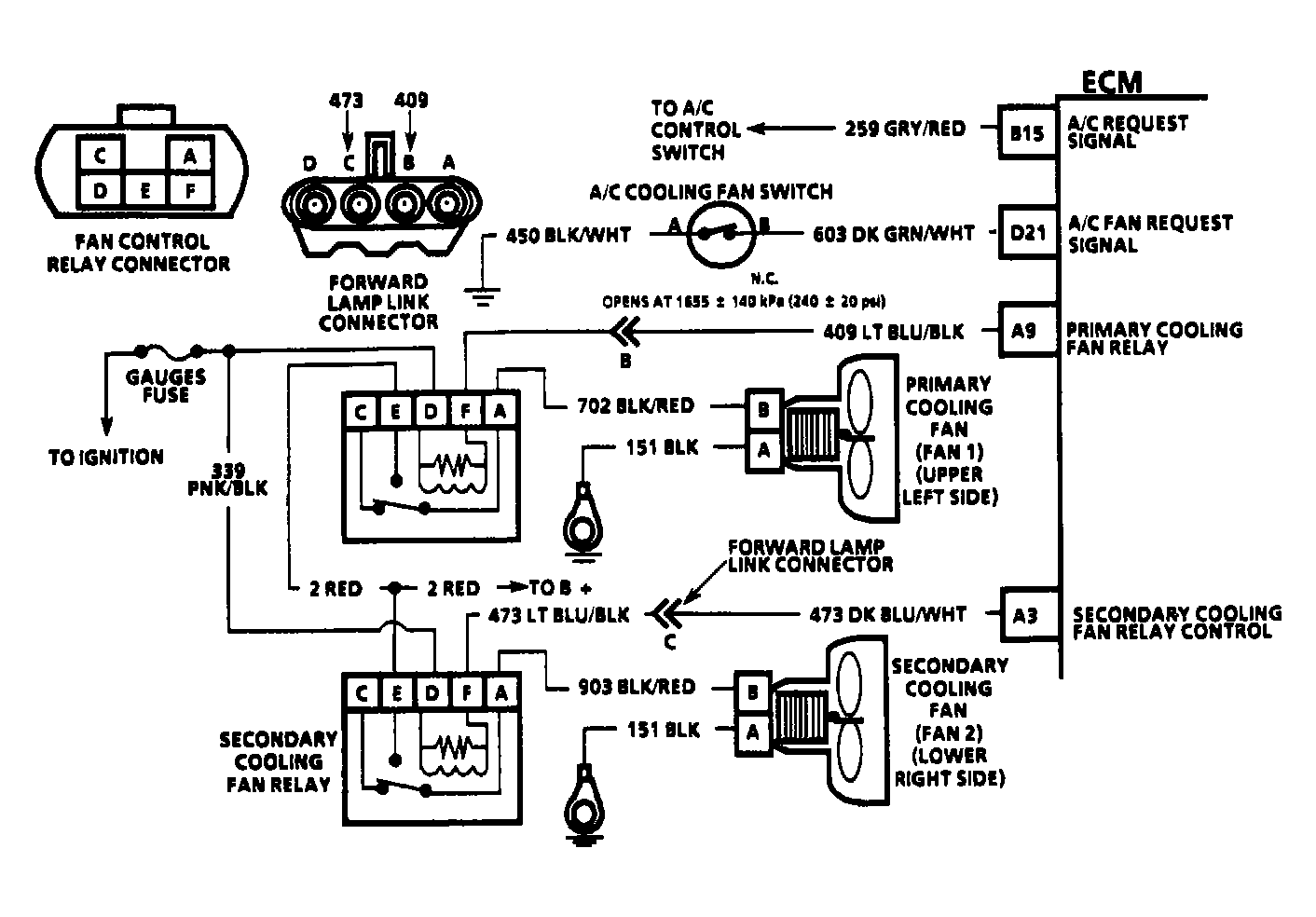

Fig 22: Corvette 5.7L Cooling Fan Schematic

G90B13178

Courtesy of GENERAL MOTORS CORP.
