Wiring Diagrams

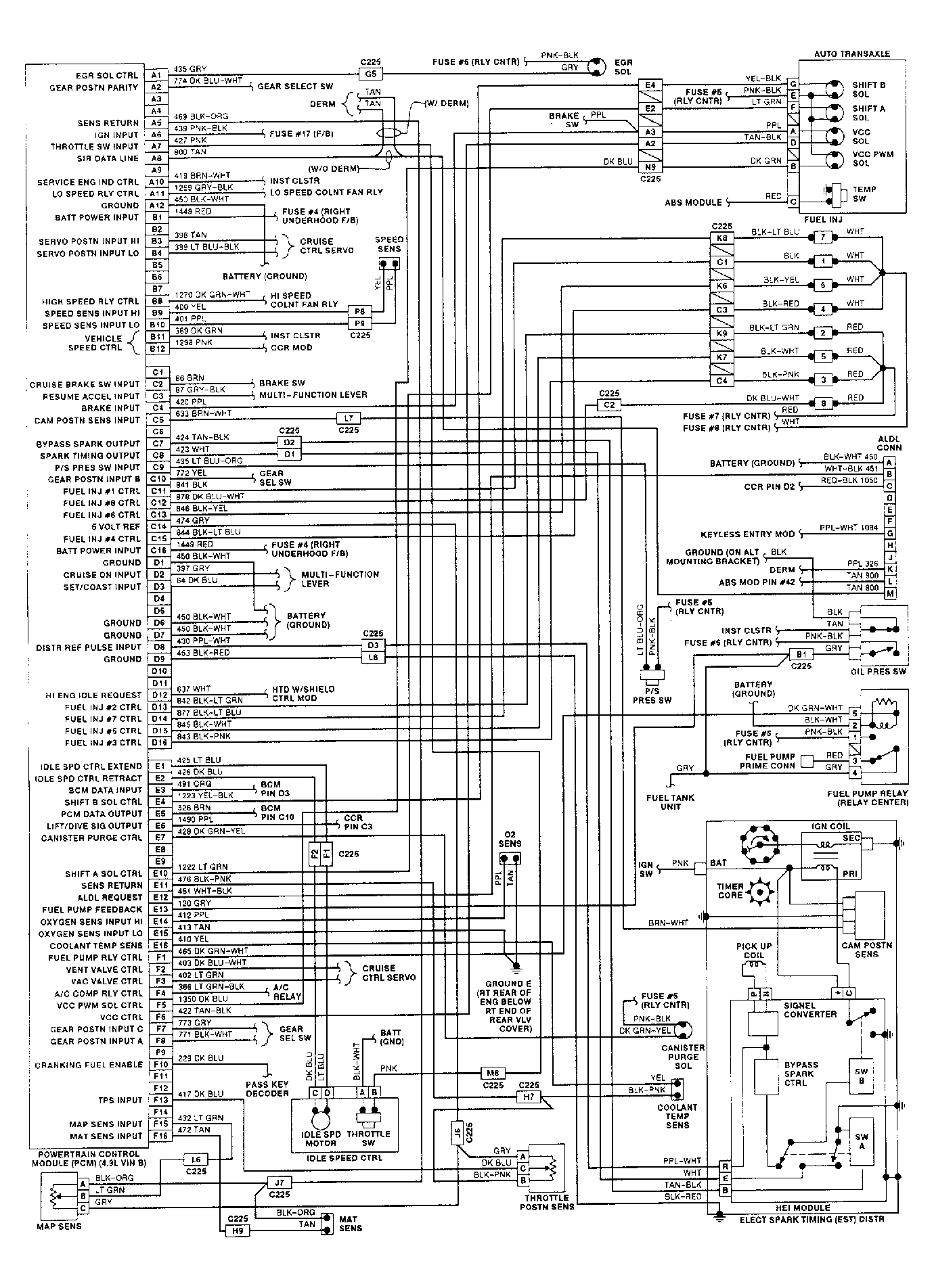

Fig 1: PCM Wiring Diagram (1 of 2), Ninety-Eight (3.8L VIN L & 1)

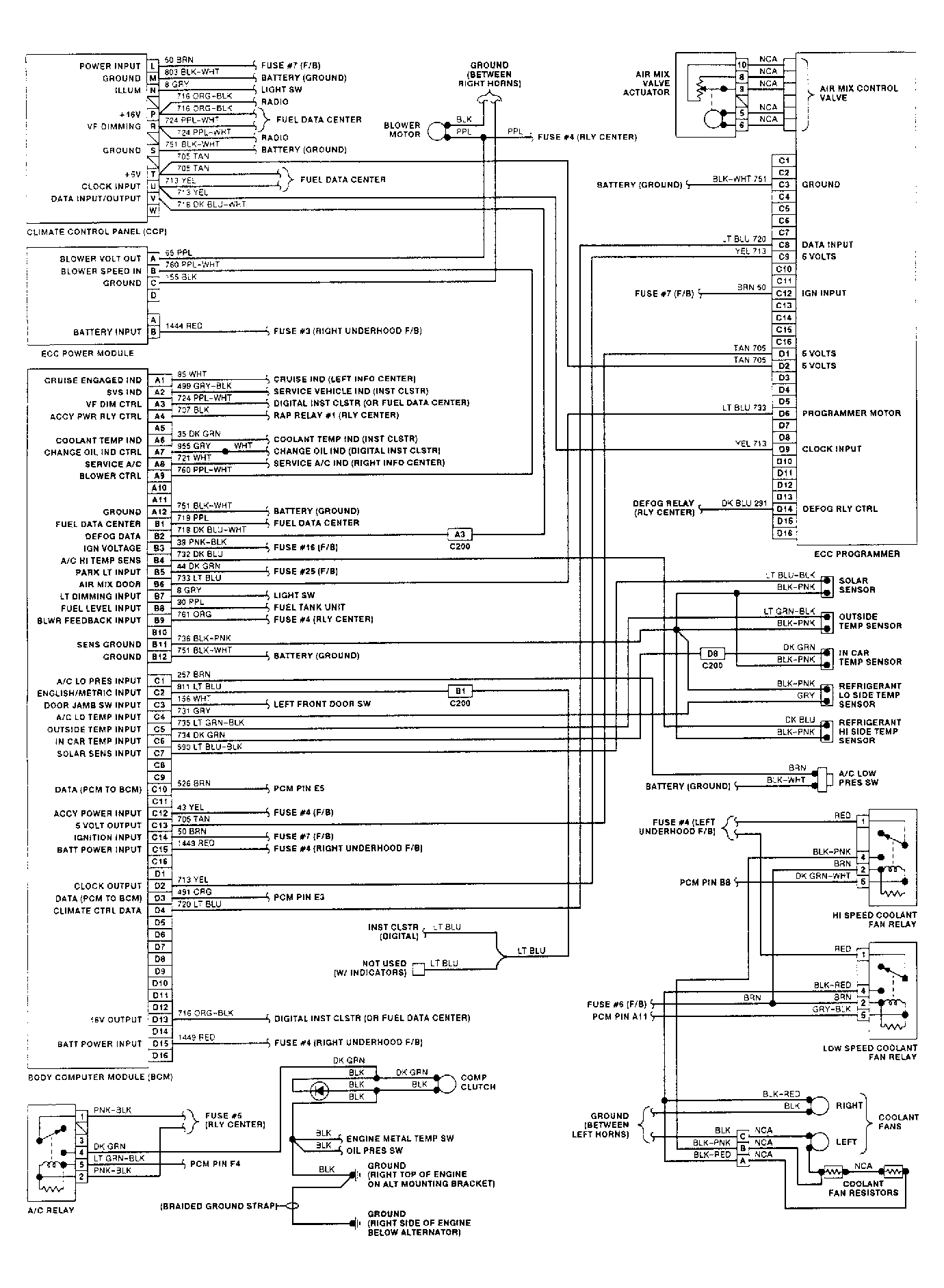

Fig 2: PCM Wiring Diagram (2 of 2), Ninety-Eight (3.8L VIN L & 1)

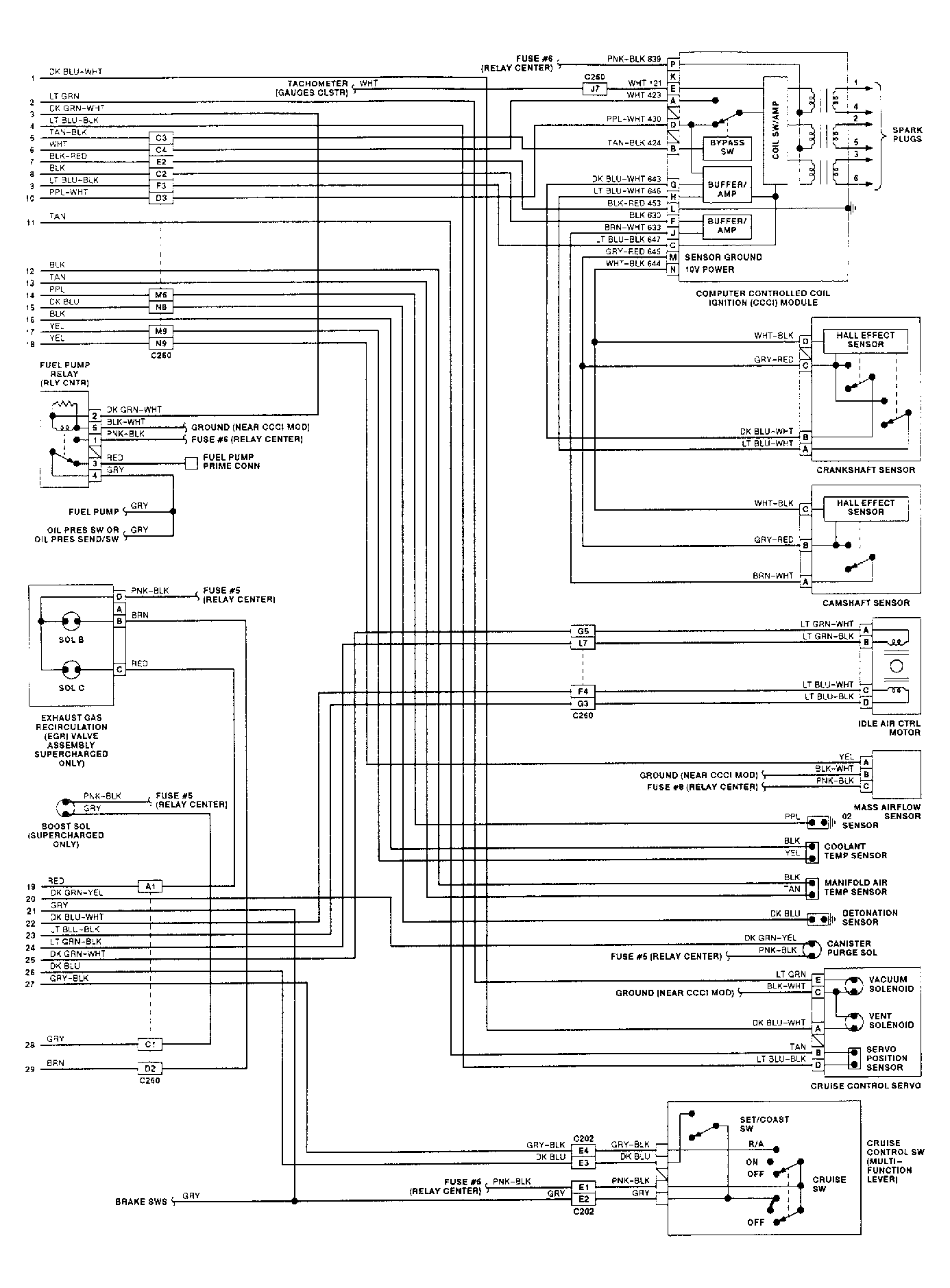

Fig 3: PCM Wiring Diagram (1 of 2), Park Avenue (3.8L VIN L & 1)

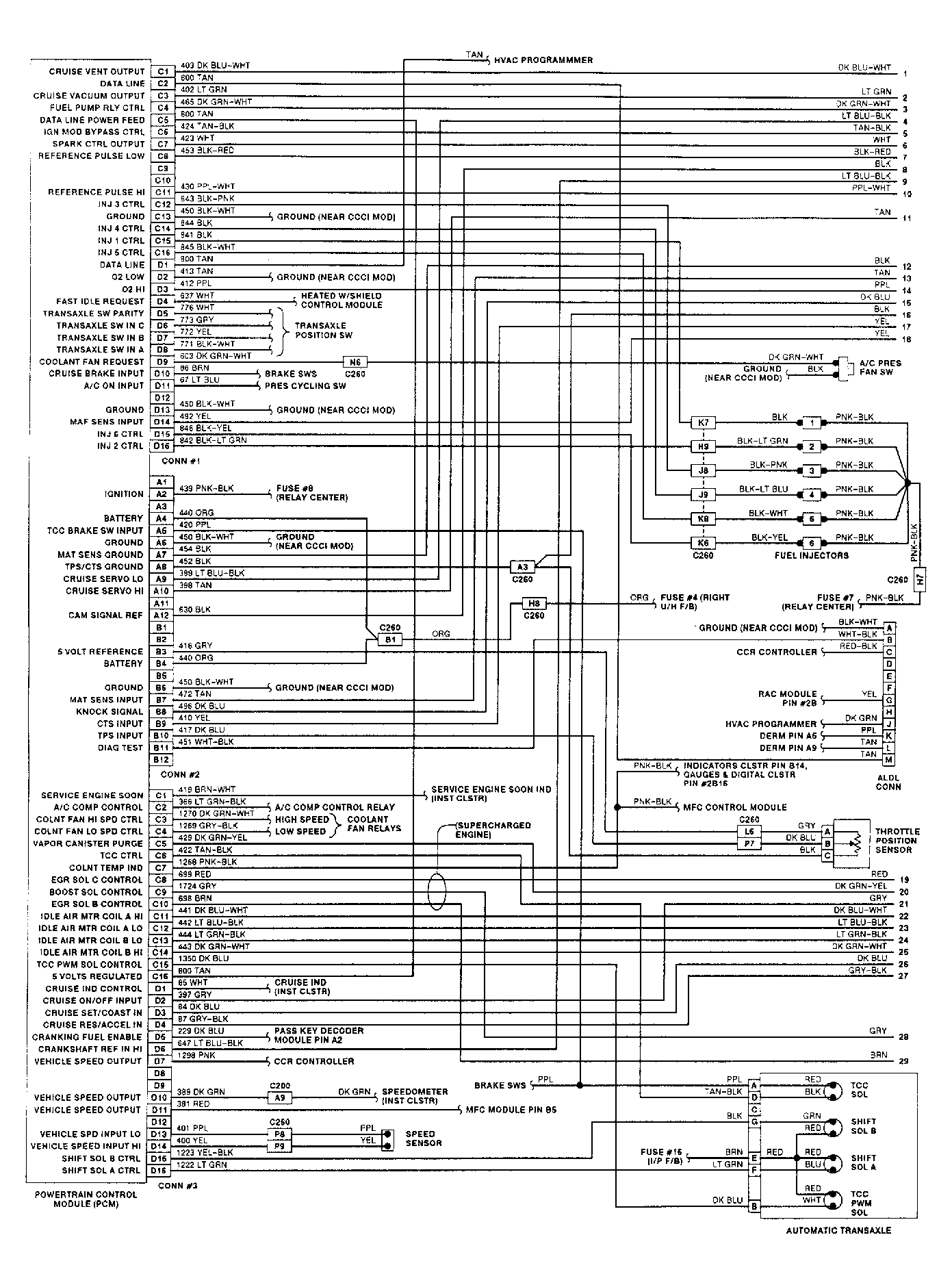

Fig 4: PCM Wiring Diagram (2 of 2), Park Avenue (3.8L VIN L & 1)

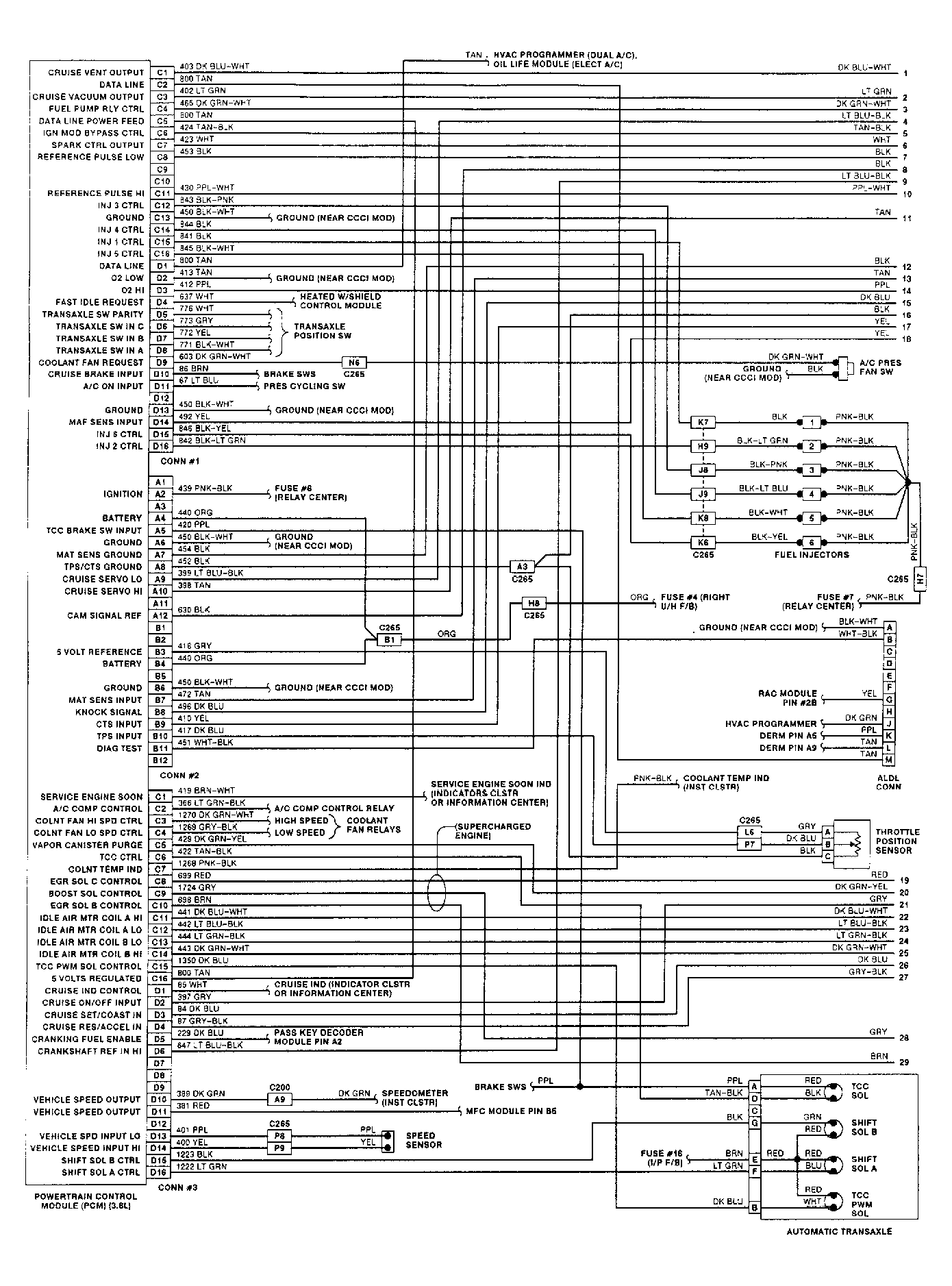

Fig 5: PCM Wiring Diagram, DeVille & Fleetwood, (VIN B)

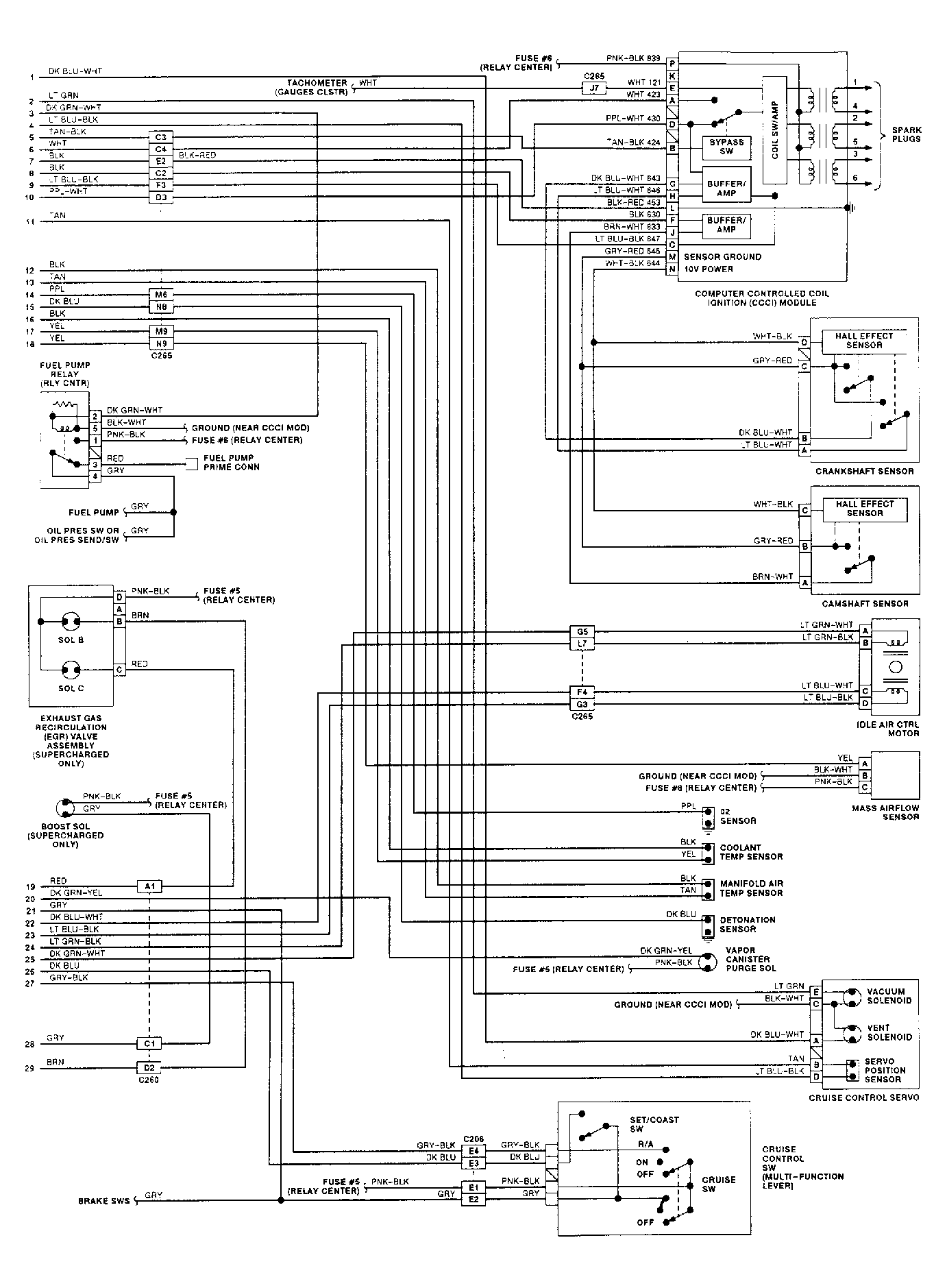

Fig 6: BCM Wiring Diagram, DeVille & Fleetwood, (VIN B)
