Component Locations

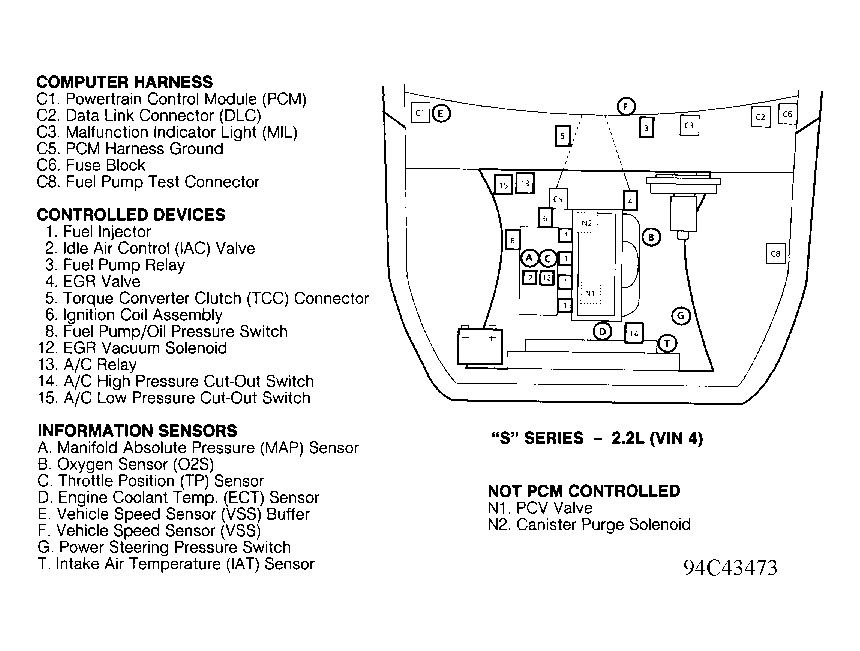

Fig 1: Component Location For "S" Series - 2.2L (VIN 4)
G94C43473Courtesy of GENERAL MOTORS CORP.

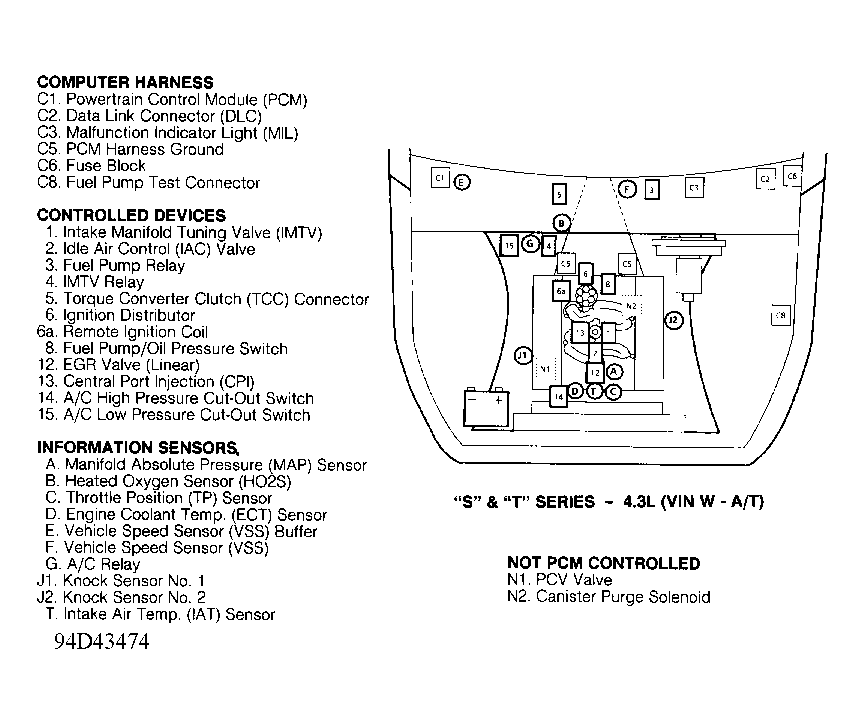

Fig 2: Component Location For "S" & "T" Series With A/T - 4.3L (VIN W)
G94D43474Courtesy of GENERAL MOTORS CORP.

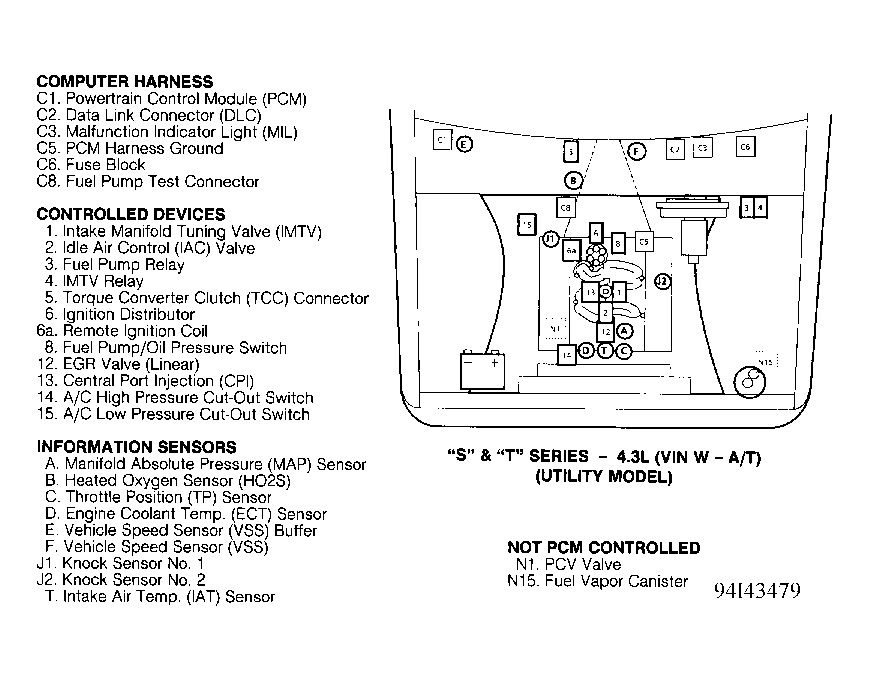

Fig 3: Component Location For "S" & "T" Series With A/T (Utility Model) - 4.3L (VIN W)
G94I43479Courtesy of GENERAL MOTORS CORP.

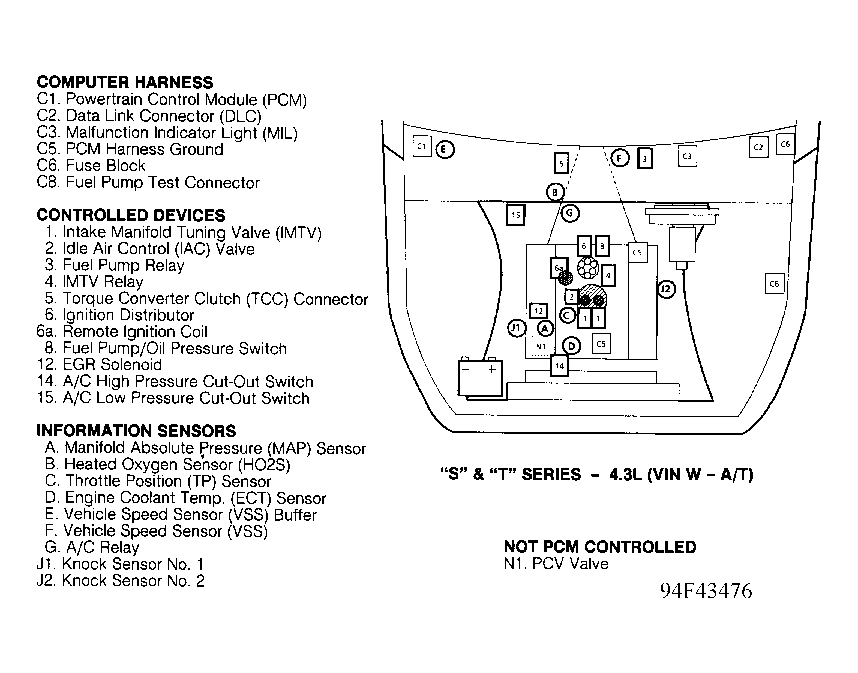

Fig 4: Component Location For "S" & "T" Series With A/T - 4.3L (VIN Z)
G94F43476Courtesy of GENERAL MOTORS CORP.

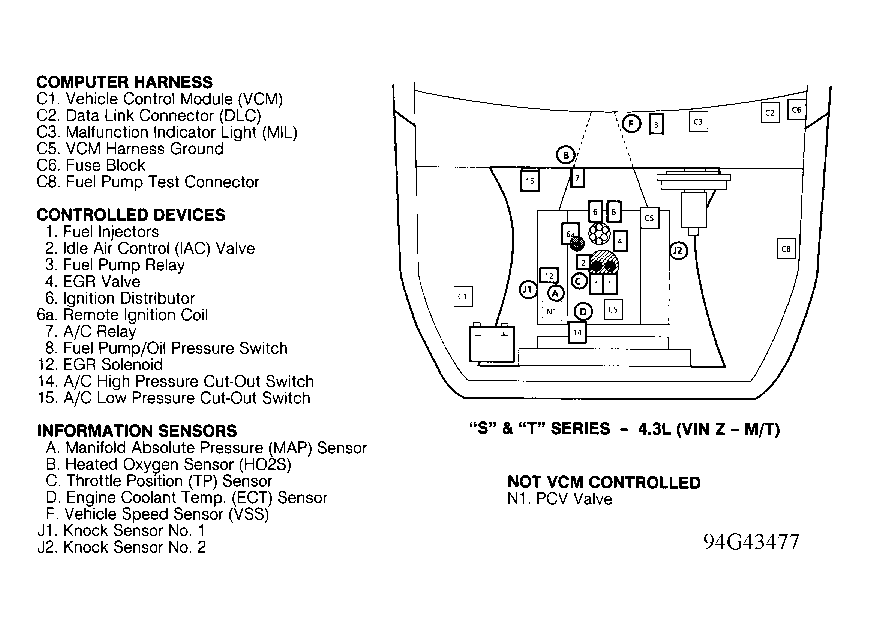

Fig 5: Component Location For "S" & "T" Series With M/T - 4.3L (VIN Z)
G94G43477Courtesy of GENERAL MOTORS CORP.

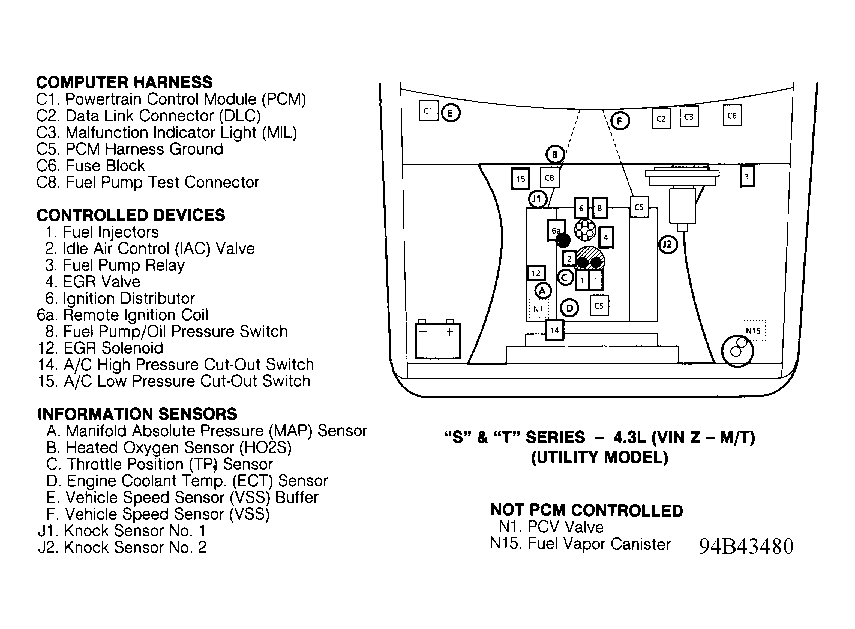

Fig 6: Component Location For "S" & "T" Series With M/T (Utility Model) - 4.3L (VIN Z)
G94B43480Courtesy of GENERAL MOTORS CORP.

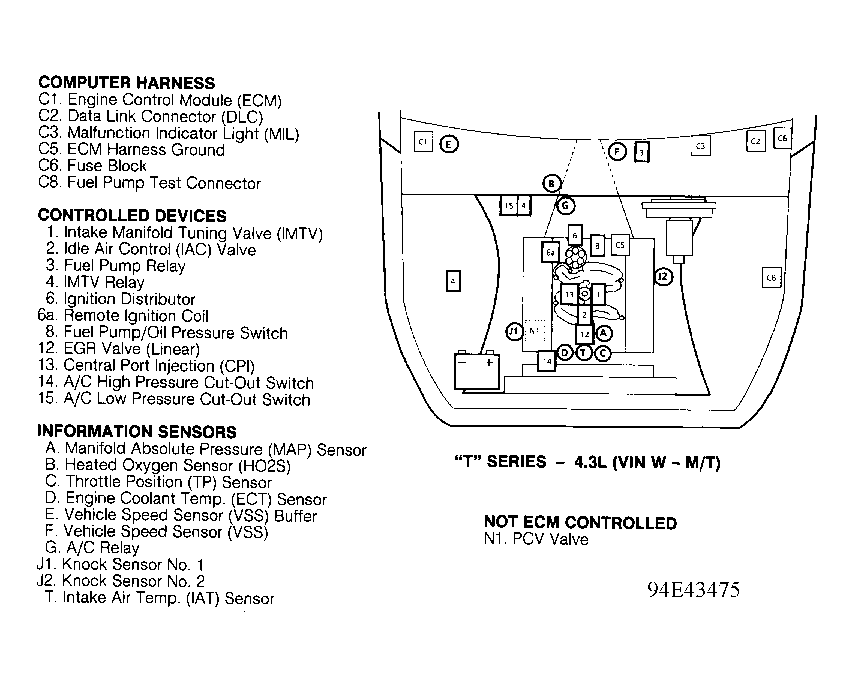

Fig 7: Component Location For "T" Series With M/T - 4.3L (VIN W)
G94E43475Courtesy of GENERAL MOTORS CORP.

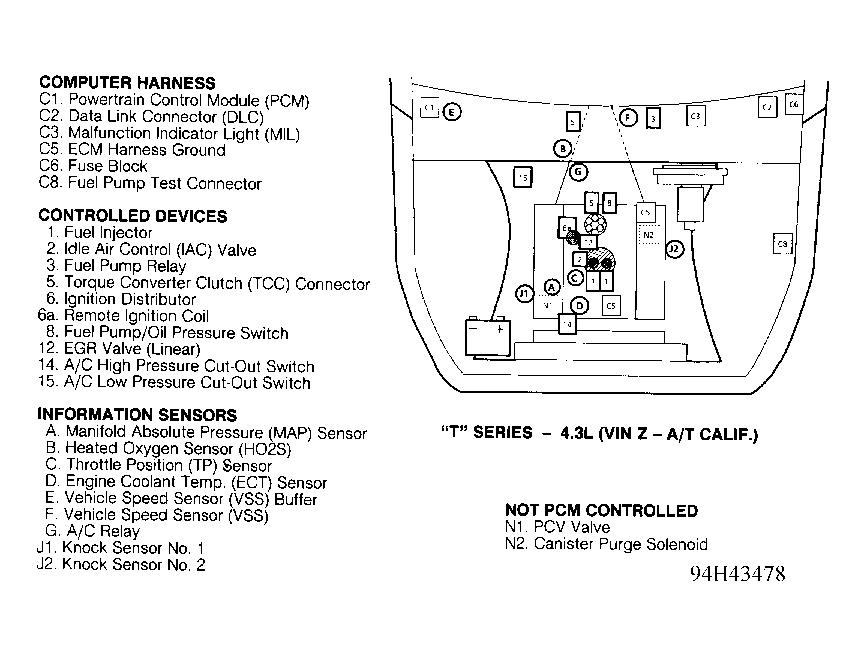

Fig 8: Component Location For "T" Series With A/T (Calif.) - 4.3L (VIN Z)
G94H43478Courtesy of GENERAL MOTORS CORP.
