Diagnostic Aids

Check for faulty connection at PCM. Check KS connector for damage. Insure KS is installed properly.

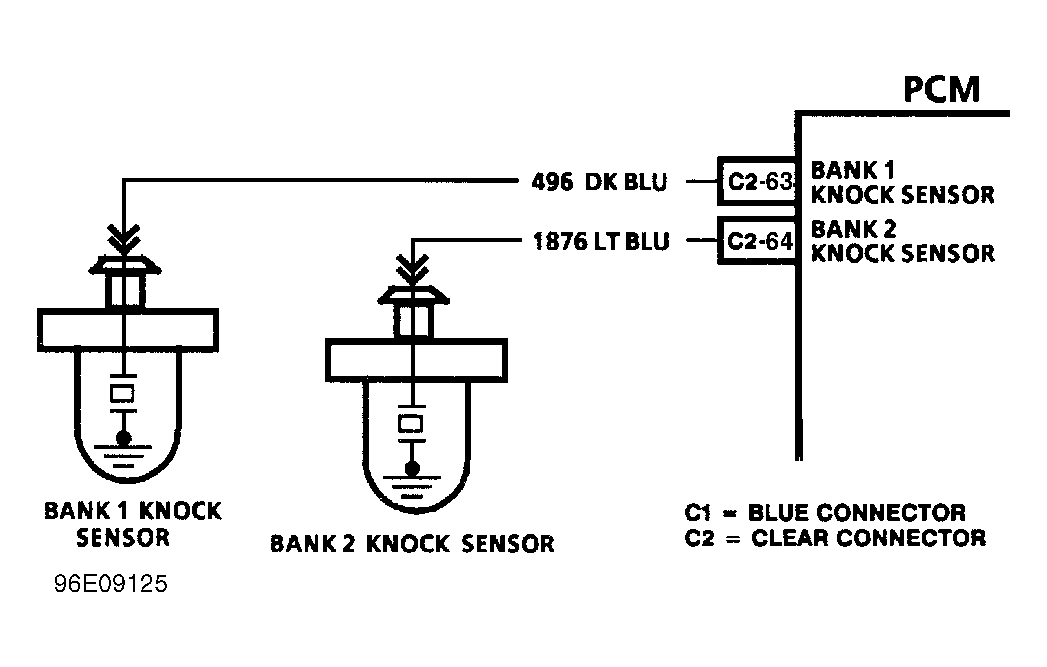

Fig 1: DTC P0325 Schematic
G96E09125
