C100 To C603: C209

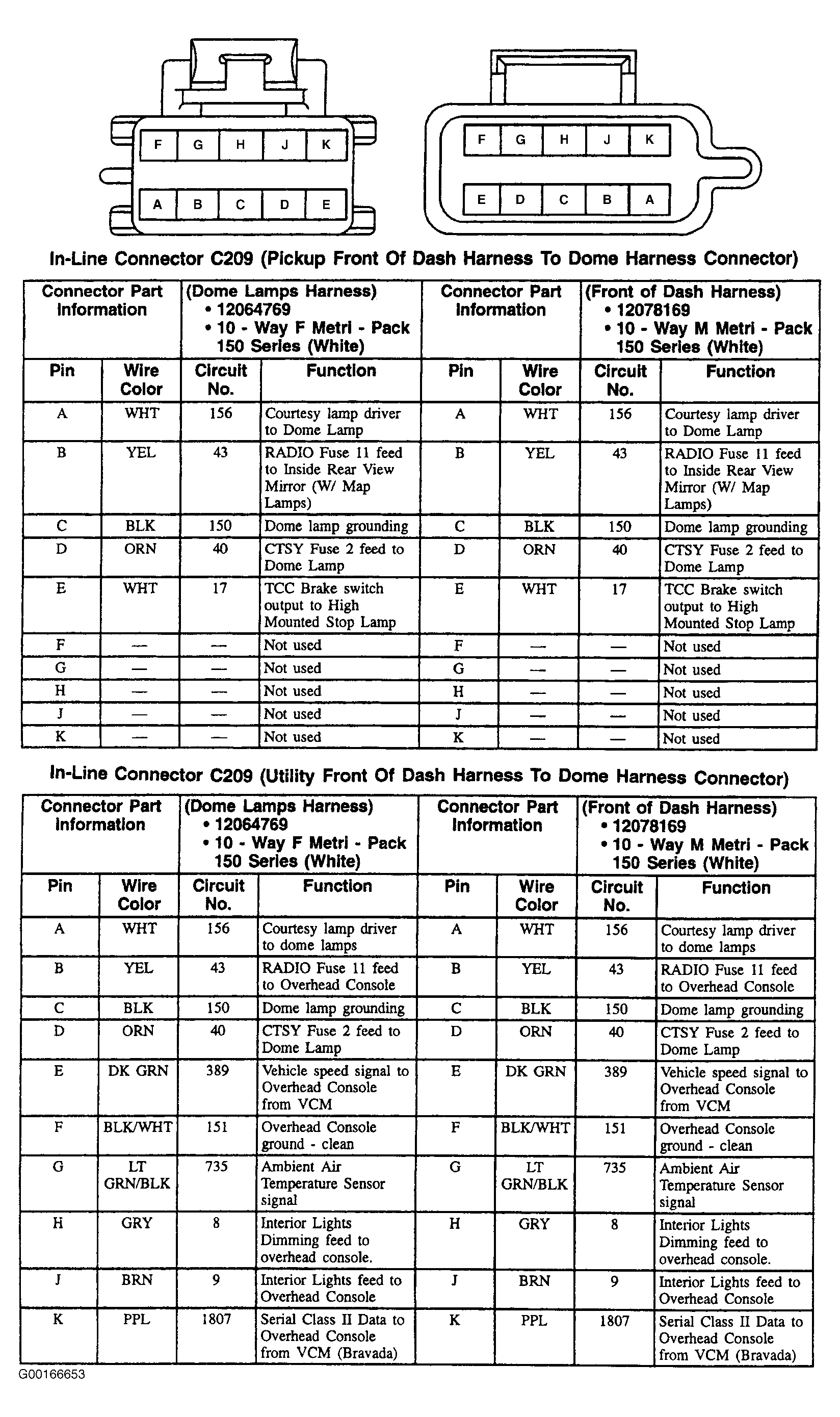

Fig 1: C209 - 10-Pin Connector, White

G00166653

Courtesy of GENERAL MOTORS CORP.
