Liftgate Window Release Actuator

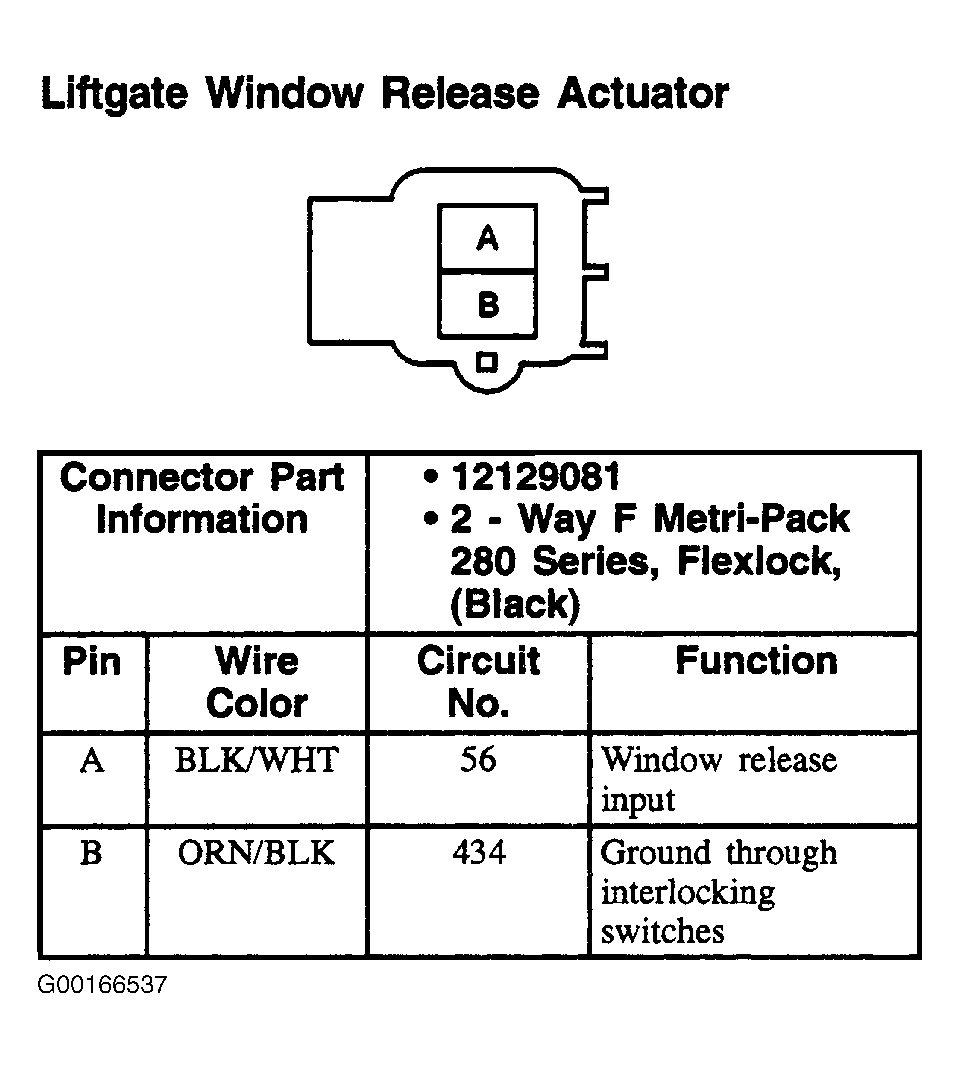

Fig 1: Liftgate Window Release Actuator - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
