Mass Air Flow Sensor (4.3L)

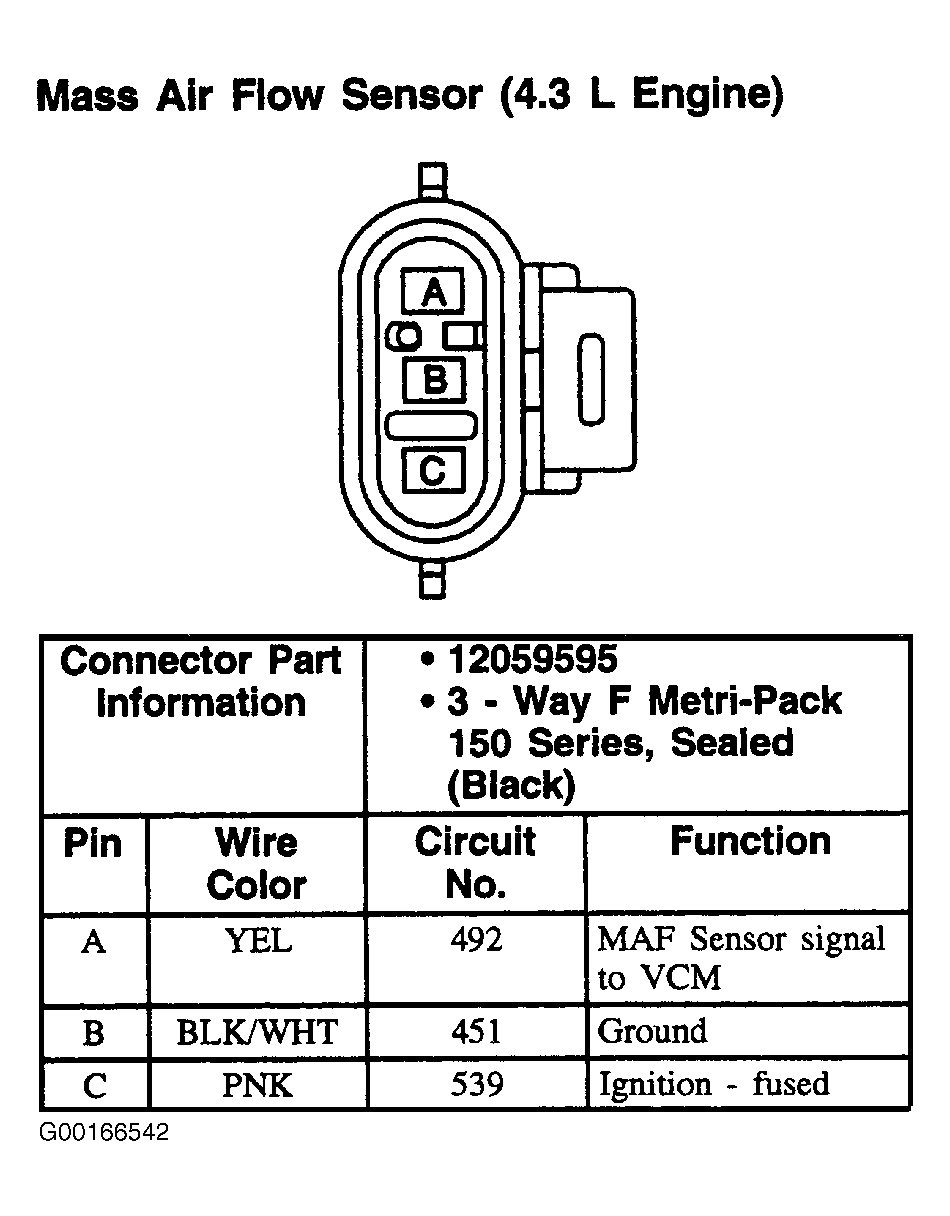

Fig 1: Mass Air Flow Sensor (4.3L) - 3-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
