Sunshade Mirror Lamp

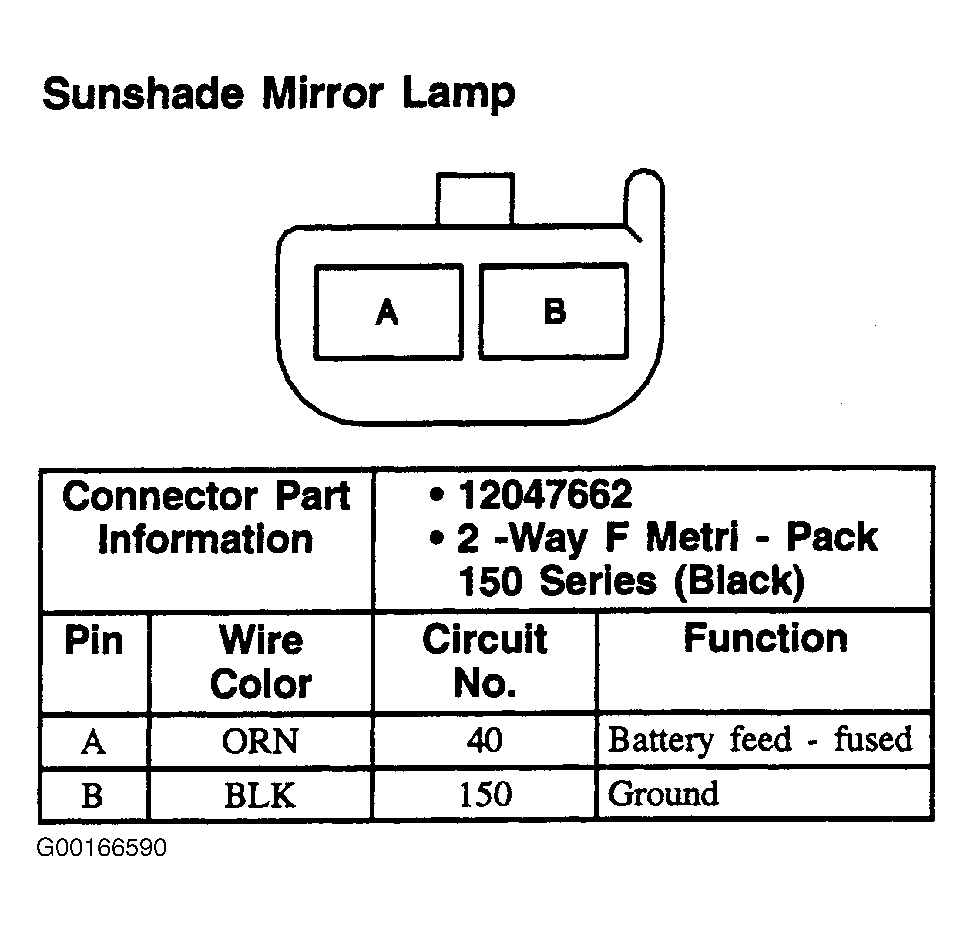

Fig 1: Sunshade Mirror Lamp - 2-Pin Connector, Black
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
