Torque Converter Clutch Pulse Width Modulation Solenoid Valve

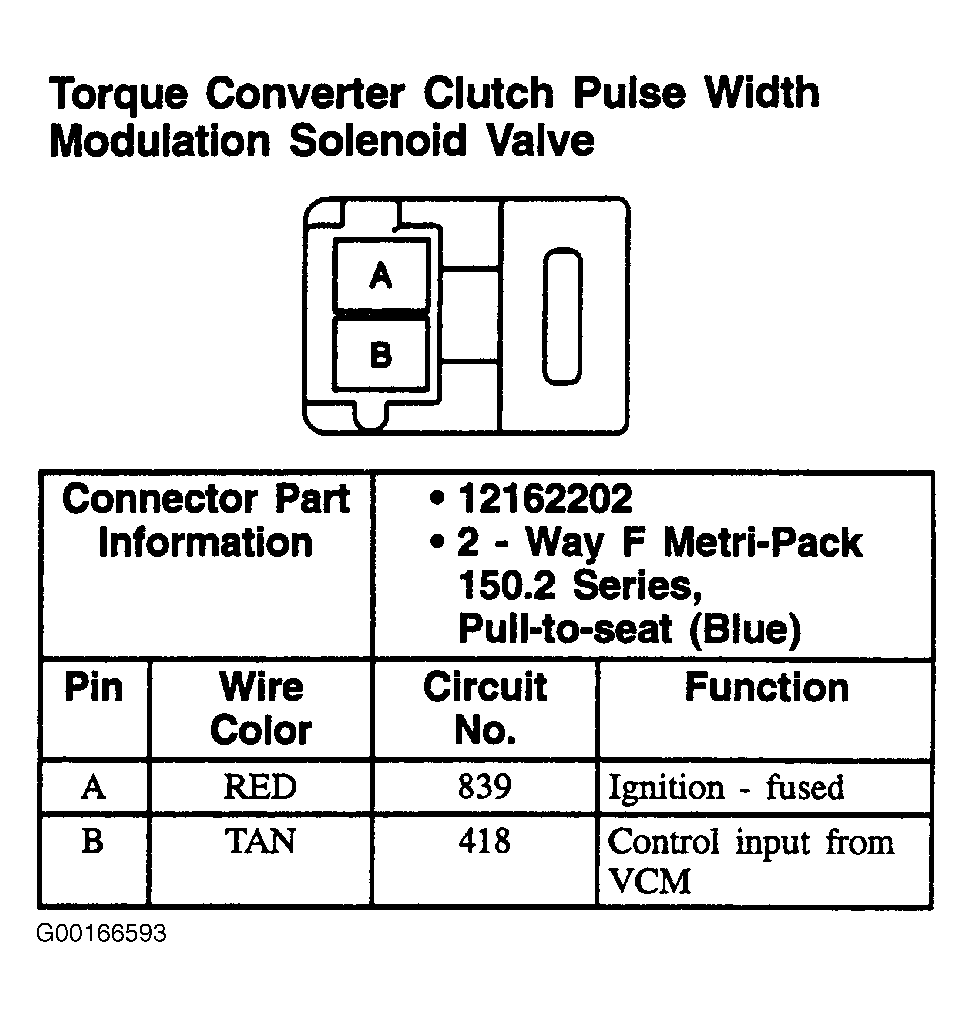

Fig 1: Torque Converter Clutch Pulse Width Modulation Solenoid Valve - 2-Pin Connector, Blue
G00166593Courtesy of GENERAL MOTORS CORP.
