Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

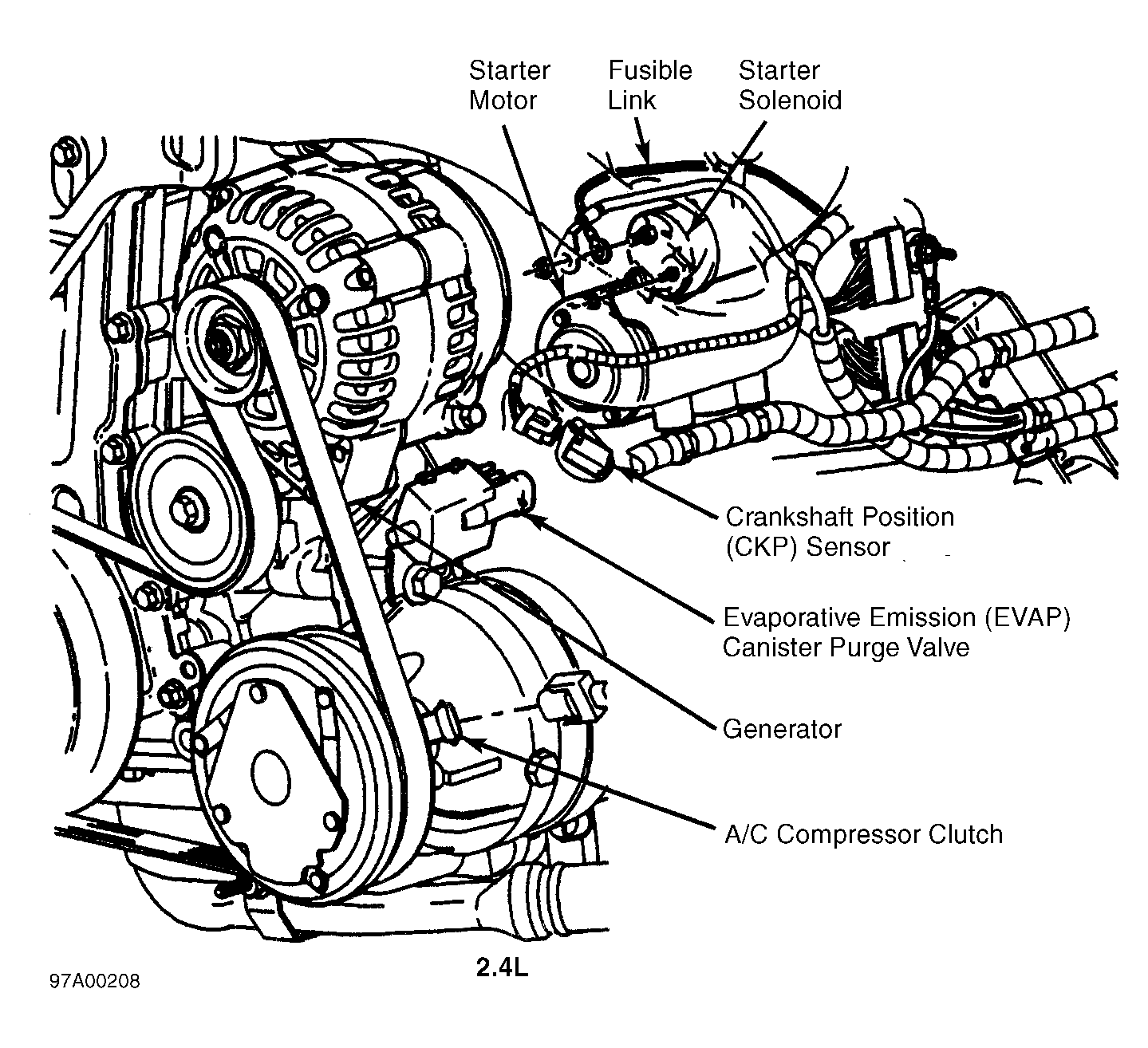

Fusible Link (2.4L) On lower front of engine. See Figure .

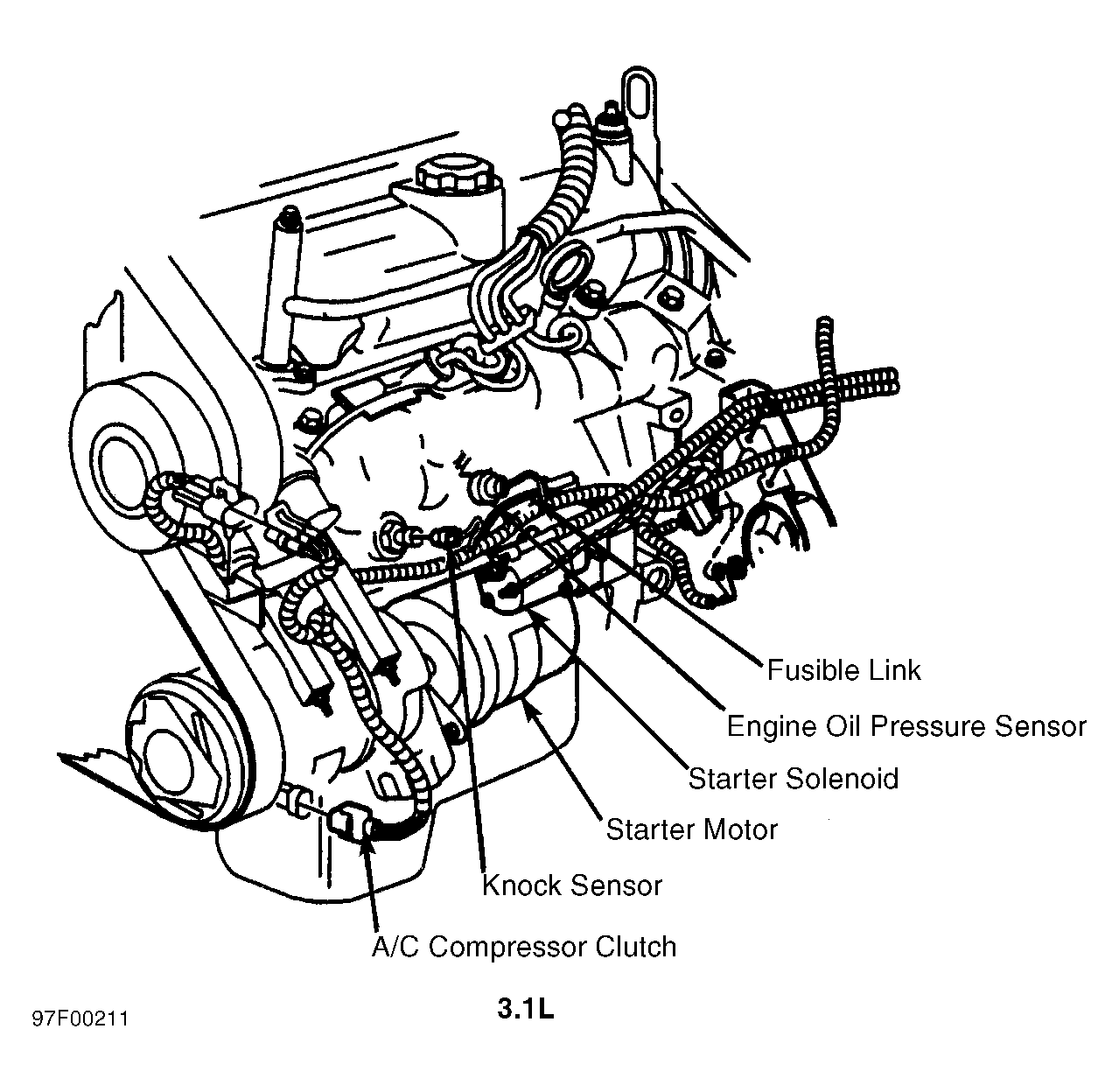

Fusible Link (3.1L) On front of engine. See Figure .

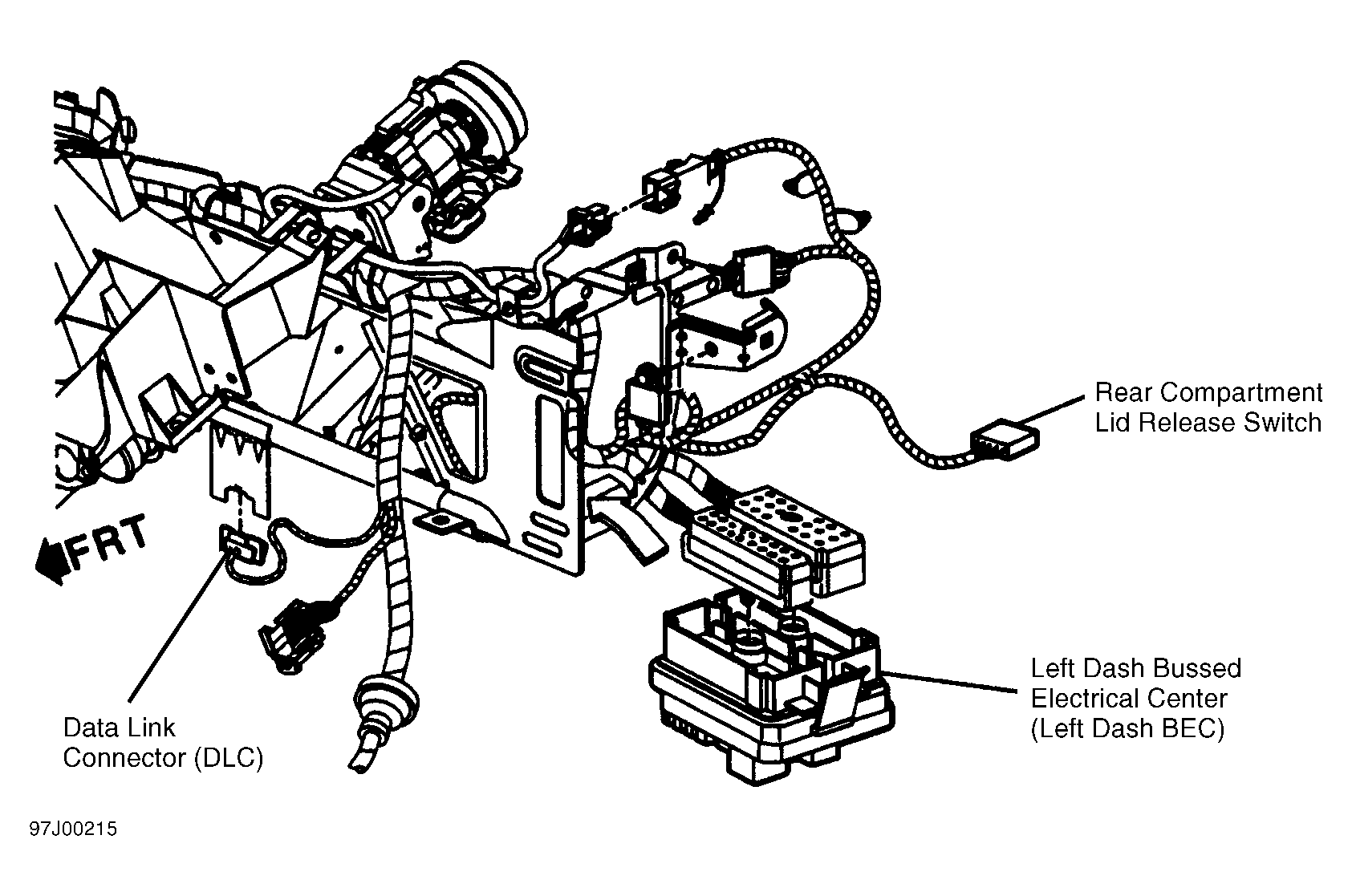

Left Dash Bussed Electrical Center (Left Dash BEC) On left side of dash. See Figure .
Right Dash Bussed Electrical Center (Right Dash BEC) On right side of dash. See Figure .
Underhood Bussed Electrical Center (U/H BEC) On left side of engine compartment.
