Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

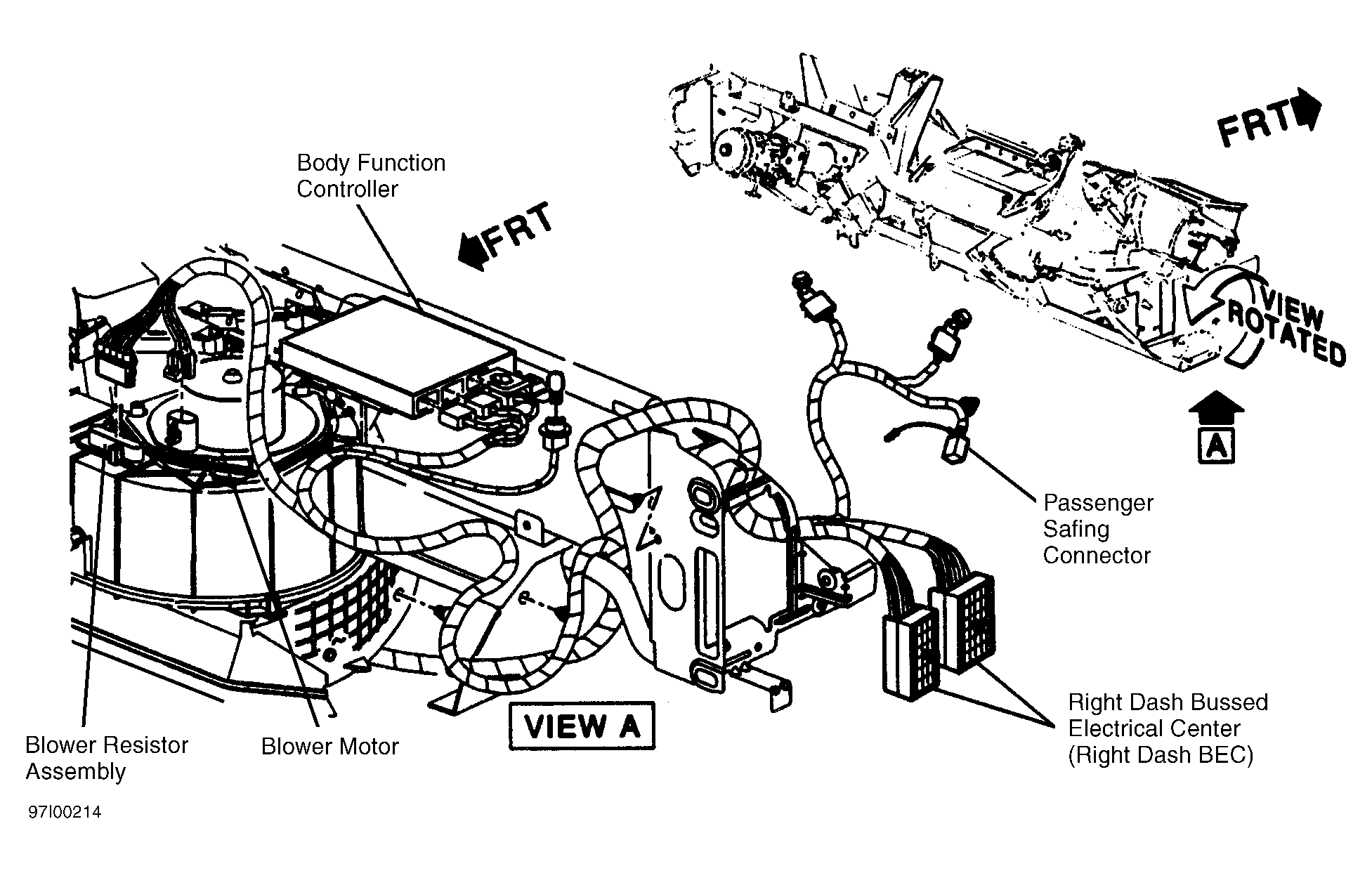

| Body Function Controller | Below right side of dash. See Figure . |
| Cruise Control Module | On right side of engine compartment. |
| Driver Inflator Module | On top of steering column. |
| Electronic Brake Control Module (EBCM) | Inside left front fender. |
| Fuel Tank Module | Under rear of vehicle. |

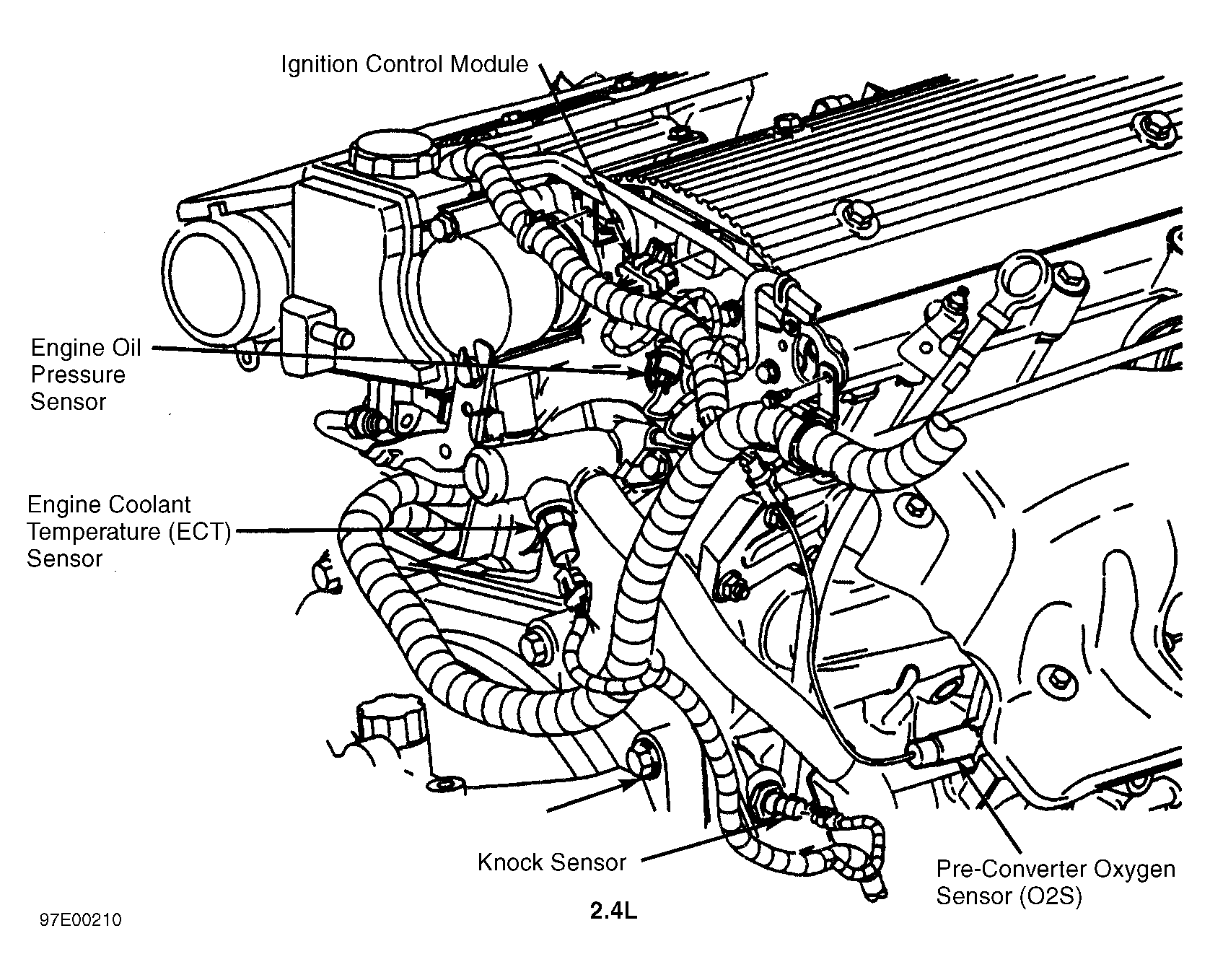

| Ignition Control Module (2.4L) | On top left of engine. See Figure . |

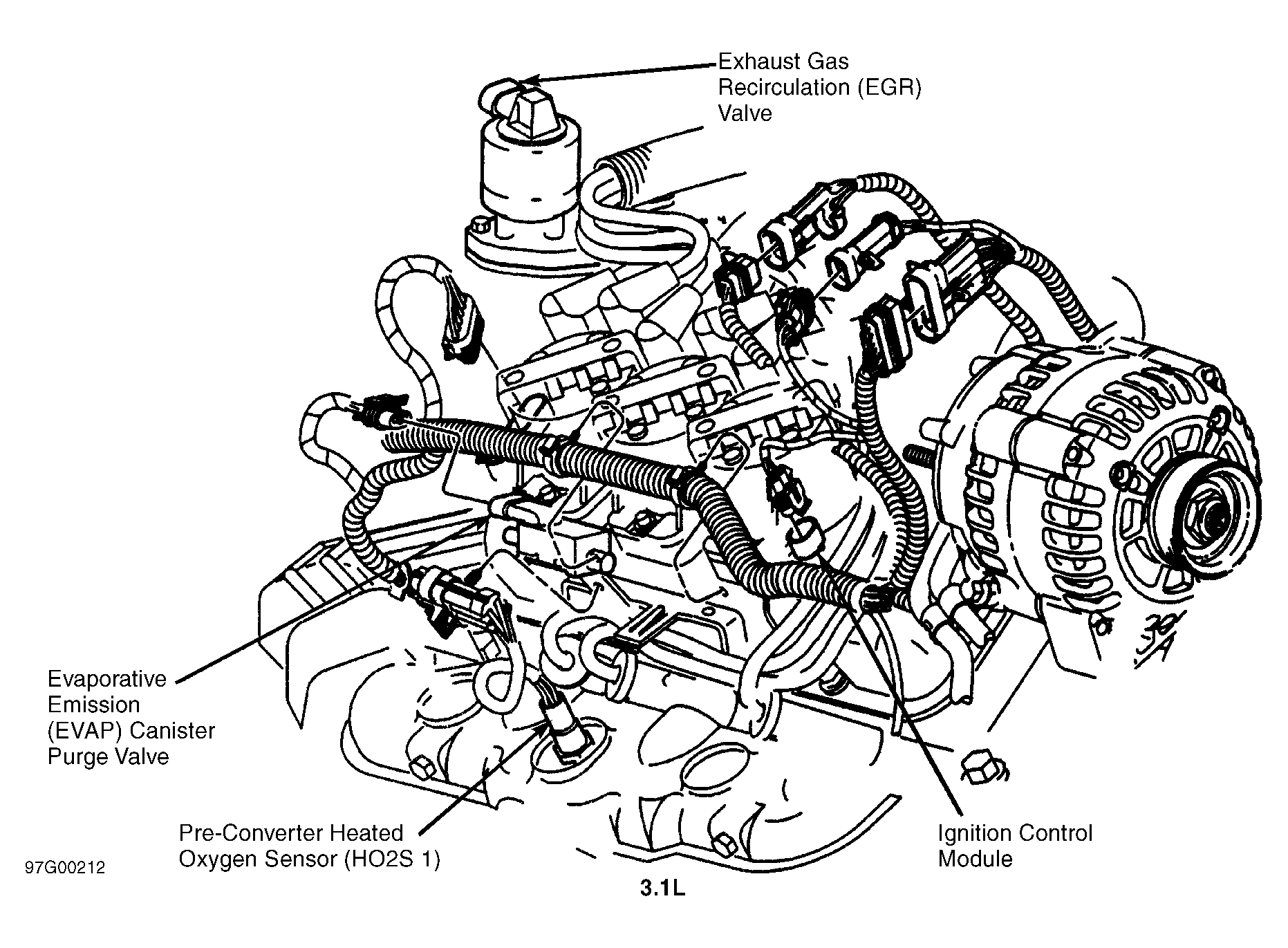

| Ignition Control Module (3.1L) | On top rear of engine. See Figure . |
| Lamp Dimmer Module | On left side of dash. |
| Passenger Inflator Module | On right upper dash. |
| Powertrain Control Module (PCM) | Below left side of dash, near steering column. |
| Remote Control Door Lock Receiver | On rear package shelf. |
| Sensing Diagnostic Module (SDM) | Under right front seat. |
