Cutlass & MALIBU

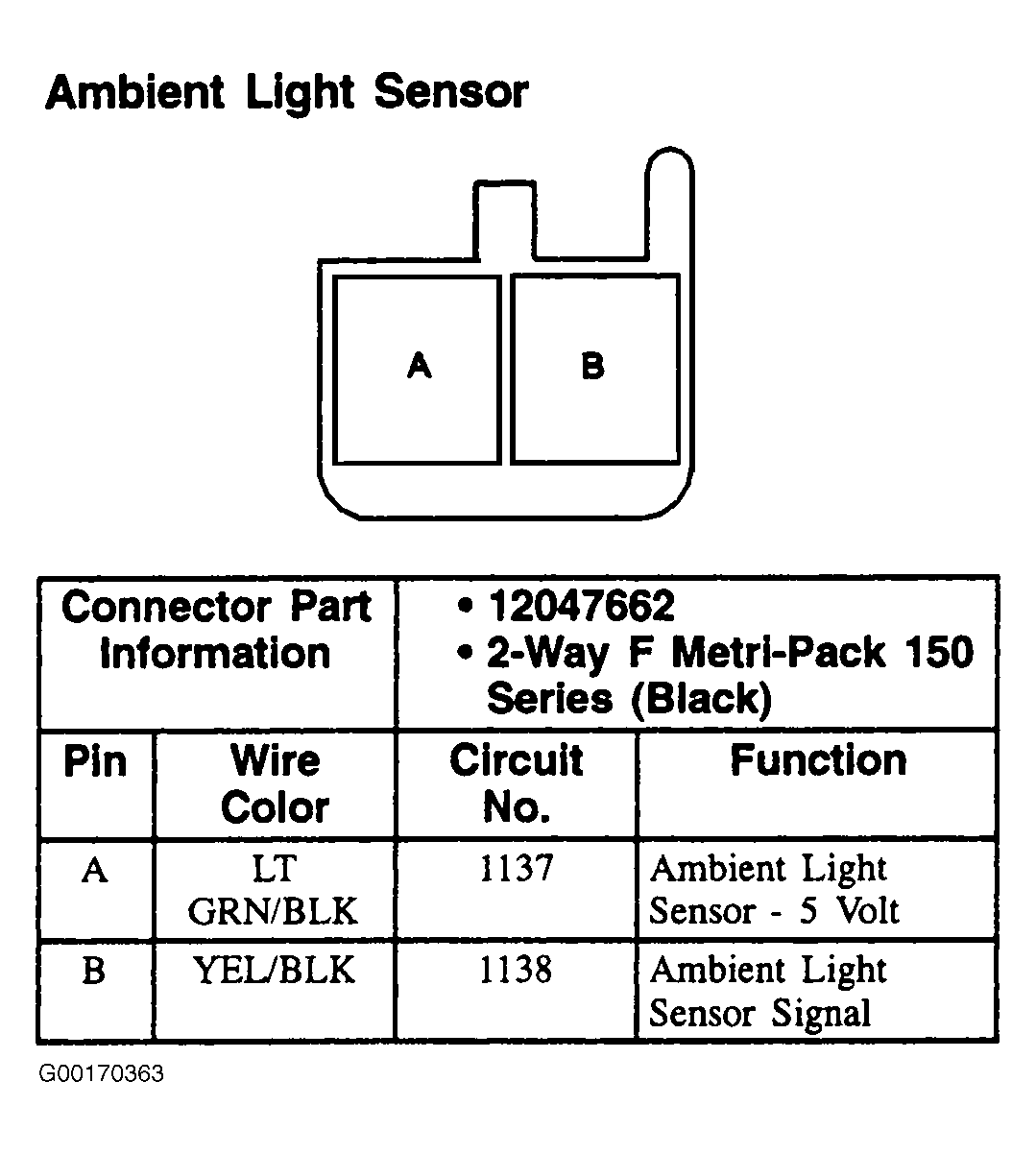

Fig 1: Ambient Light Sensor (Cutlass & Malibu) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
