Connector Terminal Identification
>>
Engine Coolant Level Switch & Engine Oil Level Switch (3.1L)
>>
Cutlass & MALIBU
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cutlass & MALIBU

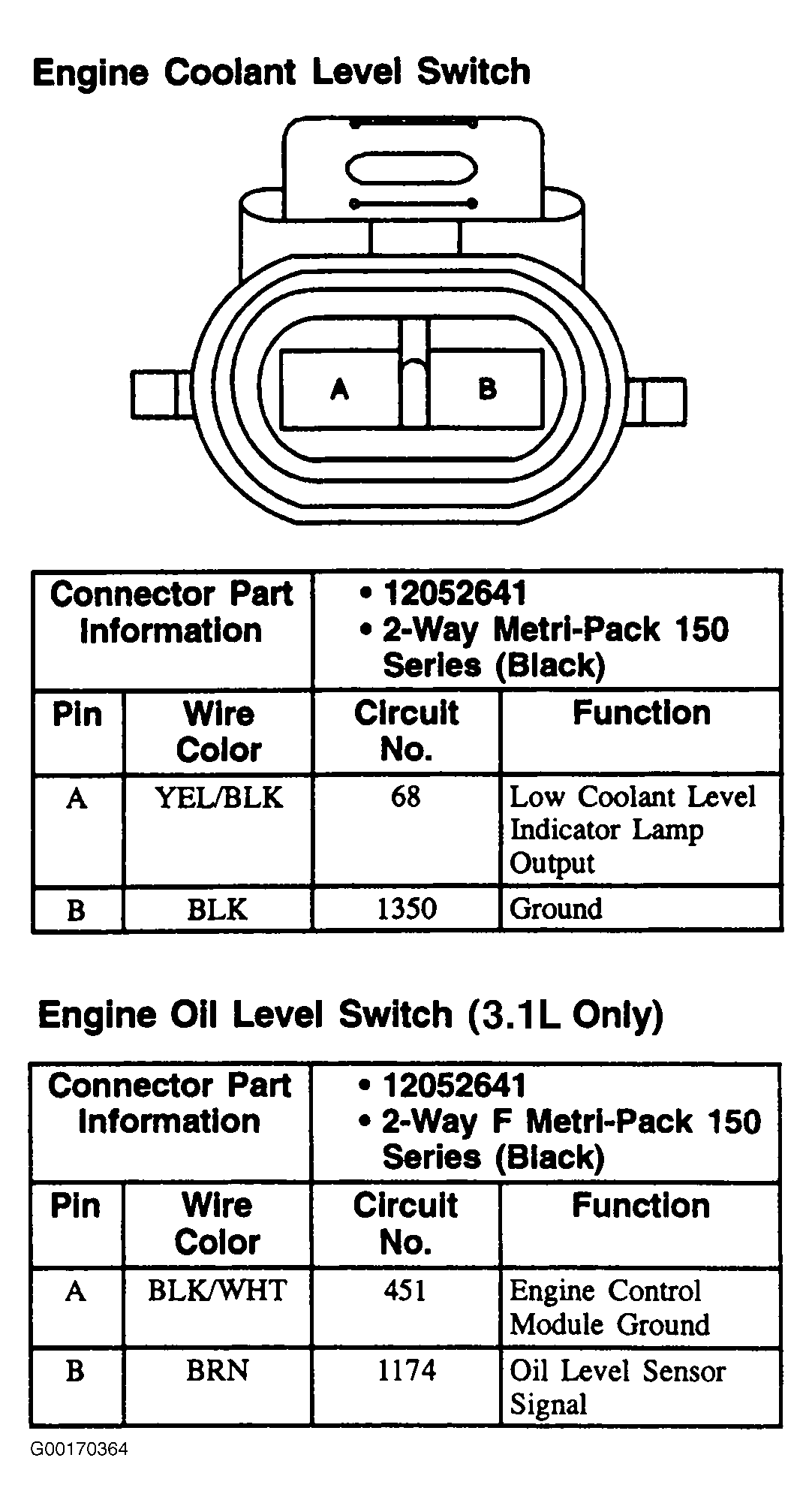

Fig 1: Engine Coolant Level Switch & Engine Oil Level Switch (3.1L - Cutlass & Malibu) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
