Cutlass & MALIBU

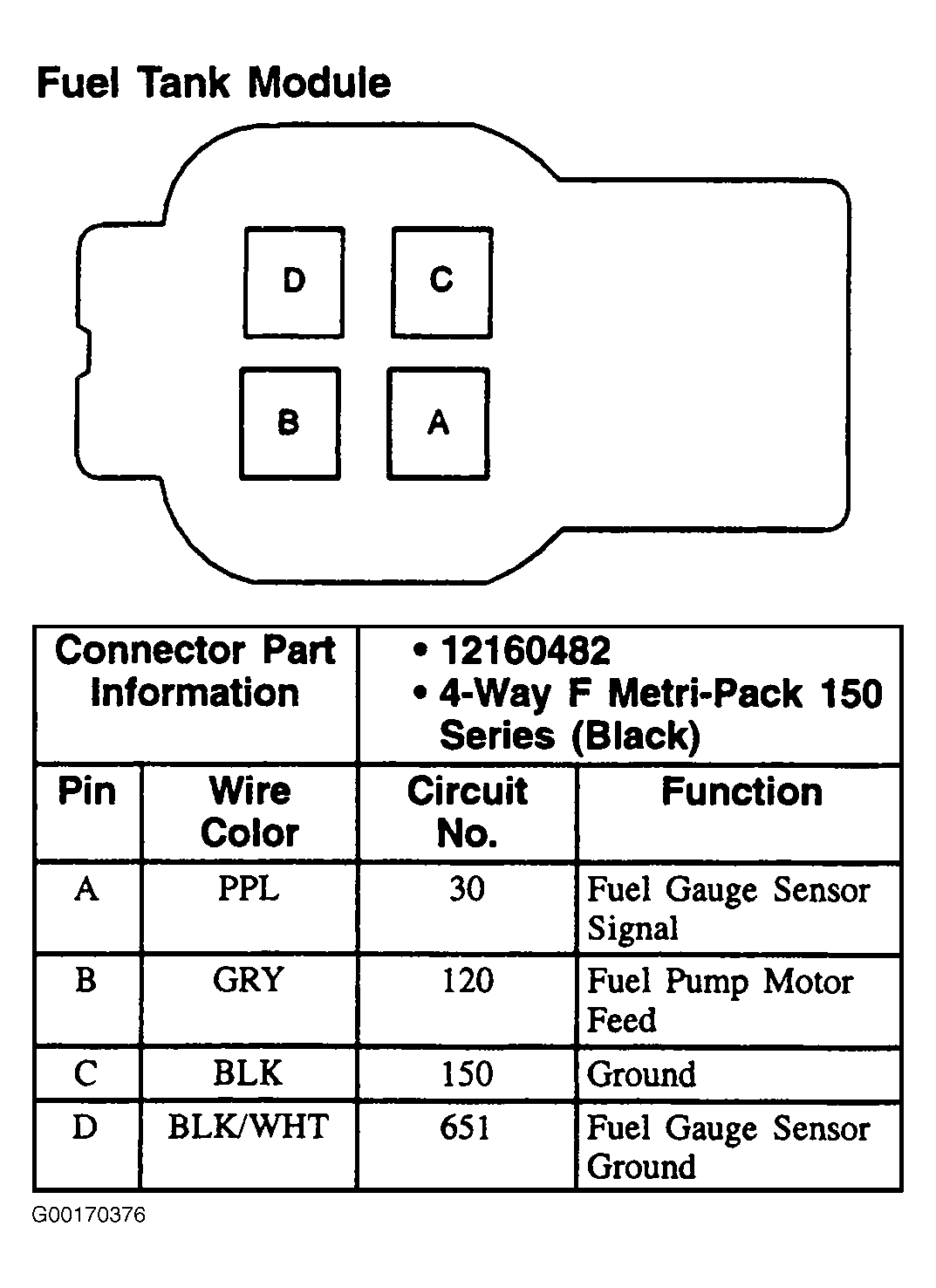

Fig 1: Fuel Tank Module (Cutlass & Malibu) - 4-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
