Ignition Control Module (2.4L)

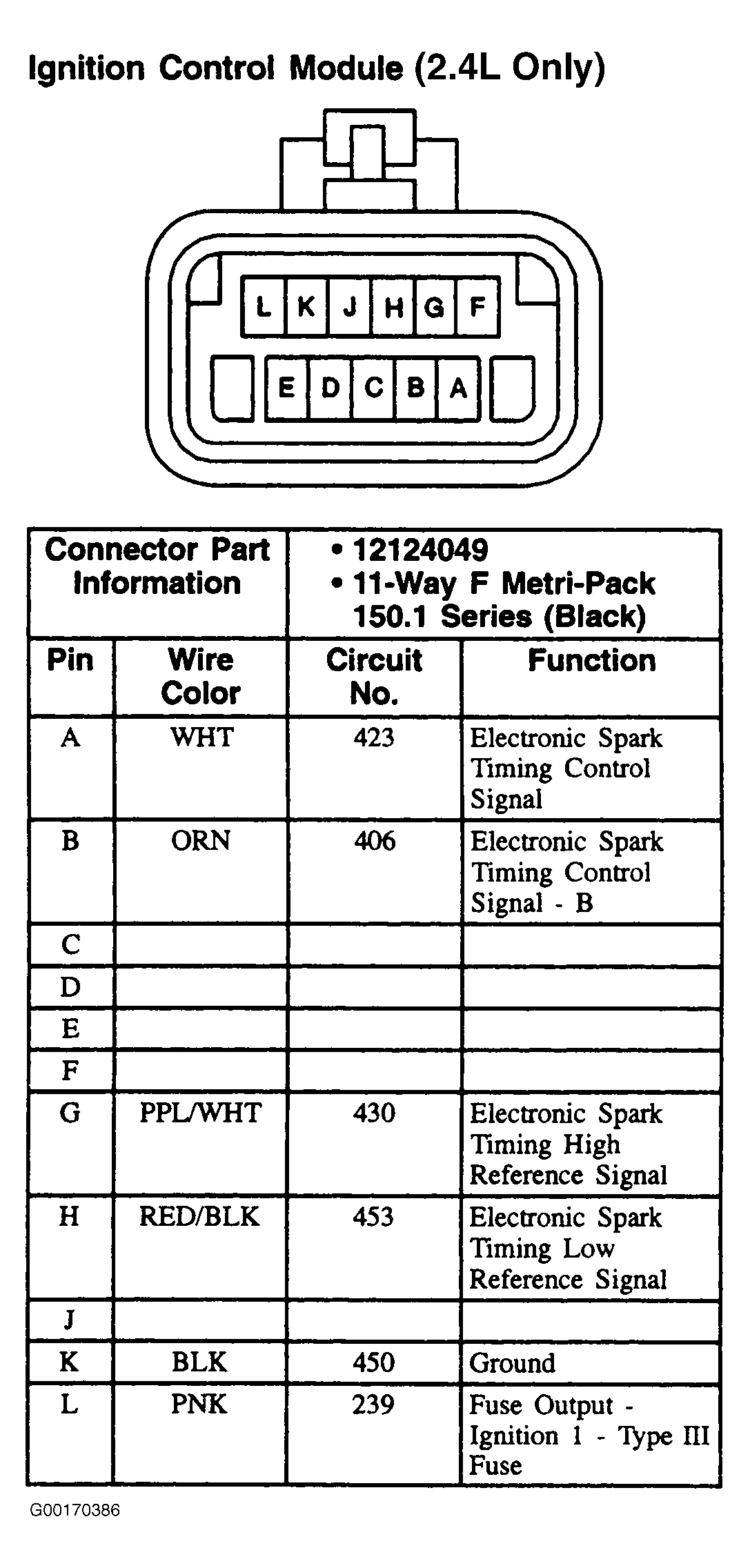

Fig 1: Ignition Control Module (2.4L - Cutlass & Malibu) - 11-Pin Connector (Black)
G00170386Courtesy of GENERAL MOTORS CORP.
