Ignition Control Module Connector C1 (3.1L)

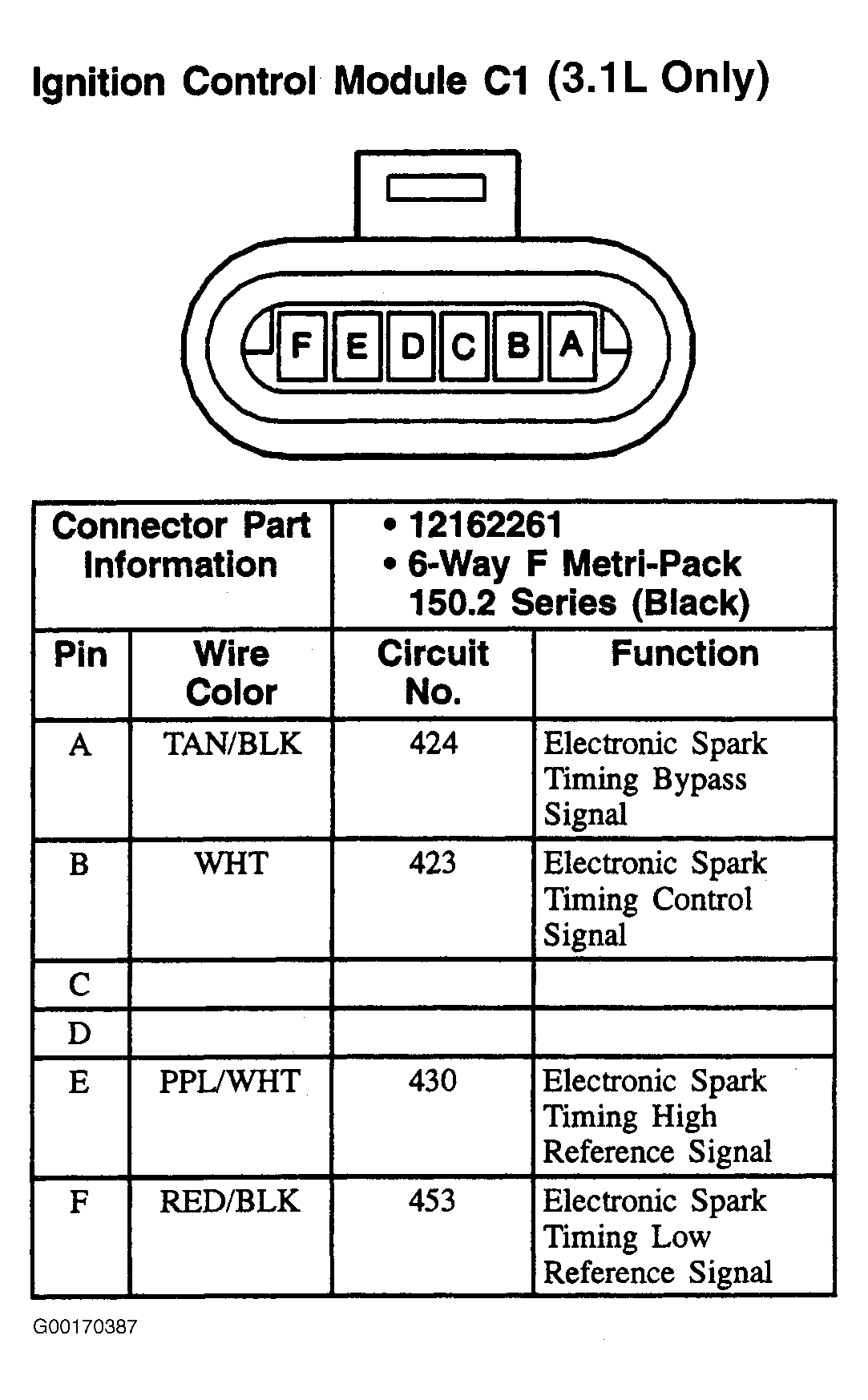

Fig 1: Ignition Control Module Connector C1 (3.1L - Cutlass & Malibu) - 6-Pin Connector (Black)
G00170387Courtesy of GENERAL MOTORS CORP.
