Ignition Control Module Connector C2 (3.1L)

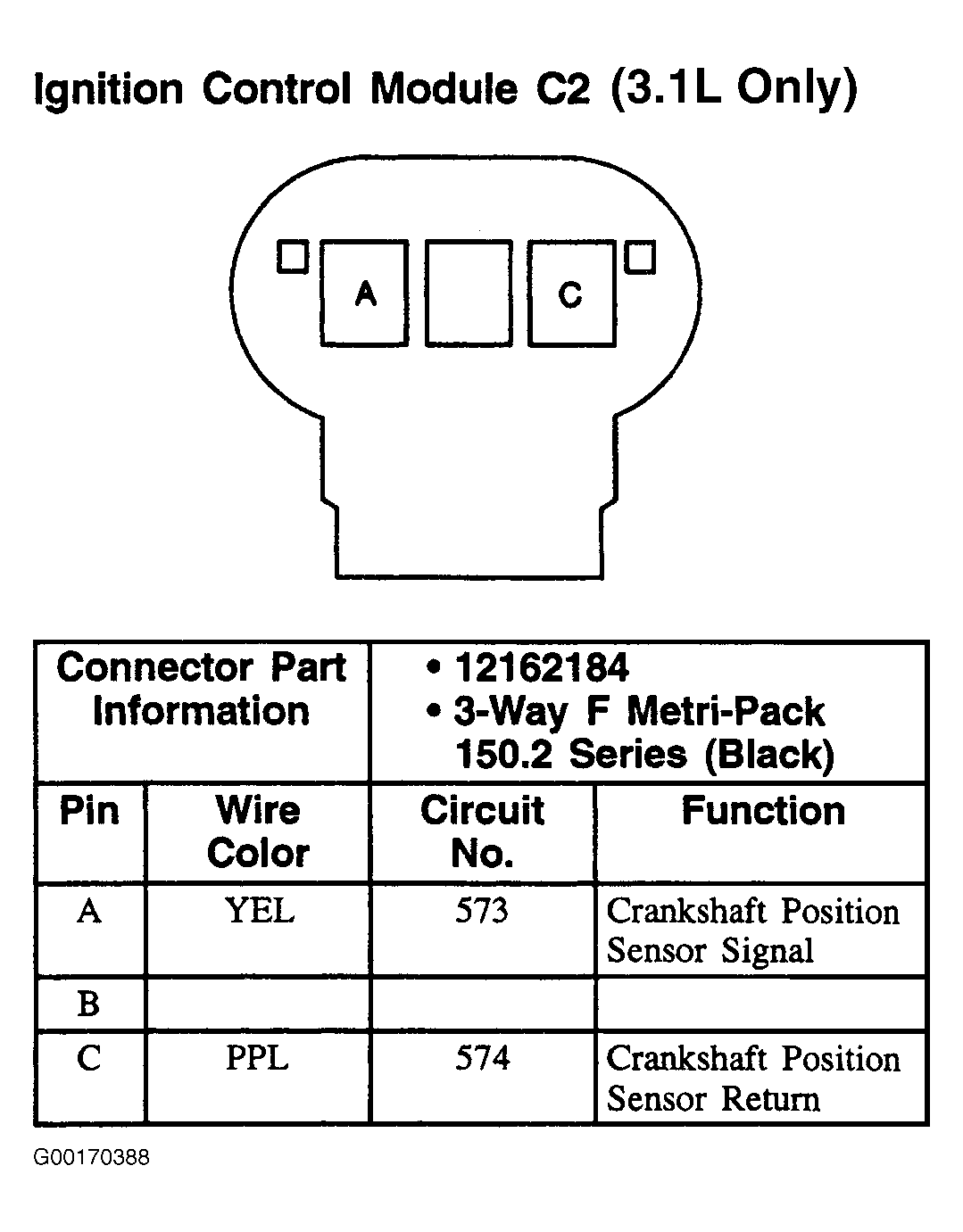

Fig 1: Ignition Control Module Connector C2 (3.1L - Cutlass & Malibu) - 3-Pin Connector (Black)
G00170388Courtesy of GENERAL MOTORS CORP.
