Ignition Control Module Connector C3 (3.1L)

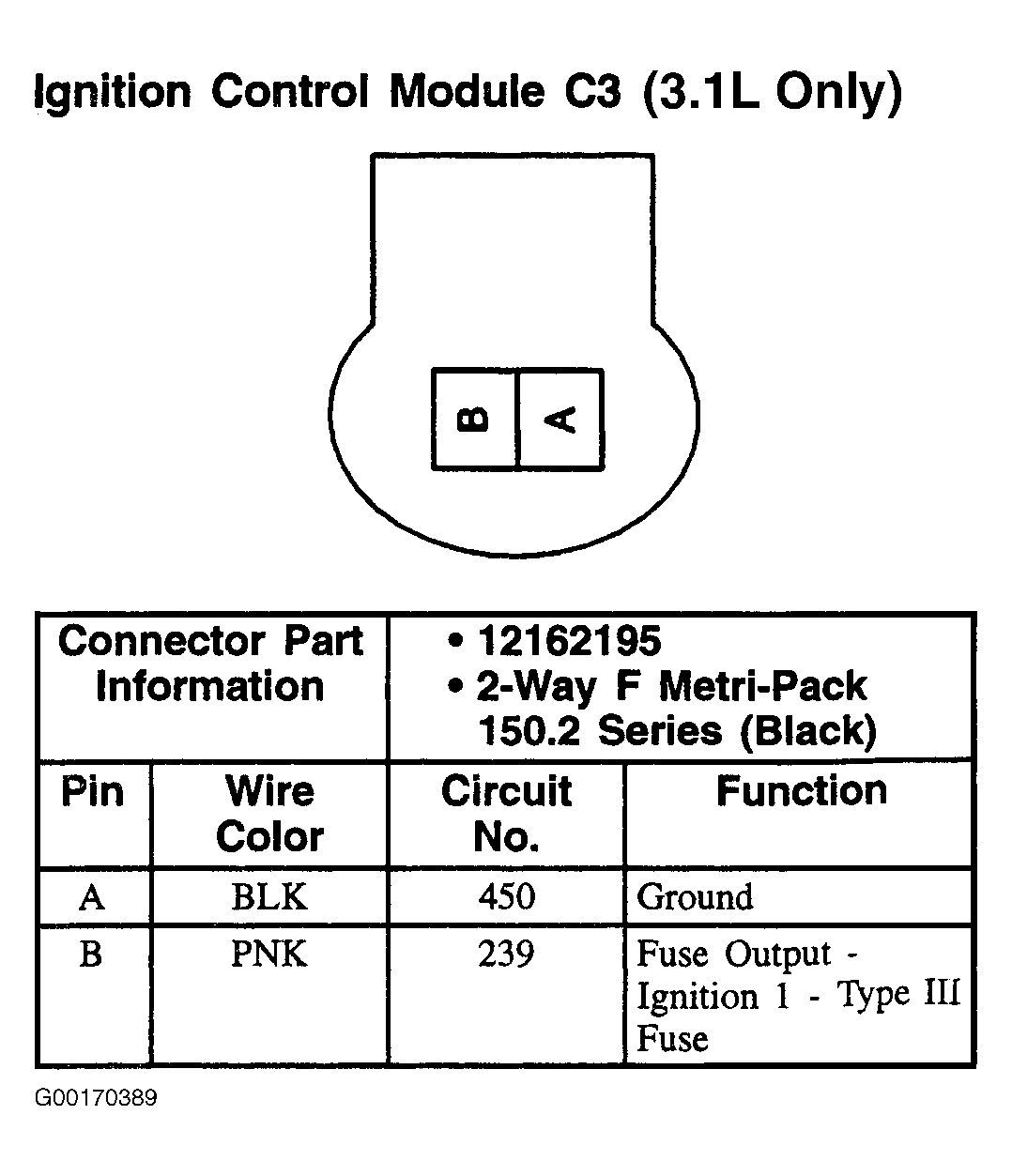

Fig 1: Ignition Control Module Connector C3 (3.1L - Cutlass & Malibu) - 2-Pin Connector (Black)
G00170389Courtesy of GENERAL MOTORS CORP.
