Ignition Switch Connector C2

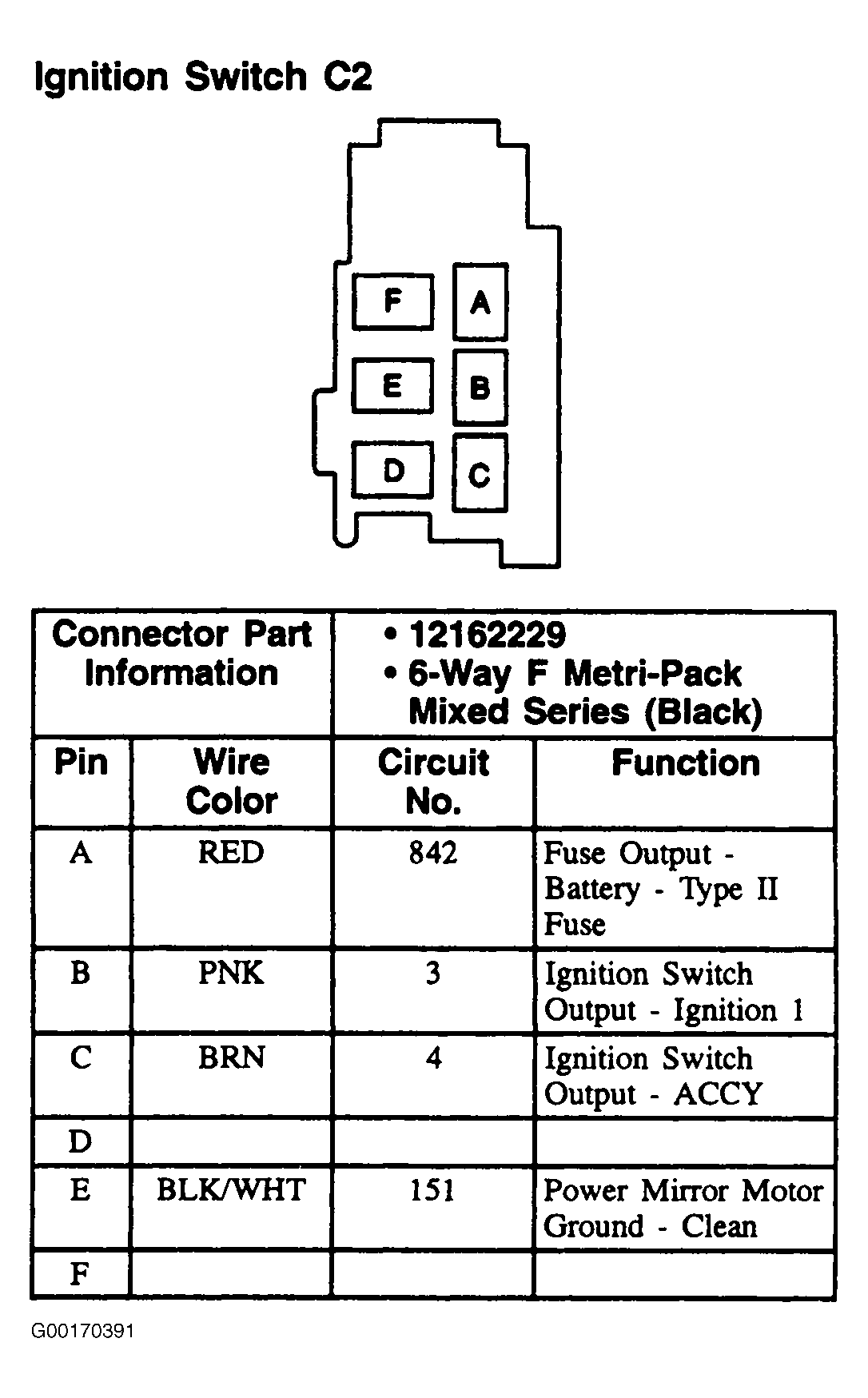

Fig 1: Ignition Switch Connector C2 (Cutlass & Malibu) - 6-Pin Connector (Black)
G00170391Courtesy of GENERAL MOTORS CORP.
