ACHIEVA, Grand Am & Skylark

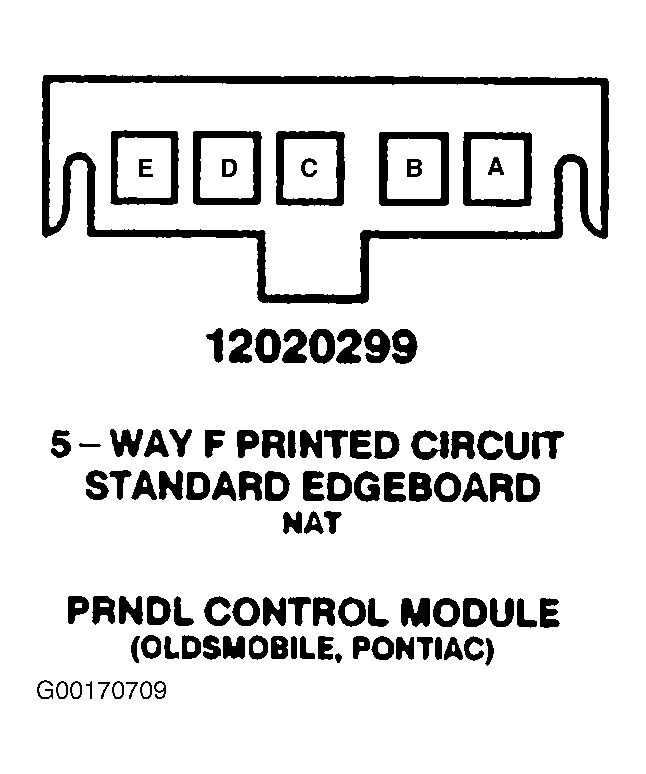

Fig 1: PRNDL Control Module (Achieva & Grand Am) - 5-Pin Connector (Natural)
G00170709Courtesy of GENERAL MOTORS CORP.

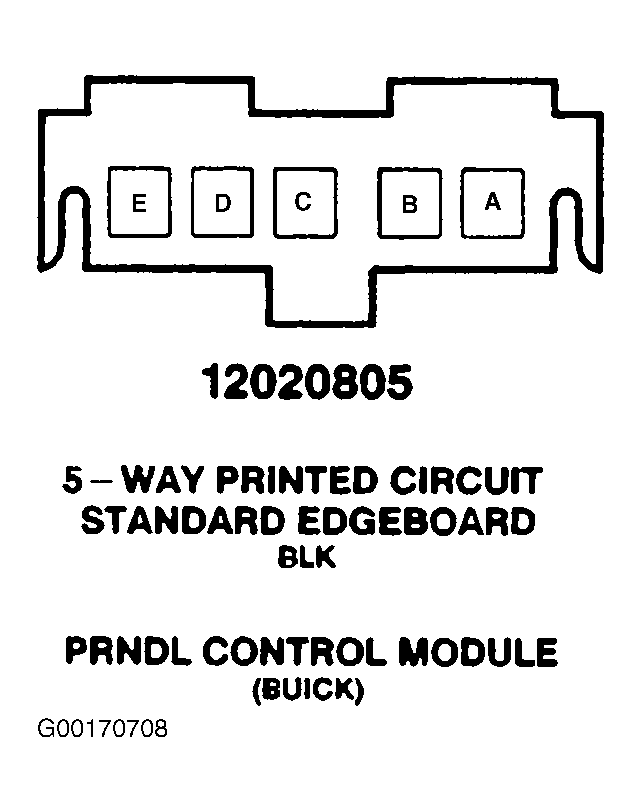

Fig 2: PRNDL Control Module (Skylark) - 5-Pin Connector (Black)
G00170708Courtesy of GENERAL MOTORS CORP.
