Connector Terminal Identification
>>
Panel Dimmer Switch
>>
Cutlass & MALIBU
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cutlass & MALIBU

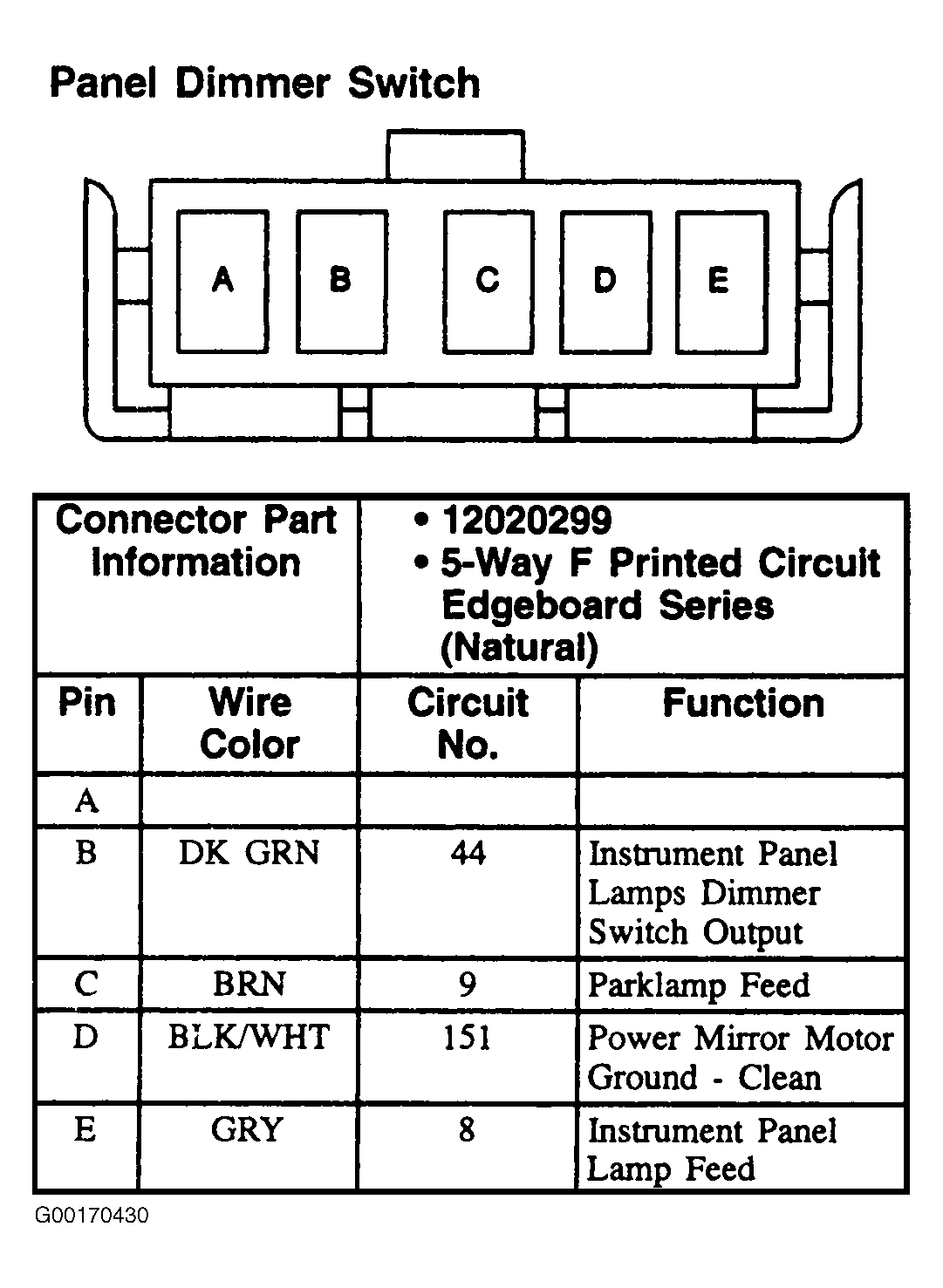

Fig 1: Panel Dimmer Switch (Cutlass & Malibu) - 5-Pin Connector (Natural)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
