Connector Terminal Identification
>>
Power Seat Switch
>>
Cutlass & MALIBU
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cutlass & MALIBU

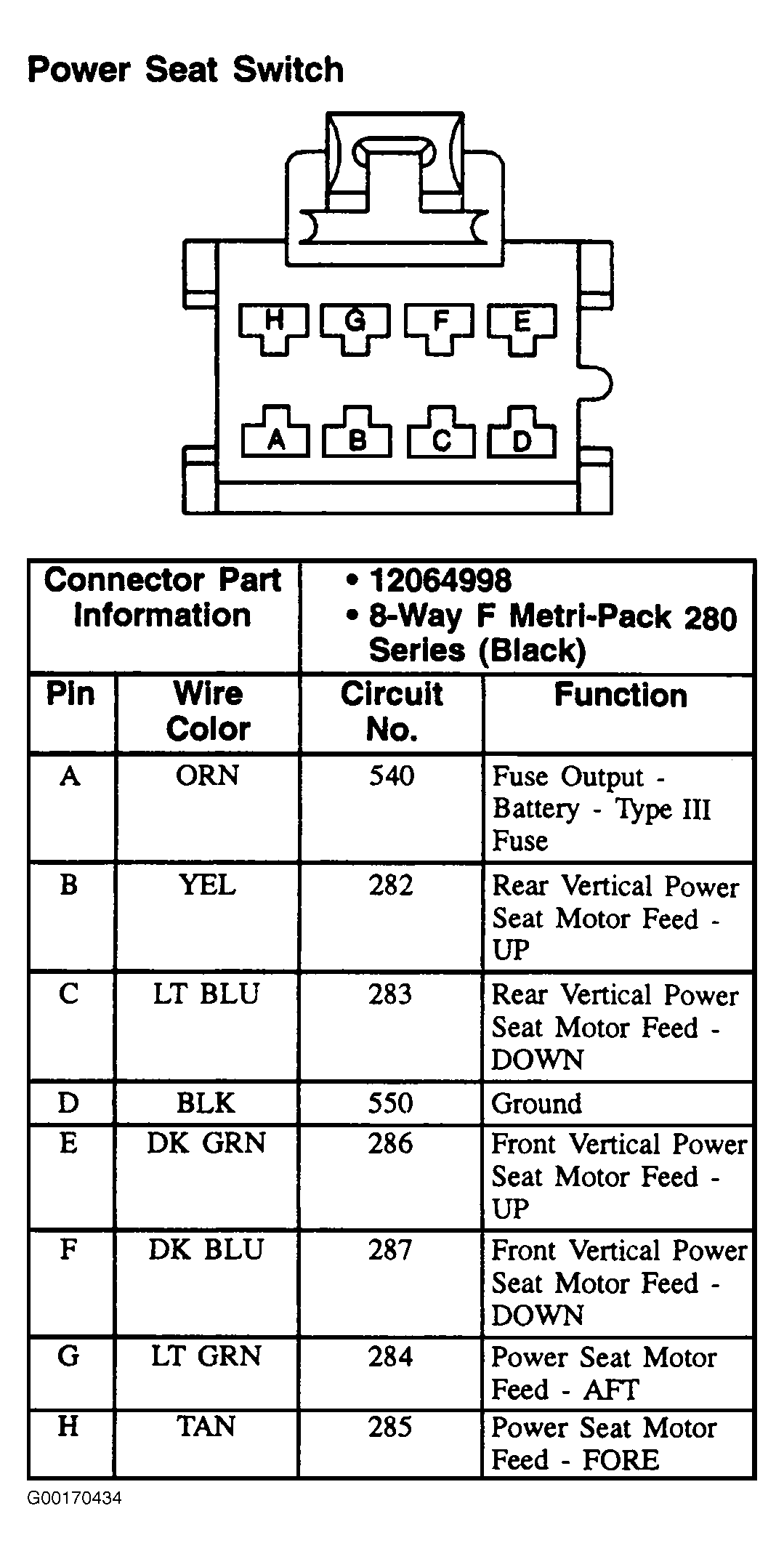

Fig 1: Power Seat Switch (Cutlass & Malibu) - 8-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
