Cutlass & MALIBU

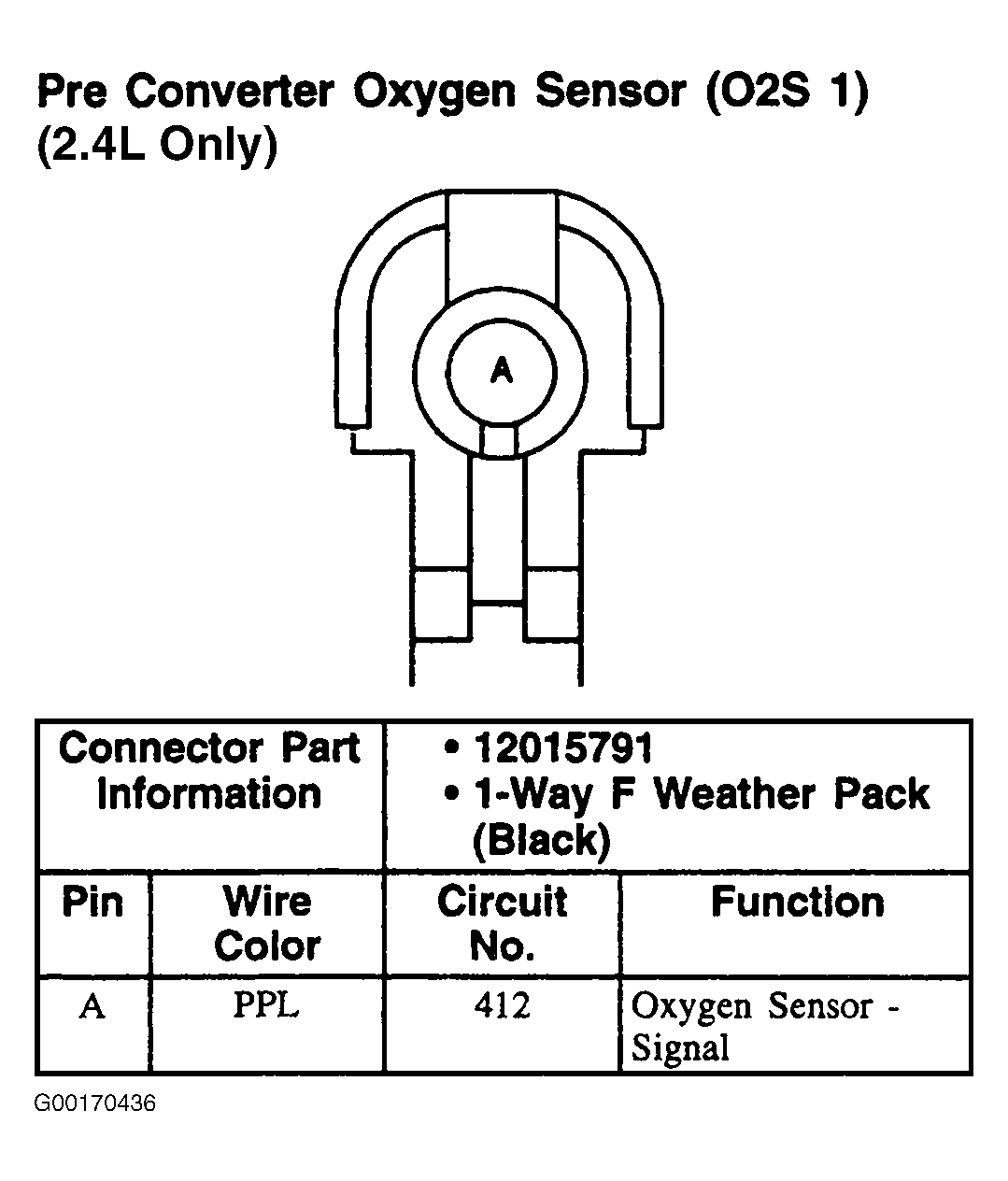

Fig 1: Pre Converter Oxygen Sensor (O2S 1) 2.4L (Cutlass & Malibu) - 1-Pin Connector (Black)
G00170436Courtesy of GENERAL MOTORS CORP.
