Cutlass & MALIBU

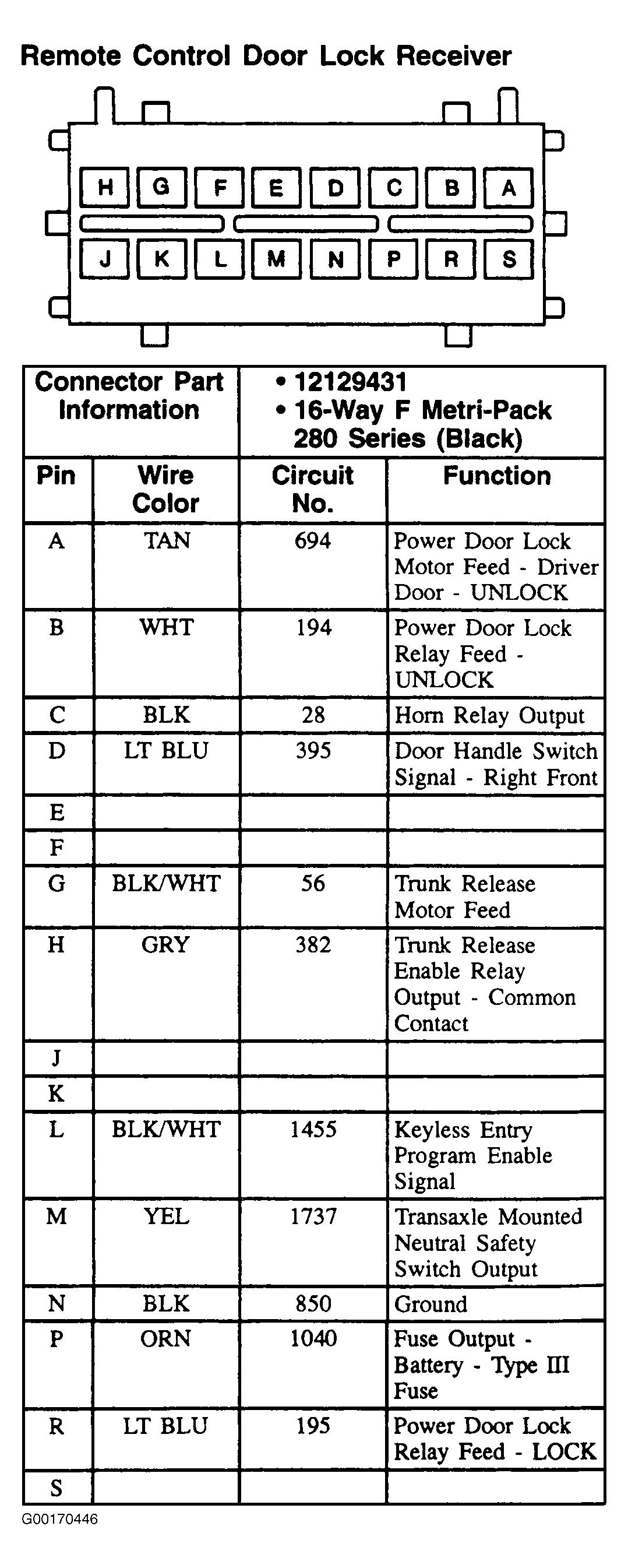

Fig 1: Remote Control Door Lock Receiver (Cutlass & Malibu) - 16-Pin Connector (Black)
G00170446Courtesy of GENERAL MOTORS CORP.
