Connector Terminal Identification
>>
Seat Belt Switch
>>
Cutlass & MALIBU
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Cutlass & MALIBU

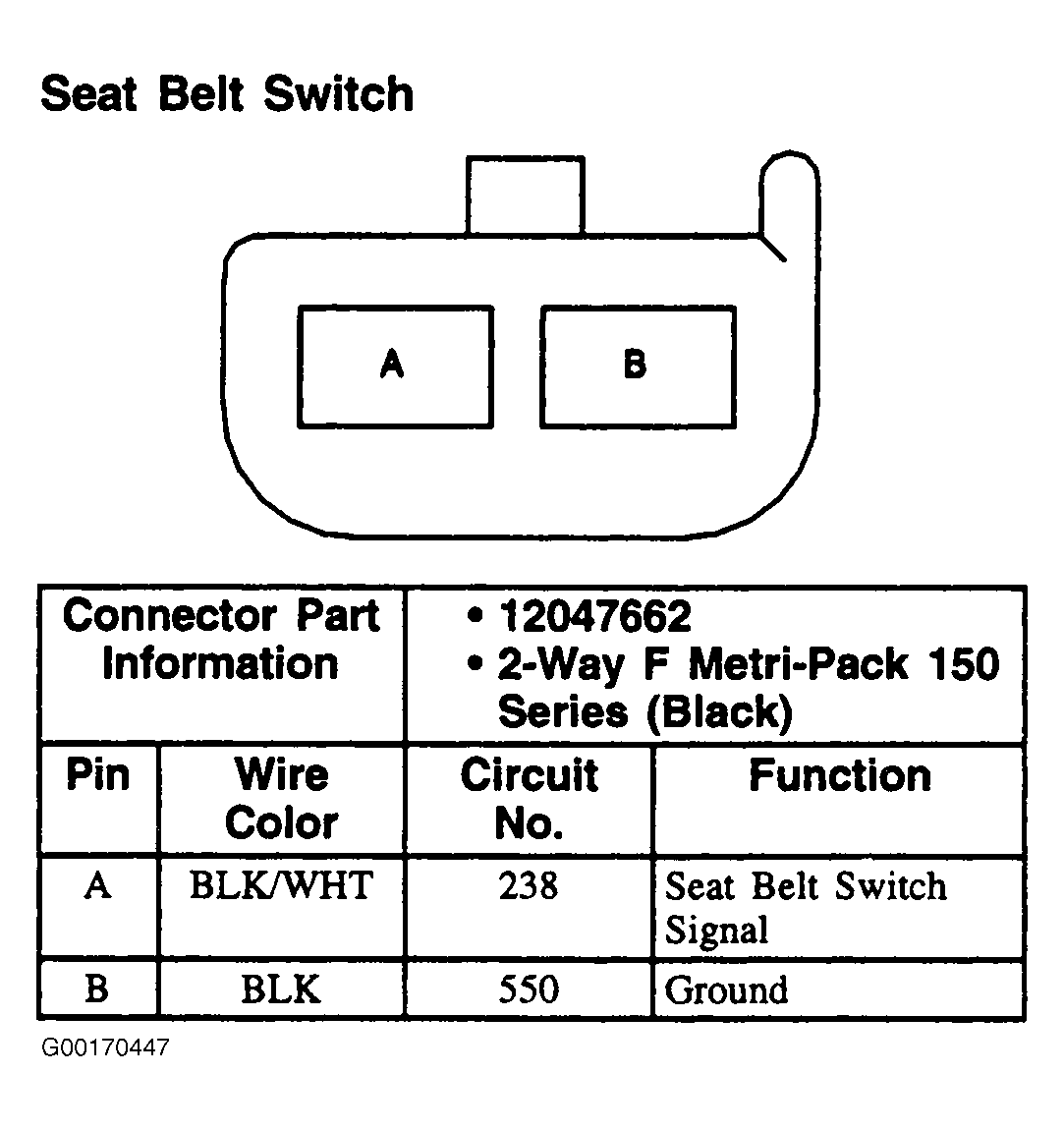

Fig 1: Seat Belt Switch (Cutlass & Malibu) - 2-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
