Connector Terminal Identification
>>
Sensing Diagnostic Module (SDM)
>>
Cutlass & MALIBU
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cutlass & MALIBU

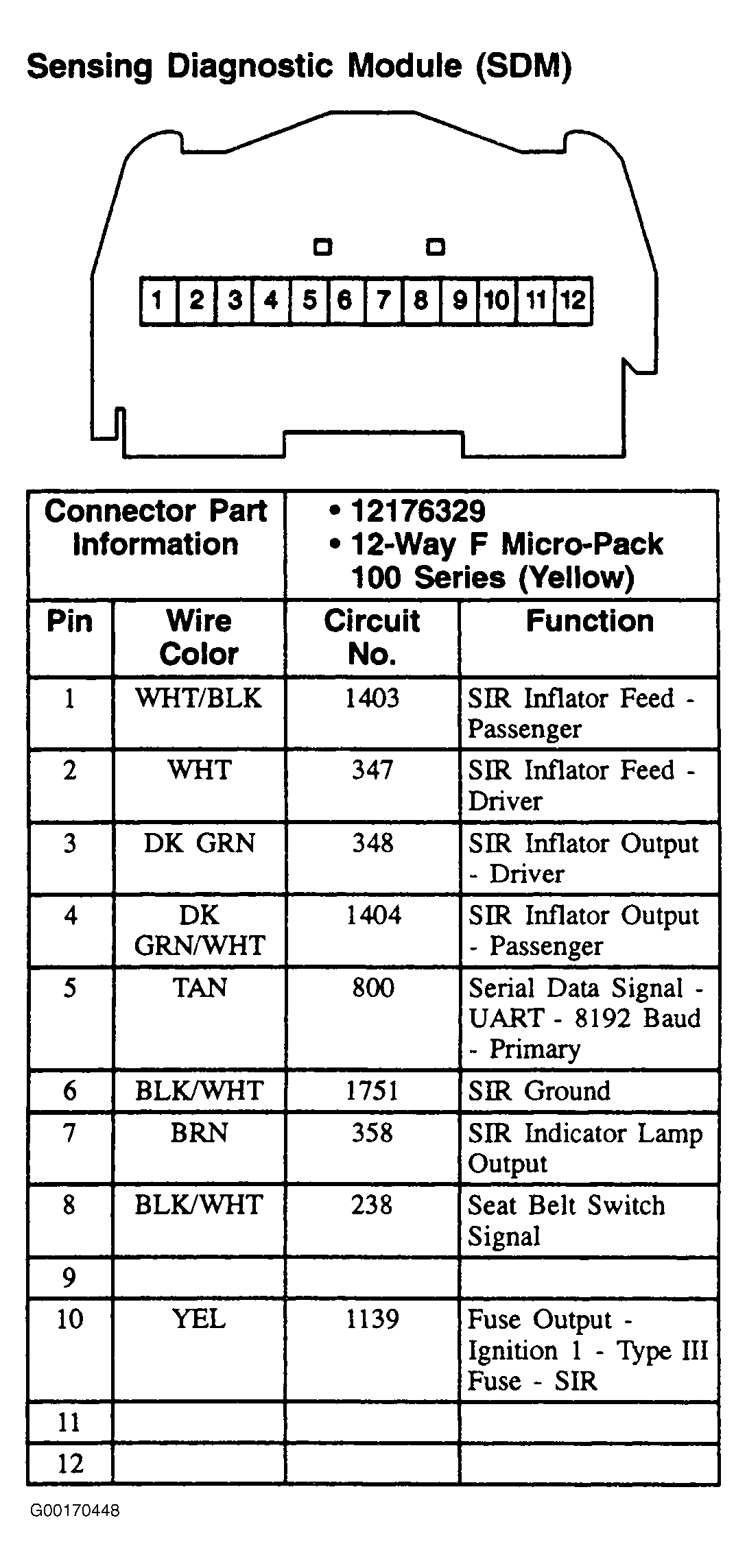

Fig 1: Sensing Diagnostic Module (SDM) Cutlass & Malibu - 12-Pin Connector (Yellow)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
