Transaxle Range Switch C2

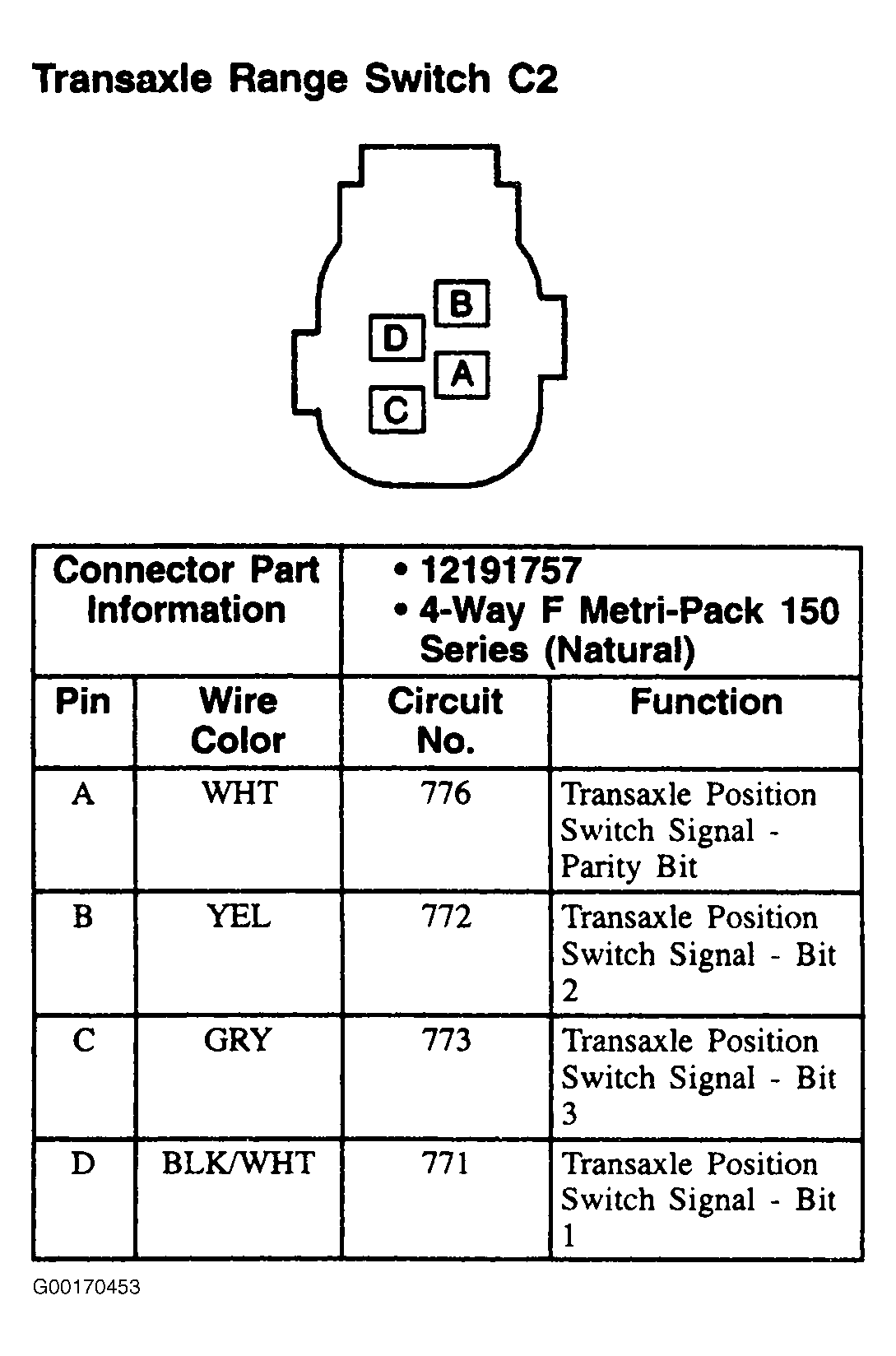

Fig 1: Transaxle Range Switch Connector C2 (Cutlass & Malibu) - 4-Pin Connector (Natural)
G00170453Courtesy of GENERAL MOTORS CORP.
