Cutlass & MALIBU

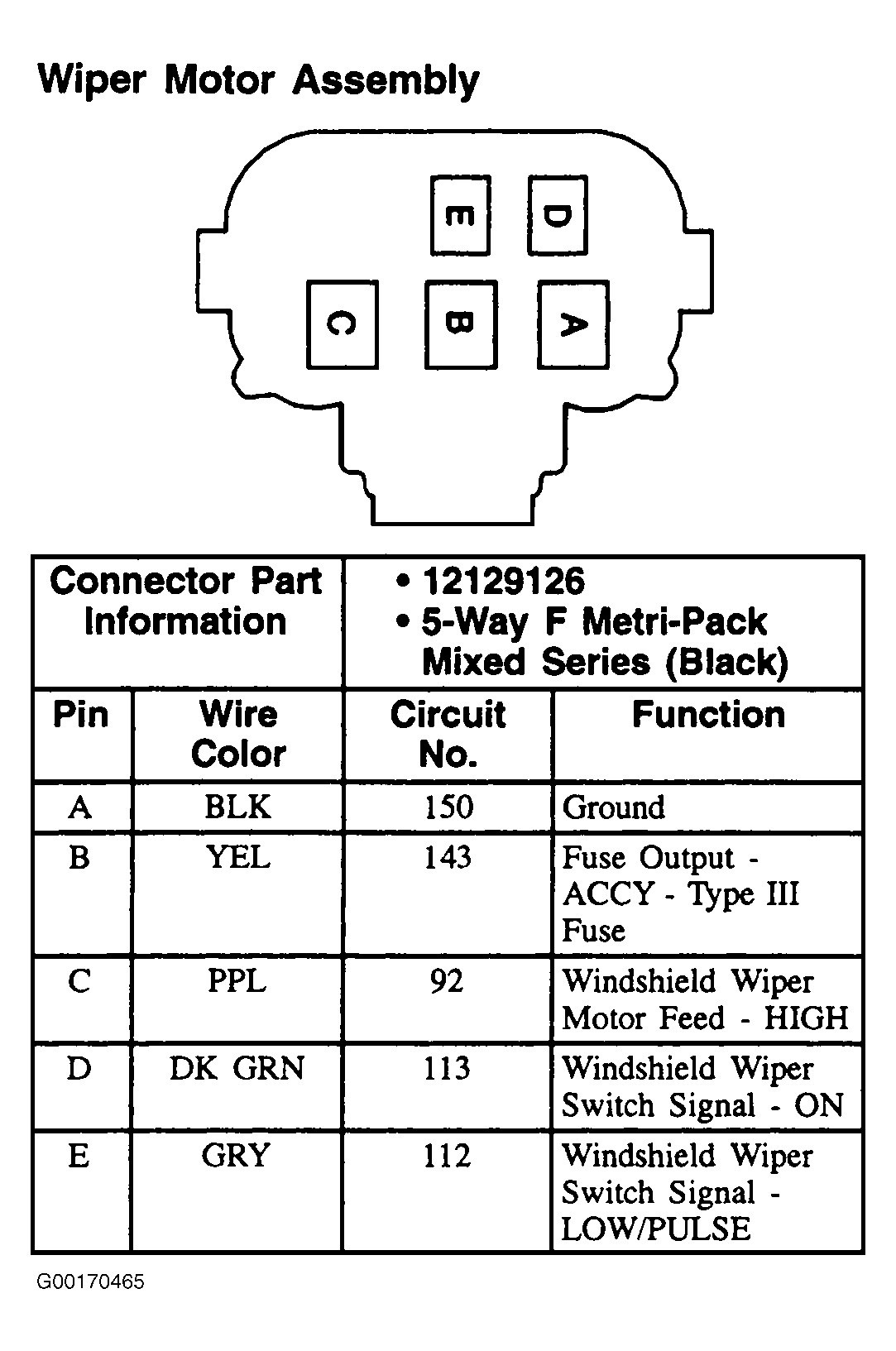

Fig 1: Wiper Motor Assembly (Cutlass & Malibu) - 5-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
