Pcm Connectors (Cutlass)

Fig 1: PCM 80-Pin Connector - Terminal Identification

Courtesy of GENERAL MOTORS CORP.

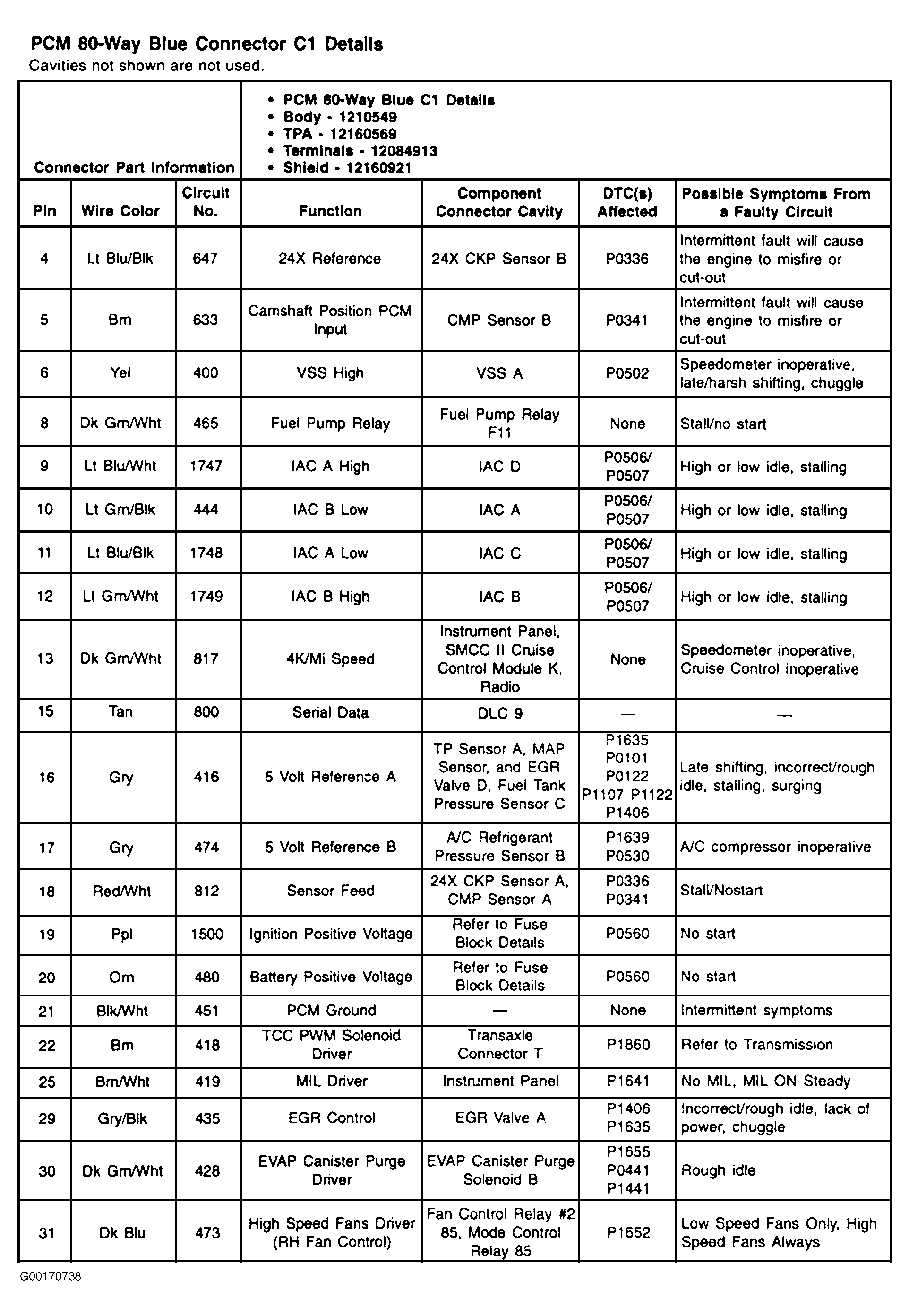

Fig 2: PCM 80-Pin Connector C1 (Blue) - Legend (Cutlass) - (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

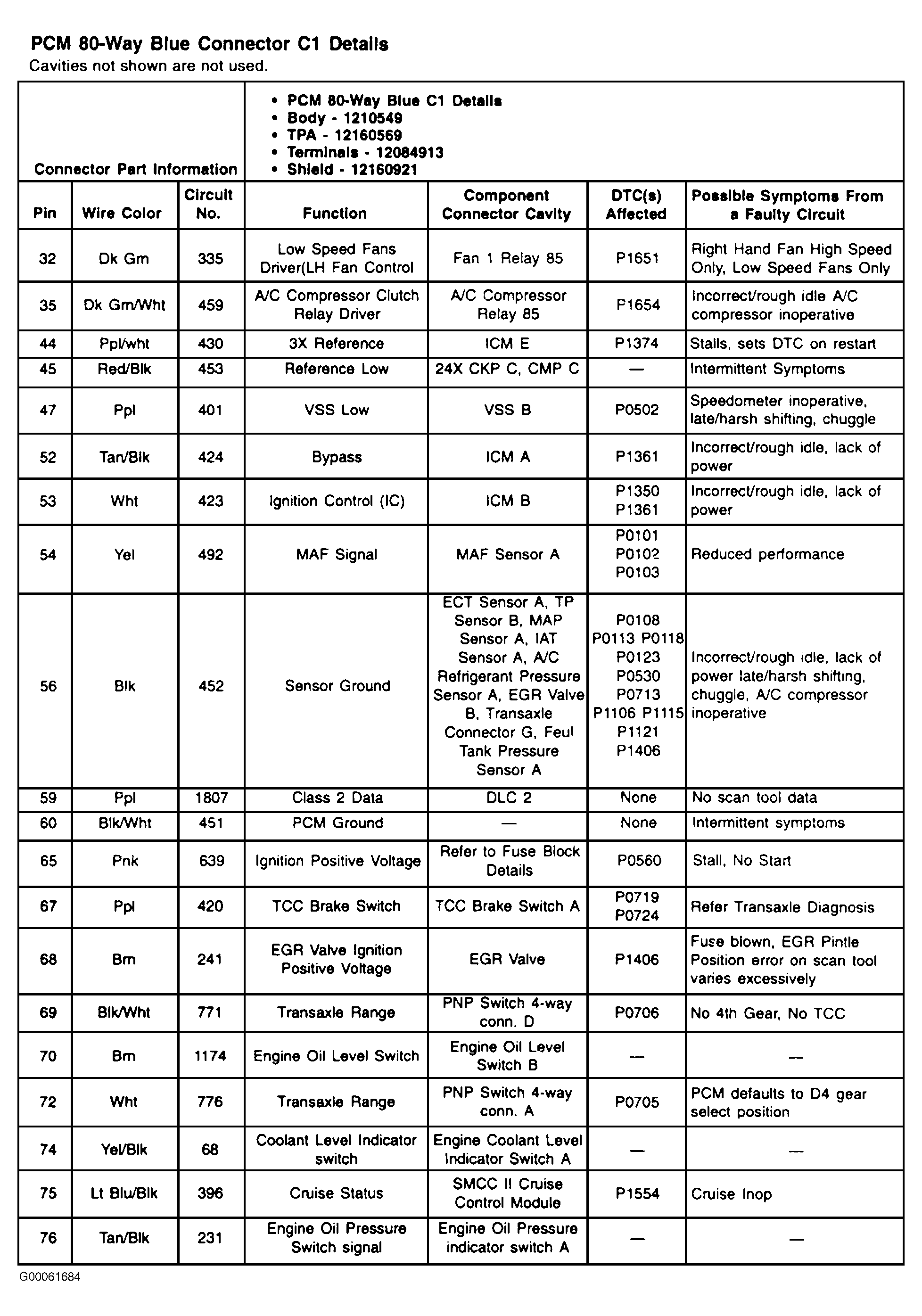

Fig 3: PCM 80-Pin Connector C1 (Blue) - Legend (Cutlass) - (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

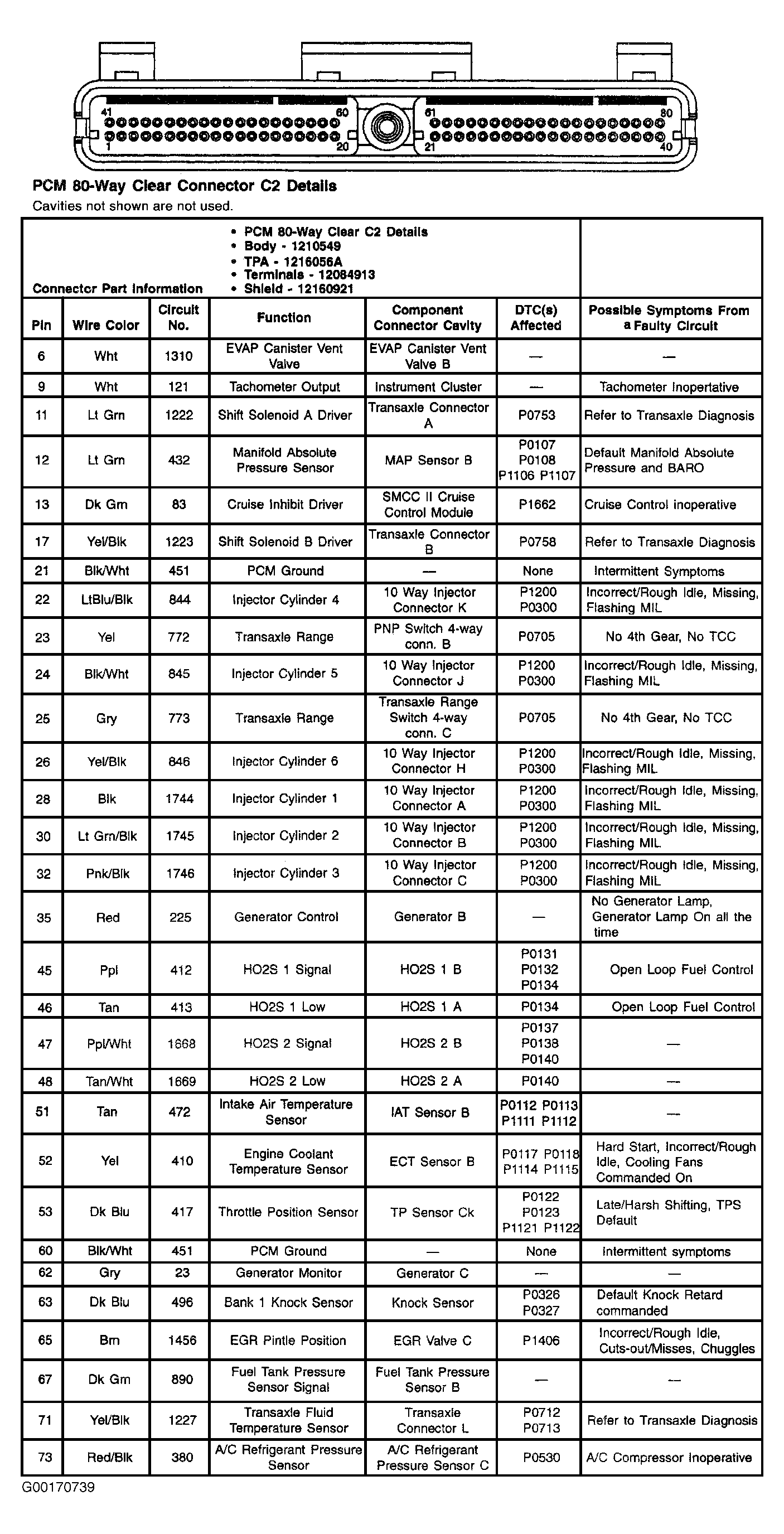

Fig 4: PCM 80-Pin Connector C2 (Clear) - Legend (Cutlass)

Courtesy of GENERAL MOTORS CORP.
