Connector Terminal Identification
>>
A/C Compressor Clutch
>>
Cutlass & MALIBU
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Cutlass & MALIBU

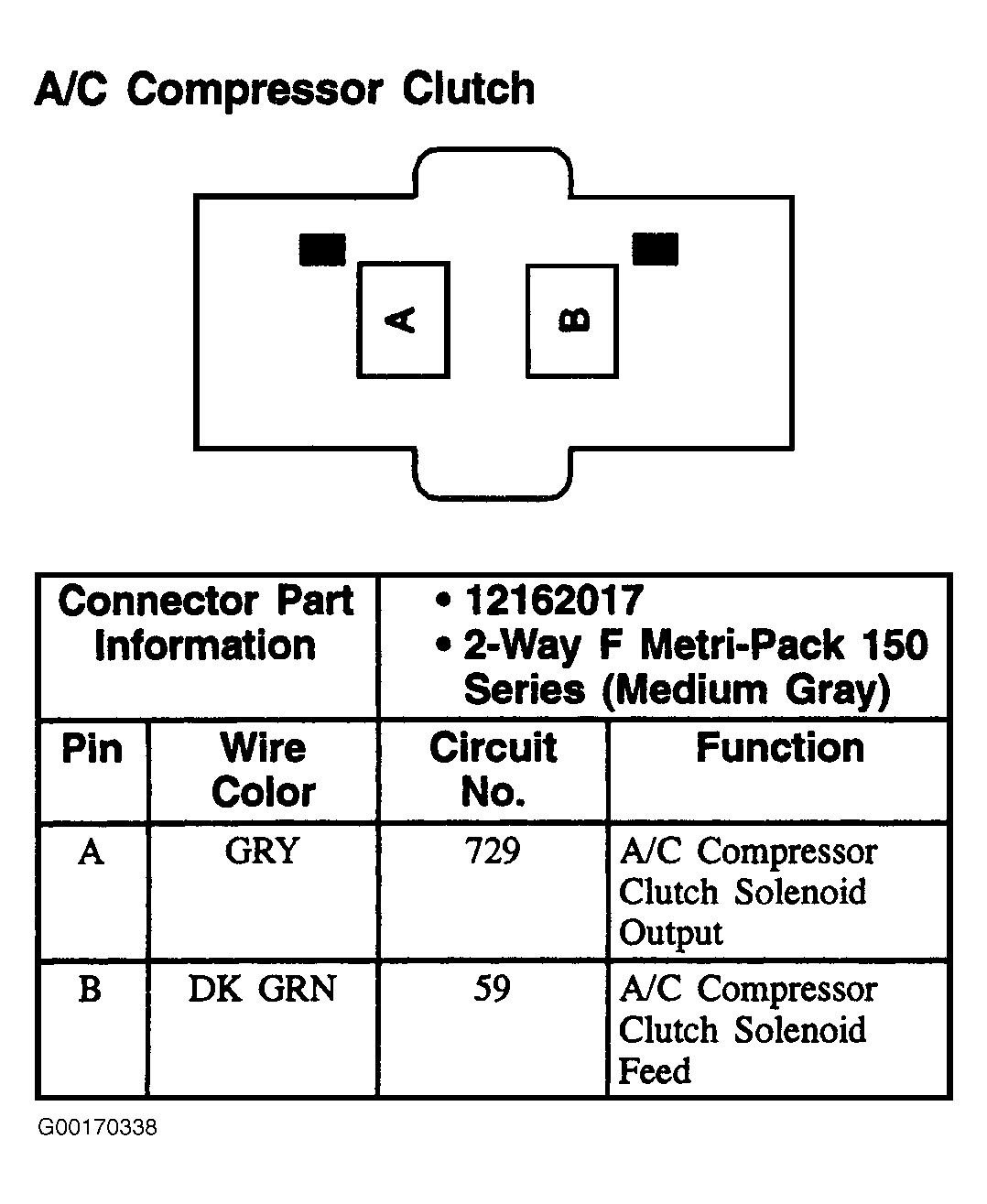

Fig 1: A/C Compressor Clutch (Cutlass & Malibu) - 2-Pin Connector (Medium Gray)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
