ACHIEVA, Grand Am & Skylark

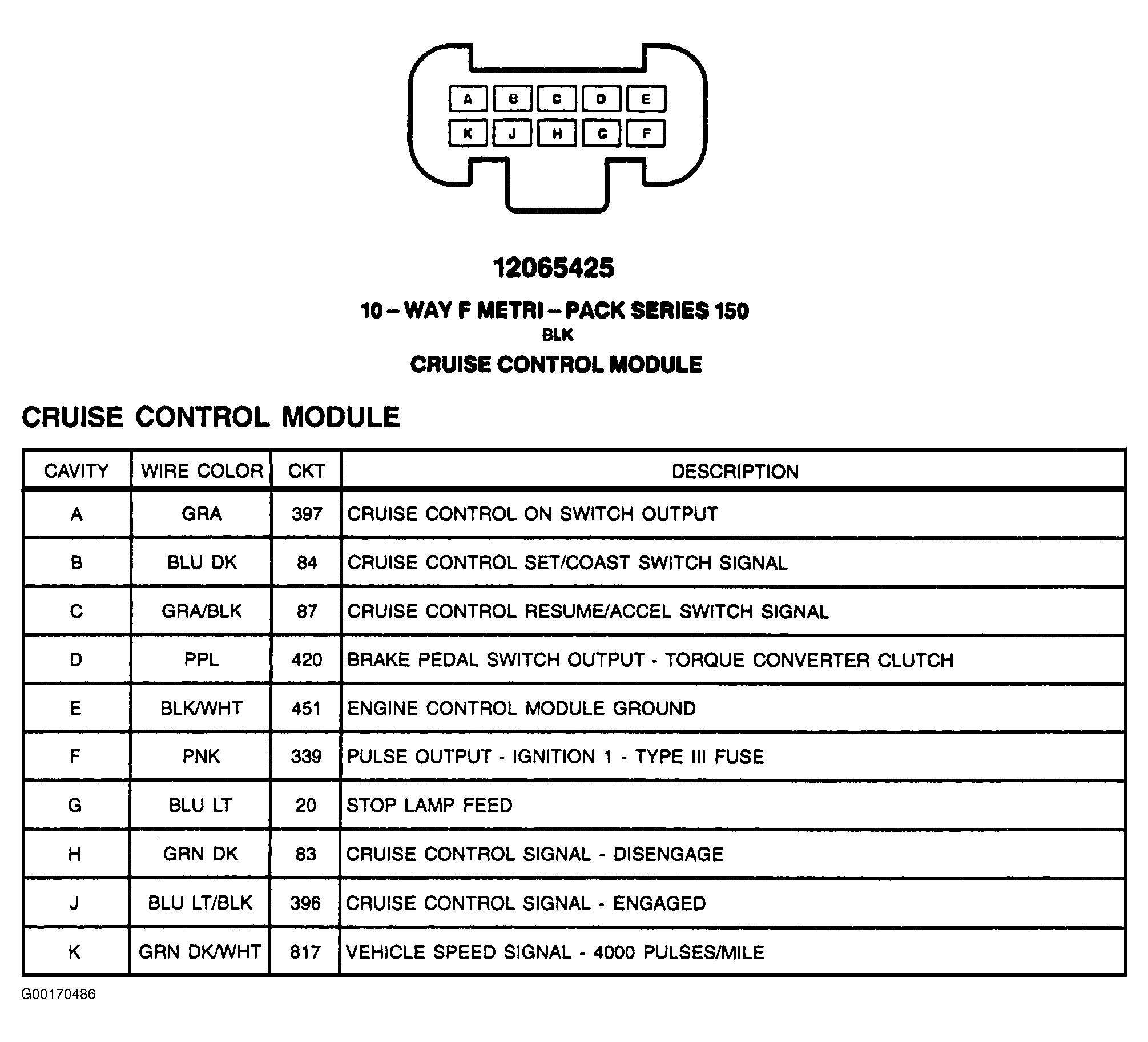

Fig 1: Cruise Control Module (Achieva, Grand Am & Skylark) - 10-Pin Connector (Black)
G00170486Courtesy of GENERAL MOTORS CORP.
