Headlamp Switch (BUICK)

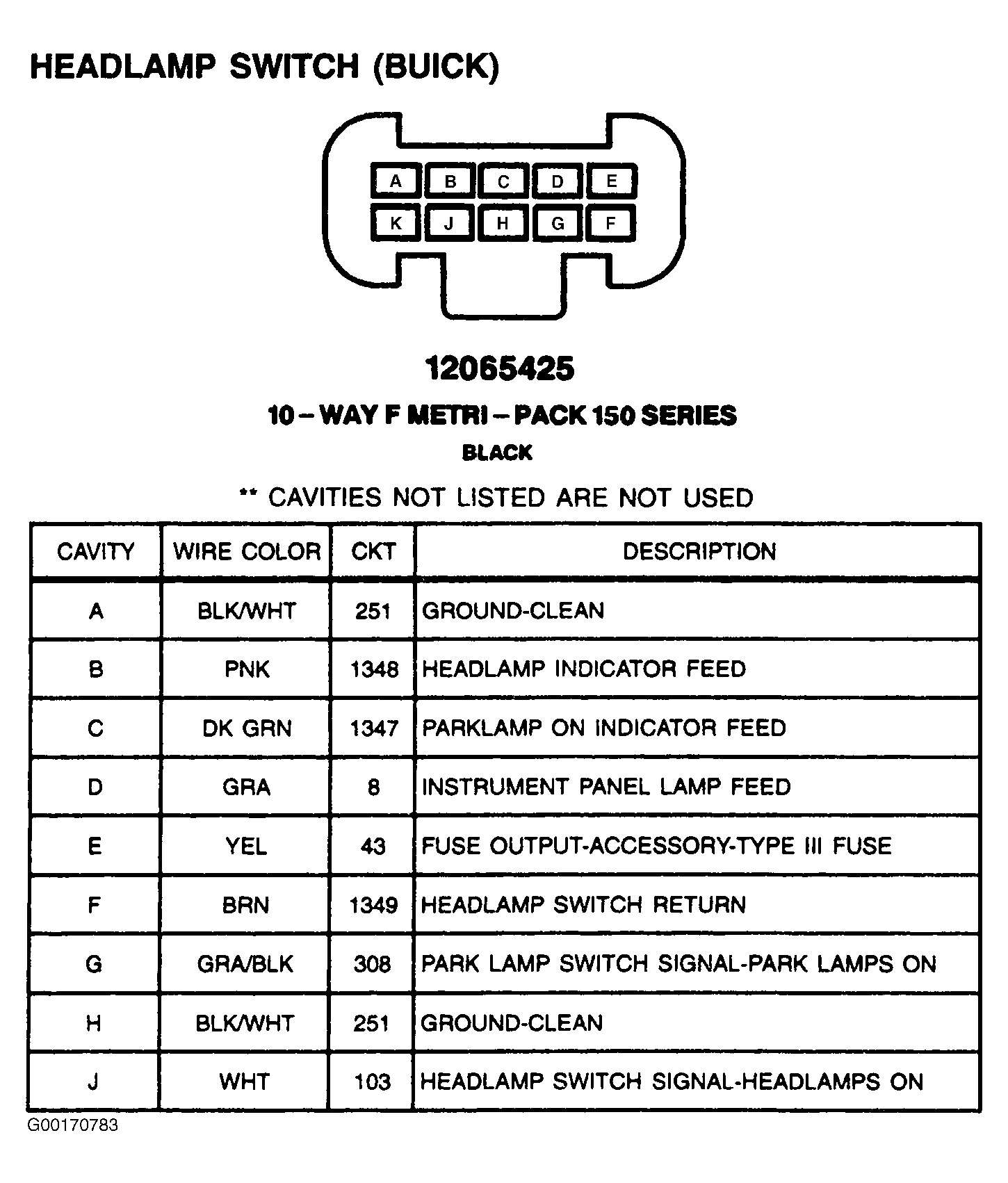

Fig 1: Headlamp Switch (Buick) - 10-Pin Connector (Black)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
