Adaptive Lamp Monitor Control Module C1

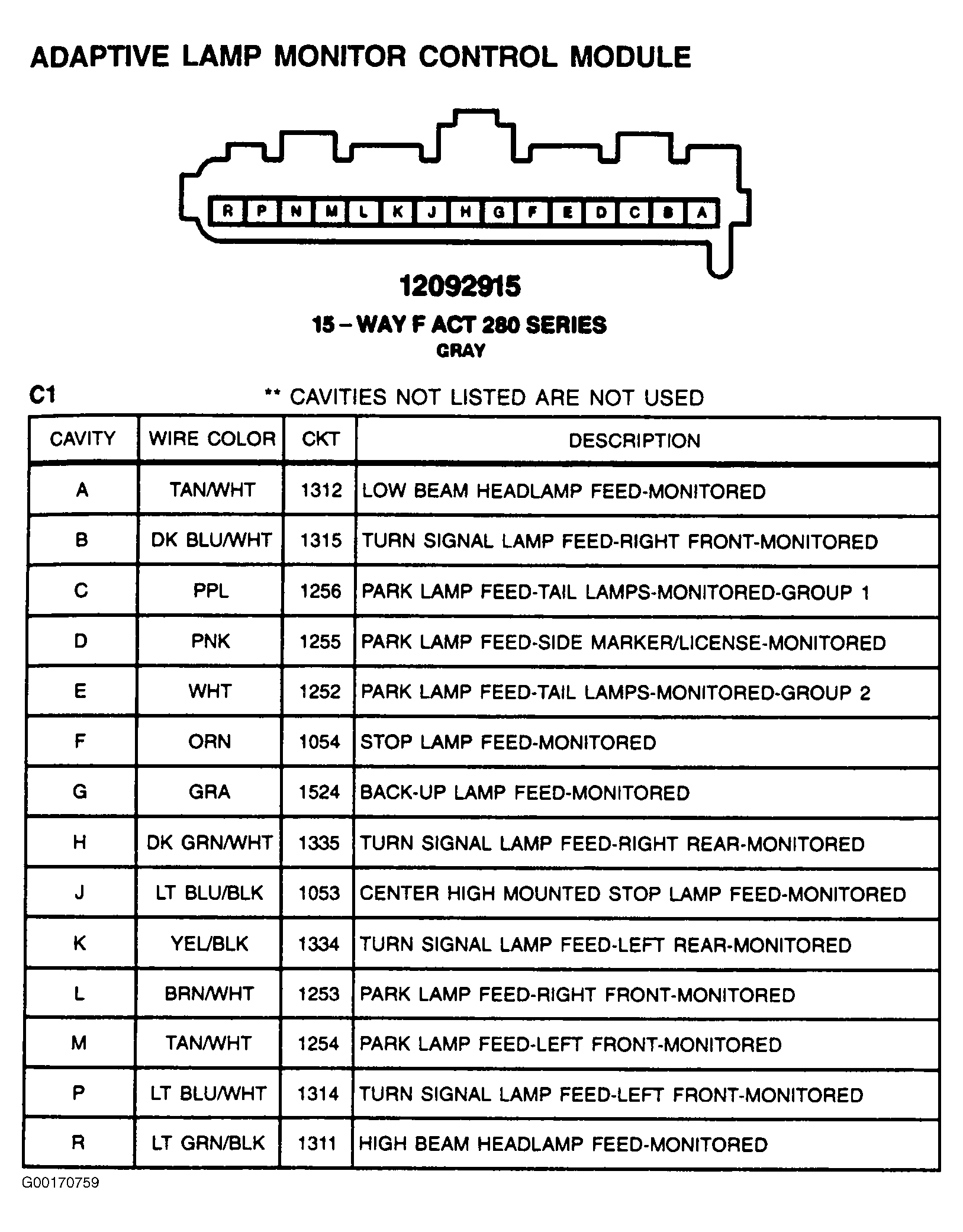

Fig 1: Adaptive Lamp Monitor Control Module C1 - 15-Pin Connector (Gray)
G00170759Courtesy of GENERAL MOTORS CORP.
